Connector Identification

For electrical connector and terminal identification for various components, see Fig 1-Fig 7 .

Fig 1: Electrical Connector Terminal Identification At Air Bag Sensor Assembly Electrical Connector A20

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

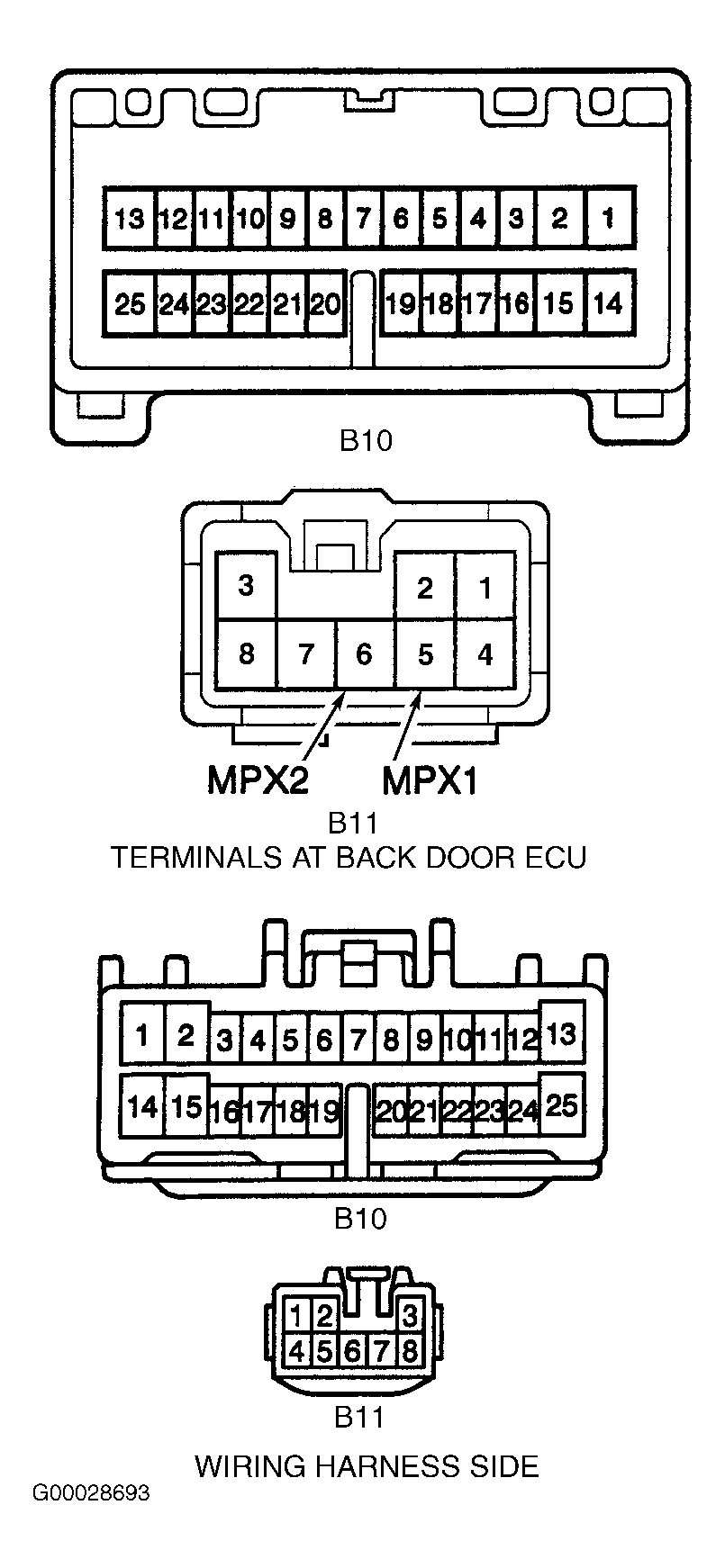

Fig 2: Electrical Connector Terminal Identification At Back Door Electronic Control Unit & Wiring Harness Side Of Electrical Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

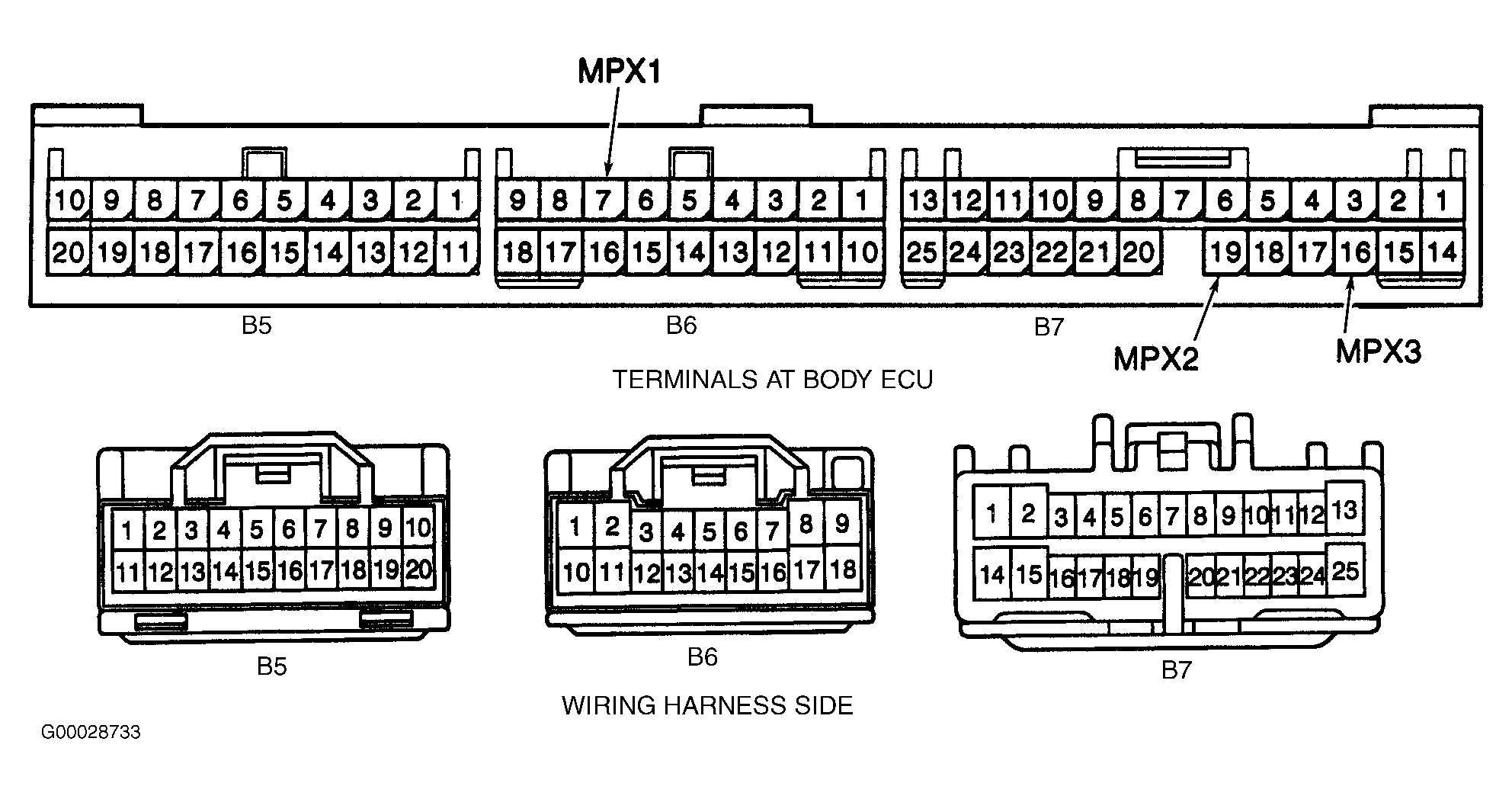

Fig 3: Electrical Connector Terminal Identification At Body Electronic Control Unit & Wiring Harness Side Of Electrical Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

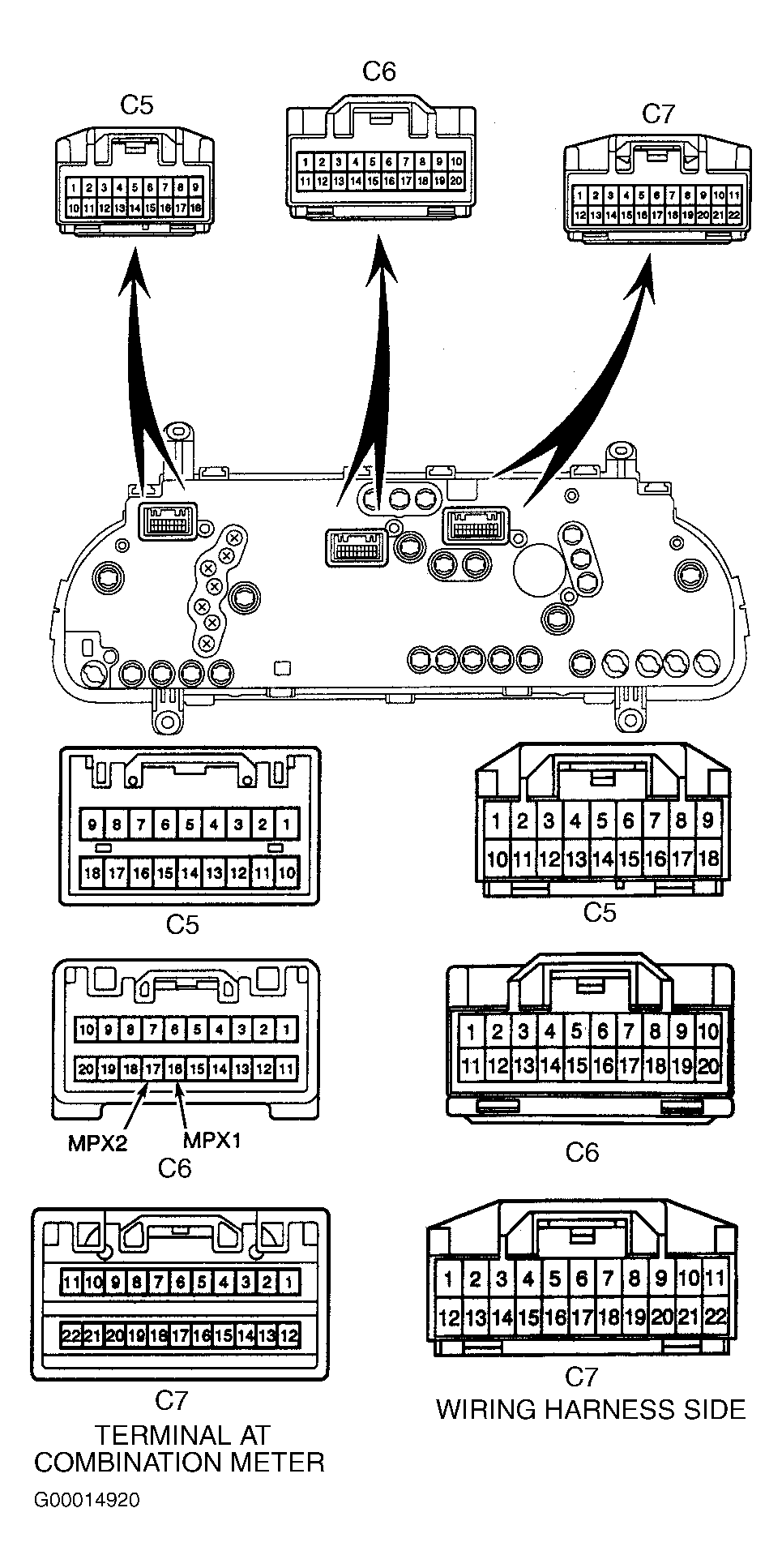

Fig 4: Electrical Connector Terminal Identification At Combination Meter & Wiring Harness Side Of Electrical Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

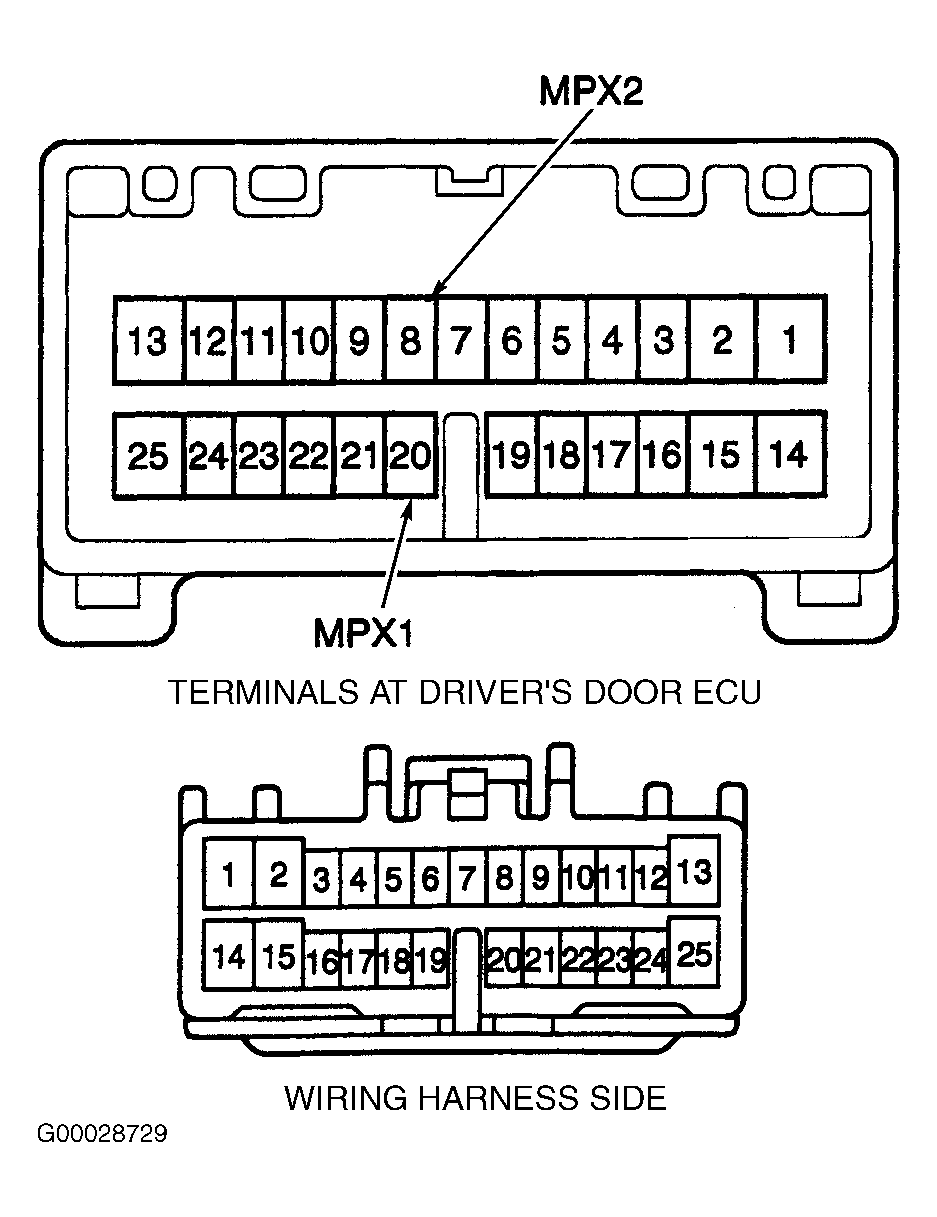

Fig 5: Electrical Connector Terminal Identification At Driver's Door Electronic Control Unit & Wiring Harness Side Of Electrical Connector

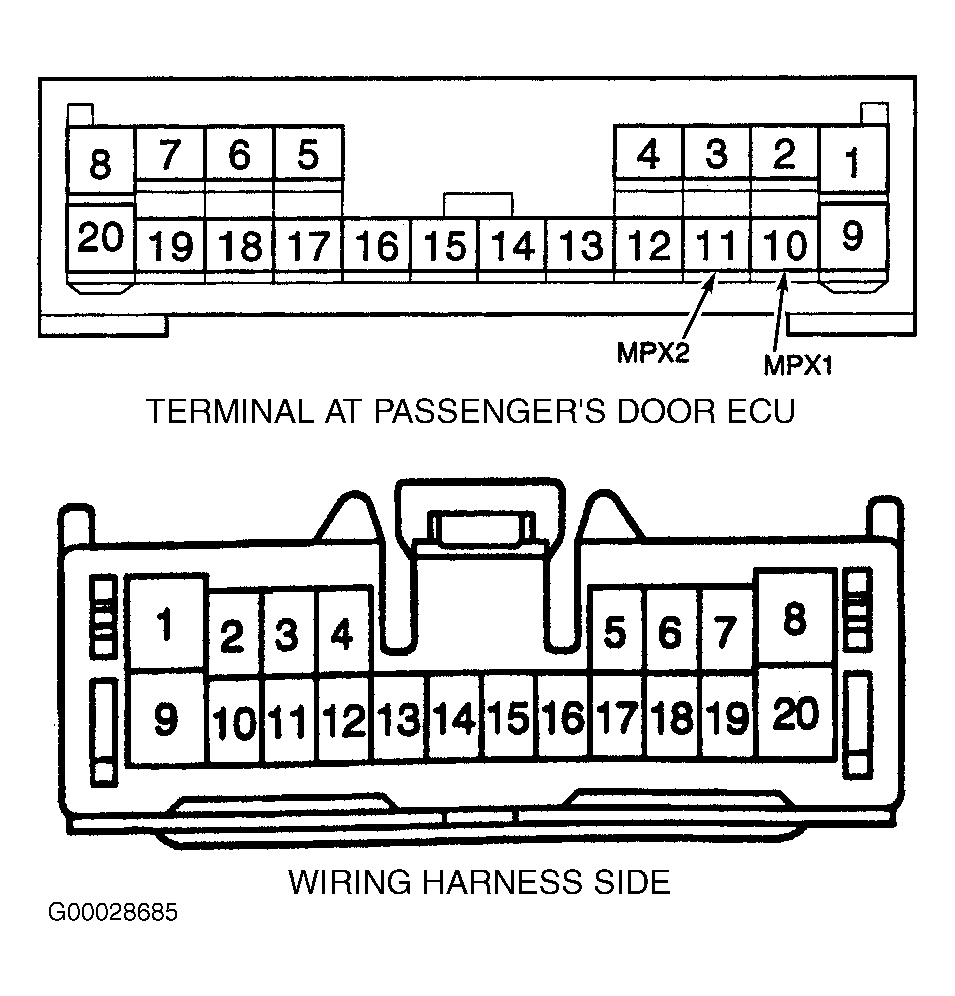

Fig 6: Electrical Connector Terminal Identification At Passenger's Door Electronic Control Unit & Wiring Harness Side Of Electrical Connector

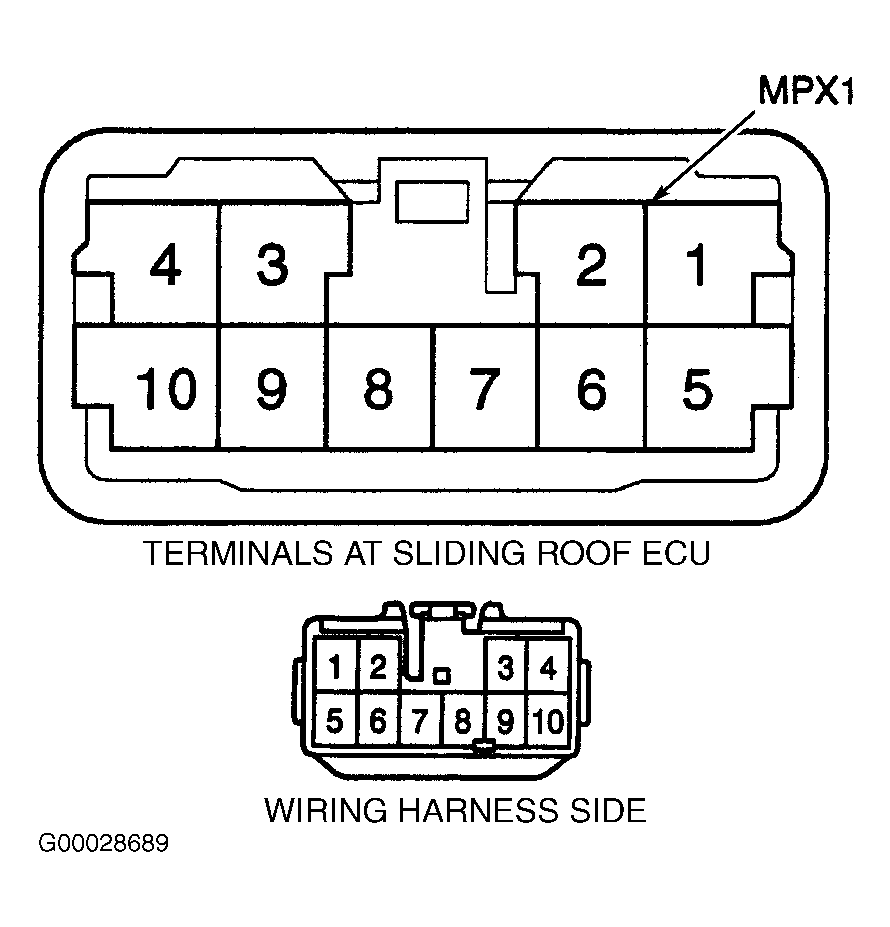

Fig 7: Electrical Connector Terminal Identification At Sliding Roof Electronic Control Unit & Wiring Harness Side Of Electrical Connector
