Front Brake Speed Sensor: Removal

  1. REMOVE FRONT WHEEL
    1. Torque: 110 Nm (1,150 kgf.cm, 83 ft.Ibf)
  2. DISCONNECT SPEED SENSOR CONNECTOR
  3. REMOVE SPEED SENSOR
    1. Remove the clips and 3 clamp bolts holding the sensor harness from the frame, upper arm and steering knuckle.
      1. Torque: 8.0 Nm (82 kgfcm, 71 in.lbf)
    2. Remove the bolt and speed sensor from the steering knuckle.
      1. Torque: 8.0 Nm (82 kgfcm, 71 in.lbf)

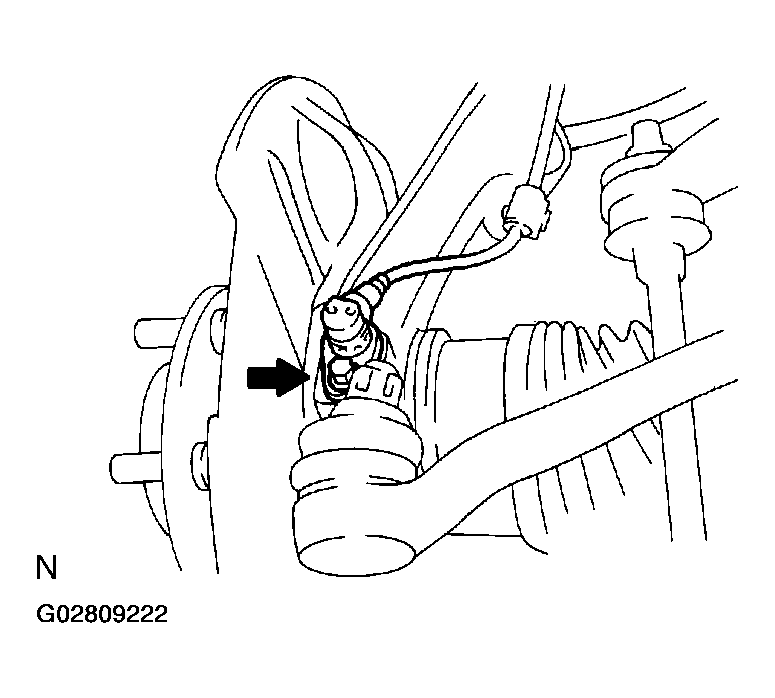

      Fig 1: Locating Speed Sensor Connector
      G02809222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
