Rear Interior Light
- Rear interior light is located near center of headliner and may also be referred to as dome light. See Figure. Remove necessary components for access to rear interior light and disconnect electrical connector at rear interior light.

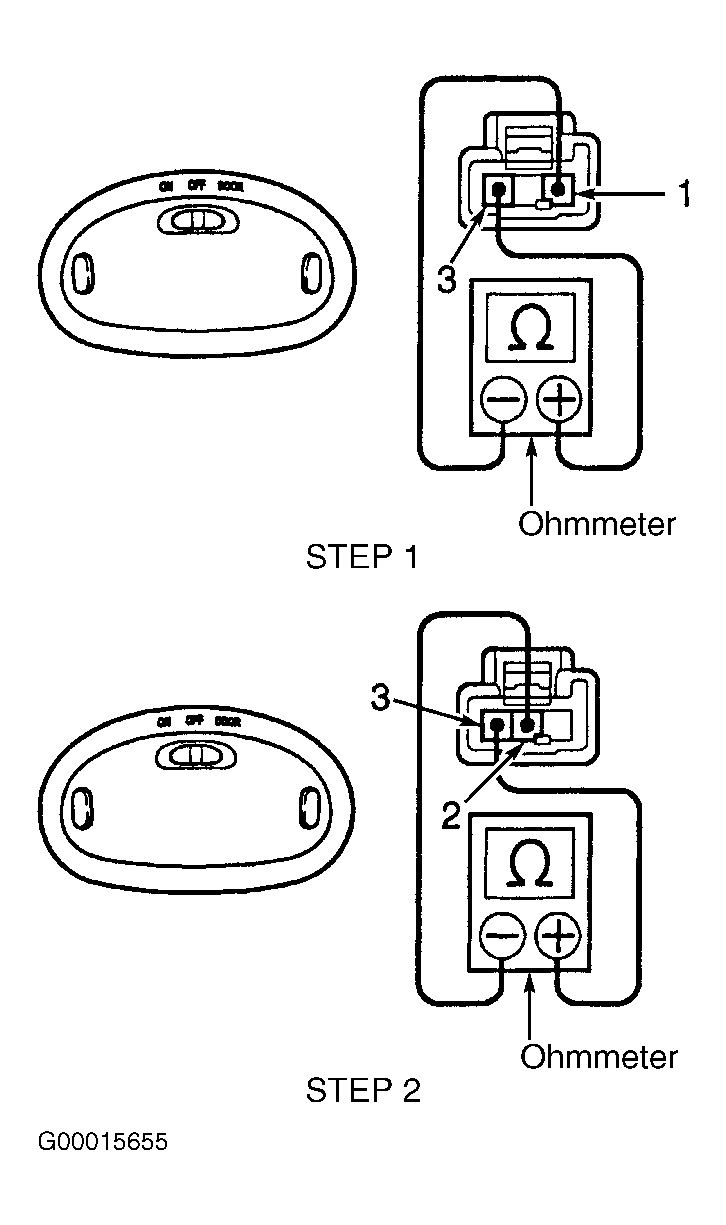

- Using ohmmeter, check that continuity exists between terminals No. 1 and 3 with rear interior light switch in ON position. Perform STEP 1 in illustration. See Fig 1.
- Using ohmmeter, check that continuity exists between terminals No. 2 and 3 with rear interior light switch in DOOR position and that no continuity exists with rear interior light switch in OFF position. Perform STEP 2 in illustration. See Fig 1. Replace light bulb or rear personal light if continuity is not as specified.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
