Front Personal Light

  1. Front personal light is located on overhead console. See Figure. Remove overhead console and disconnect electrical connector for overhead console.
  2. Using ohmmeter, check that continuity exists between specified terminals with front personal light switch in ON position. See Fig 1. Replace bulb or front personal light if continuity does not exist.

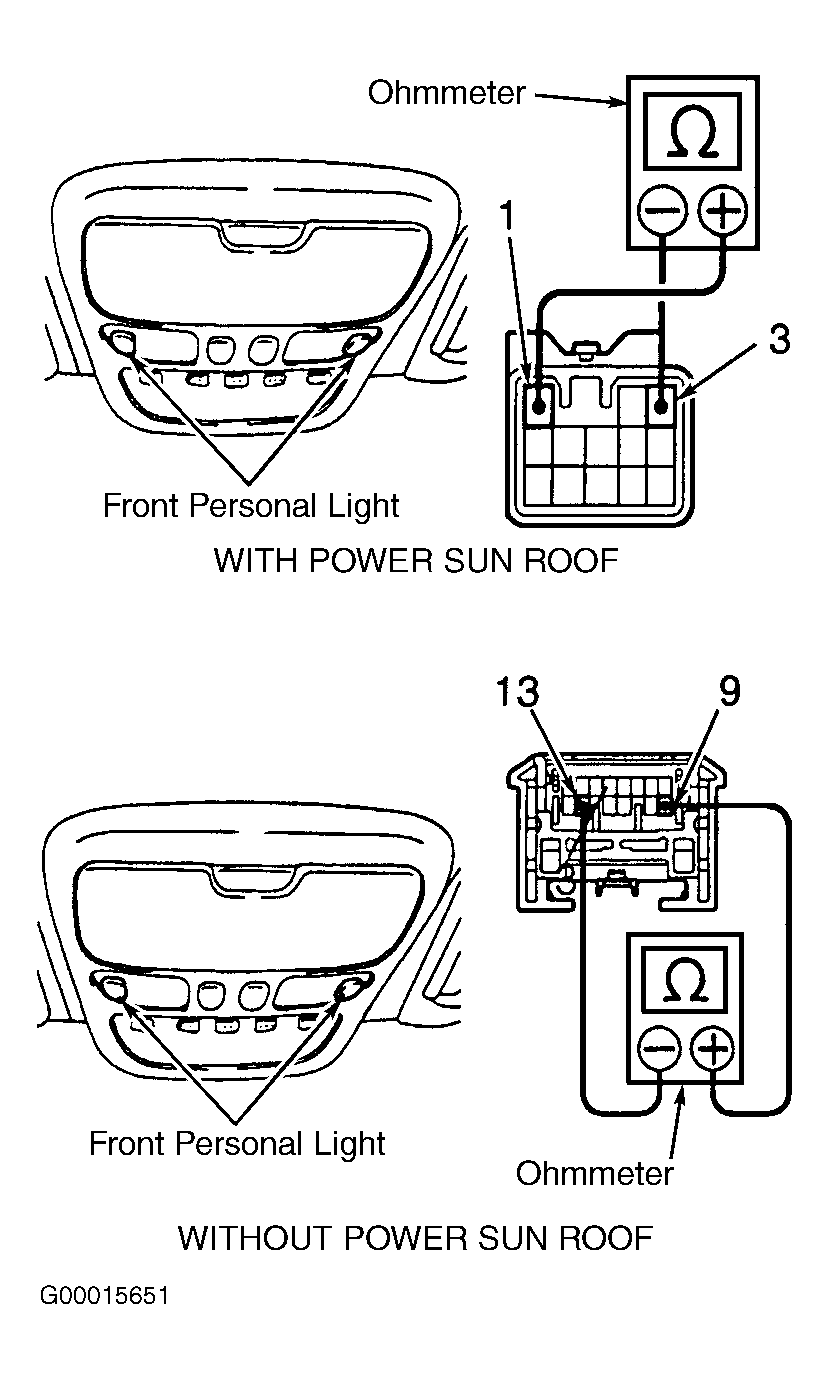

    Fig 1: Testing Front Personal Light
    G00015651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
