Back Door Power Window Motor

  1. Remove door panel for access to electrical connector at back door power window motor. Disconnect electrical connector for back door power window motor.
  2. Using jumper wires, apply battery voltage and ground to terminals No. 1 and 2 on electrical connector for back door power window motor and check that back door power window motor rotates counterclockwise. Perform STEP 1 in illustration. See Fig 1.
  3. Reverse jumper wires so polarity is reversed and check that back door power window motor rotates clockwise. Perform STEP 2 in illustration. See Fig 1. Replace back door power window motor if operation is not as specified.

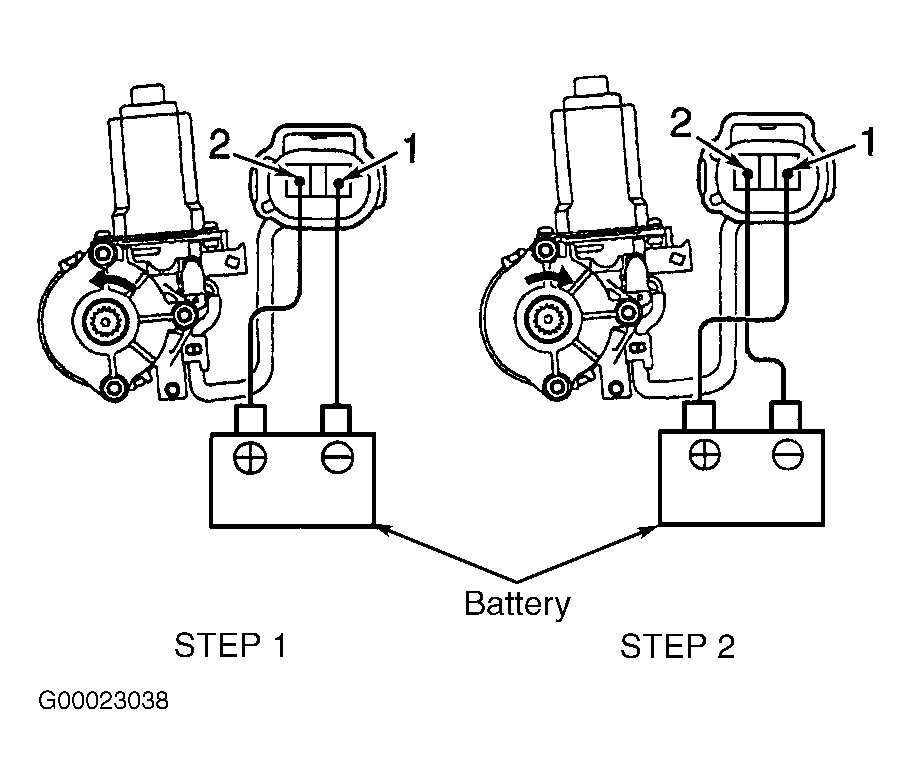

    Fig 1: Testing Back Door Power Window Motor
    G00023038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
