Shift & Select Lever: Reassembly

  1. Check shift and select lever shaft and components for wear or damage. Replace as needed. Apply multipurpose grease to shift and select lever shaft. Install boot to control shaft cover. Install shift and select lever or control shaft to control shaft cover. Install snap ring.
  2. Install No. 1 spring seat and No. 1 compression spring. Ensure No. 1 select spring seat slides smoothly. Install shift interlock plate and No. 1 shift inner lever. Drive roll pin into shift inner lever. Ensure shift interlock plate turns smoothly. See Fig 1.
  3. Install No. 2 shift inner lever, No. 2 spring and No. 2 select spring seat. Install snap ring. Drive roll pin into No. 2 shift inner lever. Ensure No. 2 select spring seat slides smoothly.

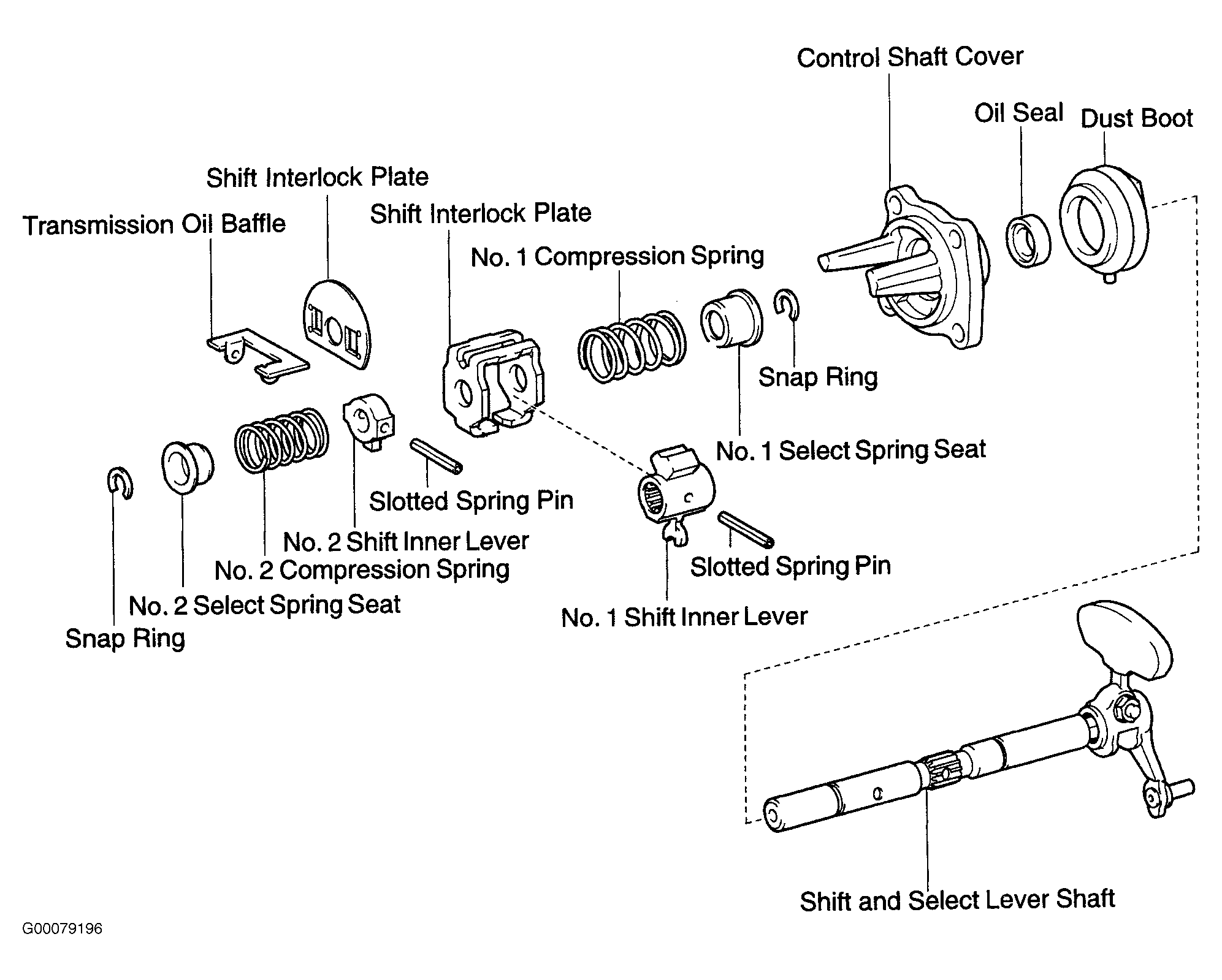

Fig 1: Exploded View Of Shift & Select Lever Assembly
G00079196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
