Refrigerant Line: Replacement
WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- Discharge Refrigerant From Refrigeration System
- Replace Faulty Tube Or Hose NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

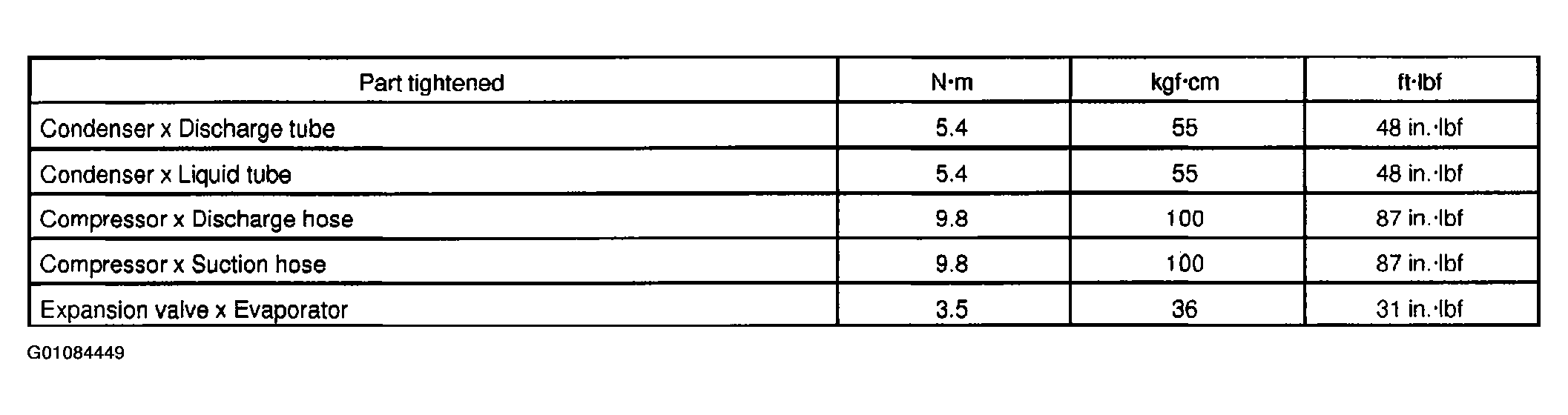

- Torque Connections To Specified Torque NOTE: Connections should not be torqued tighter than the specified. See Fig 1.
- Evacuate Air In Refrigeration System & Charge With Refrigerant
Specified Amount: 500 +/- 50 g (17.64 +/- 1.76 oz.)
- Inspect For Leakage Of Refrigerant
Using a gas leak detector, check for leakage of refrigerant.
- Inspect Air Conditioner Operation
