Refrigerant Line: Location

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

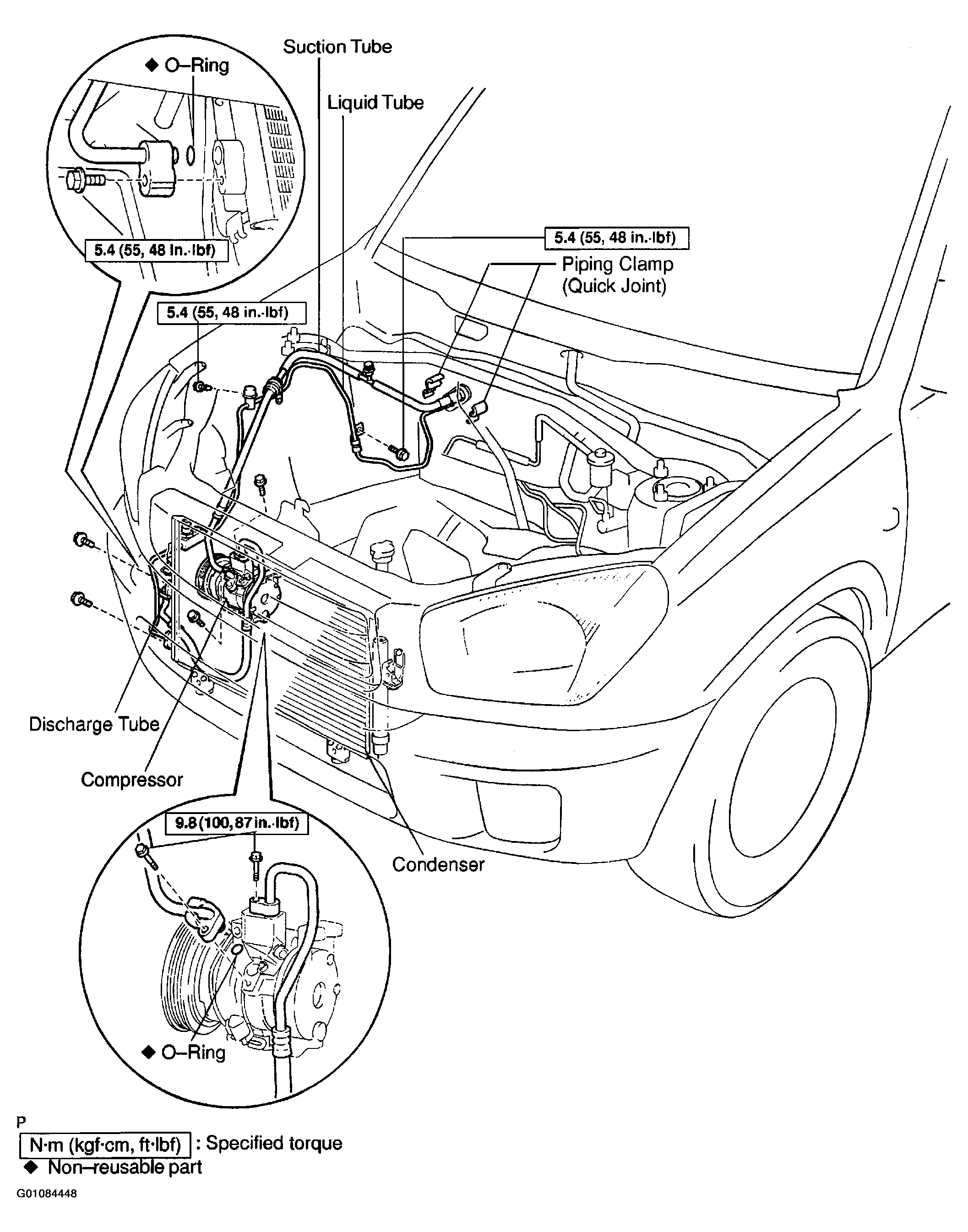

Fig 1: Locating Air Conditioning Refrigerant Line
G01084448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
