Pressure Switch: Installation

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install Pressure Switch
    1. Coat a new O-ring with compressor oil.
    2. Install the pressure switch to the liquid tube.
      1. Torque:  9.8 N.m (100 kgf.cm, 87 in.lbf)

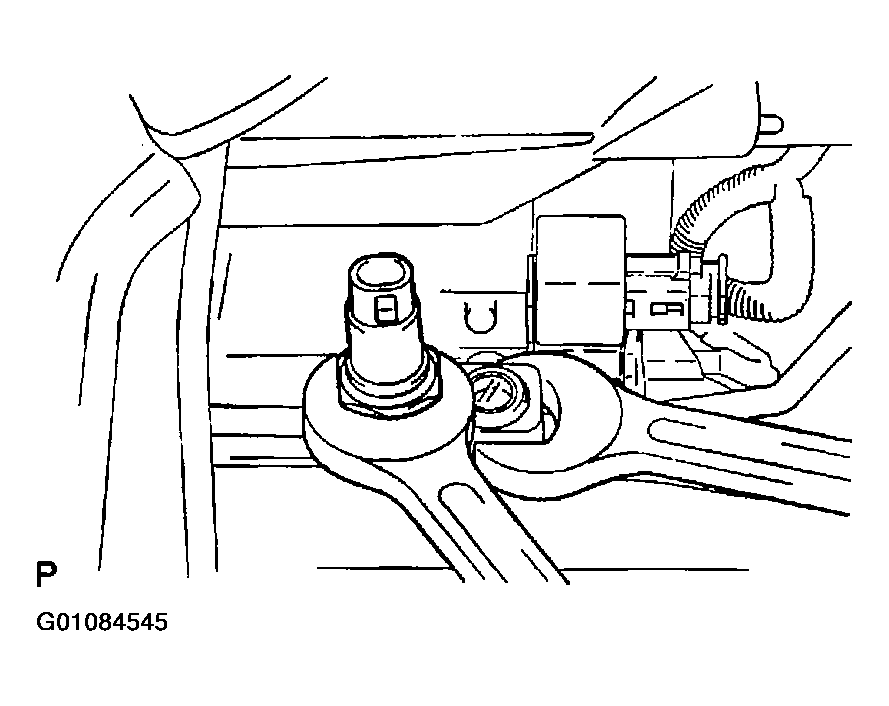

        2. Fig 1: Installing Pressure Switch
        G01084545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Charge Refrigerant To Refrigerant System  See CHARGING .
    1. Evacuate air from the refrigeration system.
    2. Charge system with refrigerant and inspect for leakage of refrigerant.
      1. Specified amount: 500 +/- 50 g (17.64 +/- 1.76 oz.)
