Heater Control Assembly: Reassembly

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Install Clock Integration Board
1. Install the clock plate with the 4 screws.

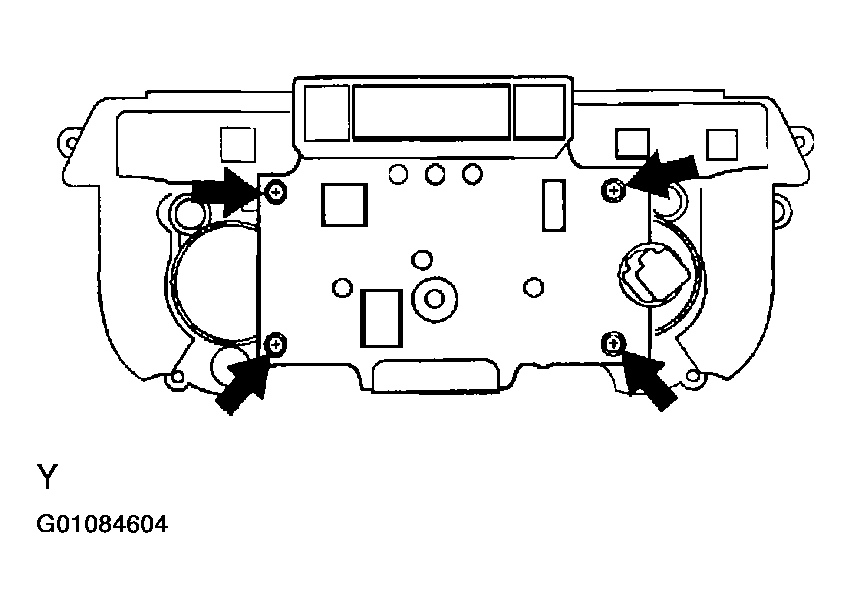

  Fig 1: Identifying Clock Integration Board Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the heater control switch cover with the 2 screws.

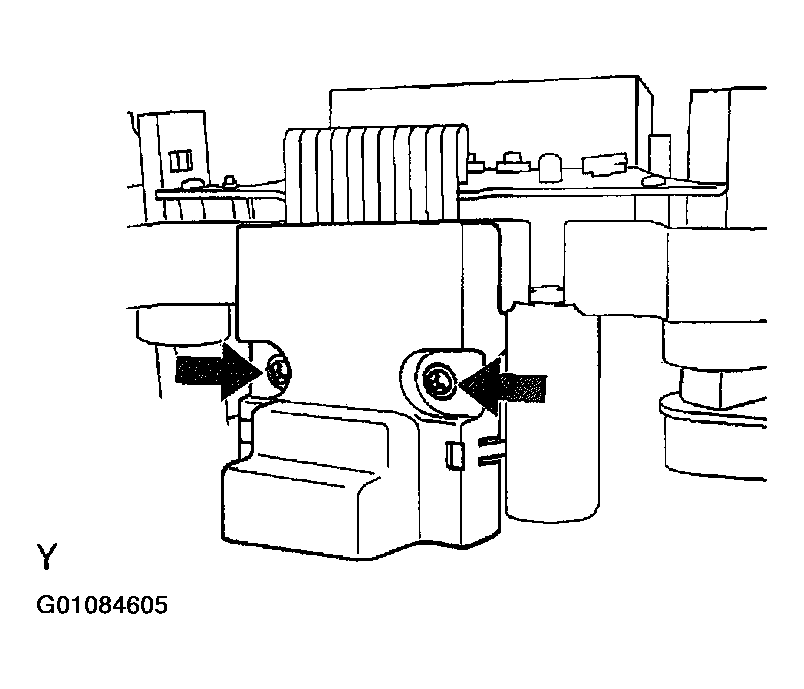

  Fig 2: Identifying Heater Control Switch Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Heater Control Name Plate
1. Install the 4 switch knobs to the heater control name plate.
2. Install the 3 knobs.
3. Install the heater control name plate and printed wire integration board with the 7 screws.

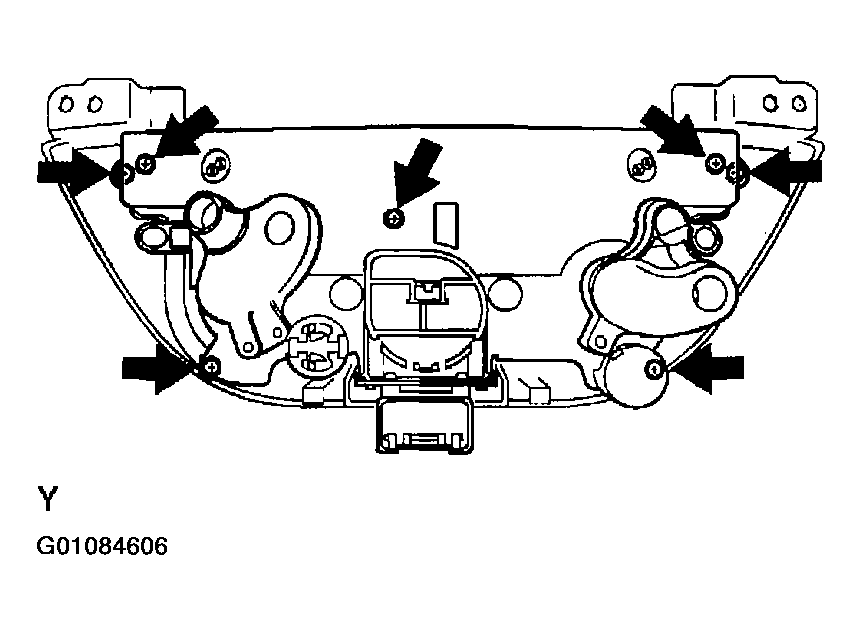

  Fig 3: Identifying Wire Integration Board Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Heater Control Cables
1. Install the inner cables as shown in Fig 4.

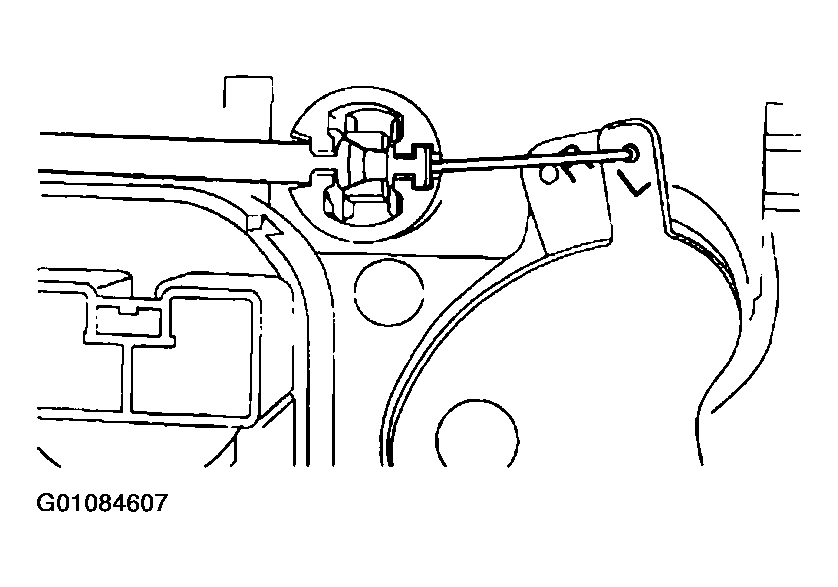

  Fig 4: Installing Heater Control Cables
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the outer cables.
