Heater Control Assembly: Inspection

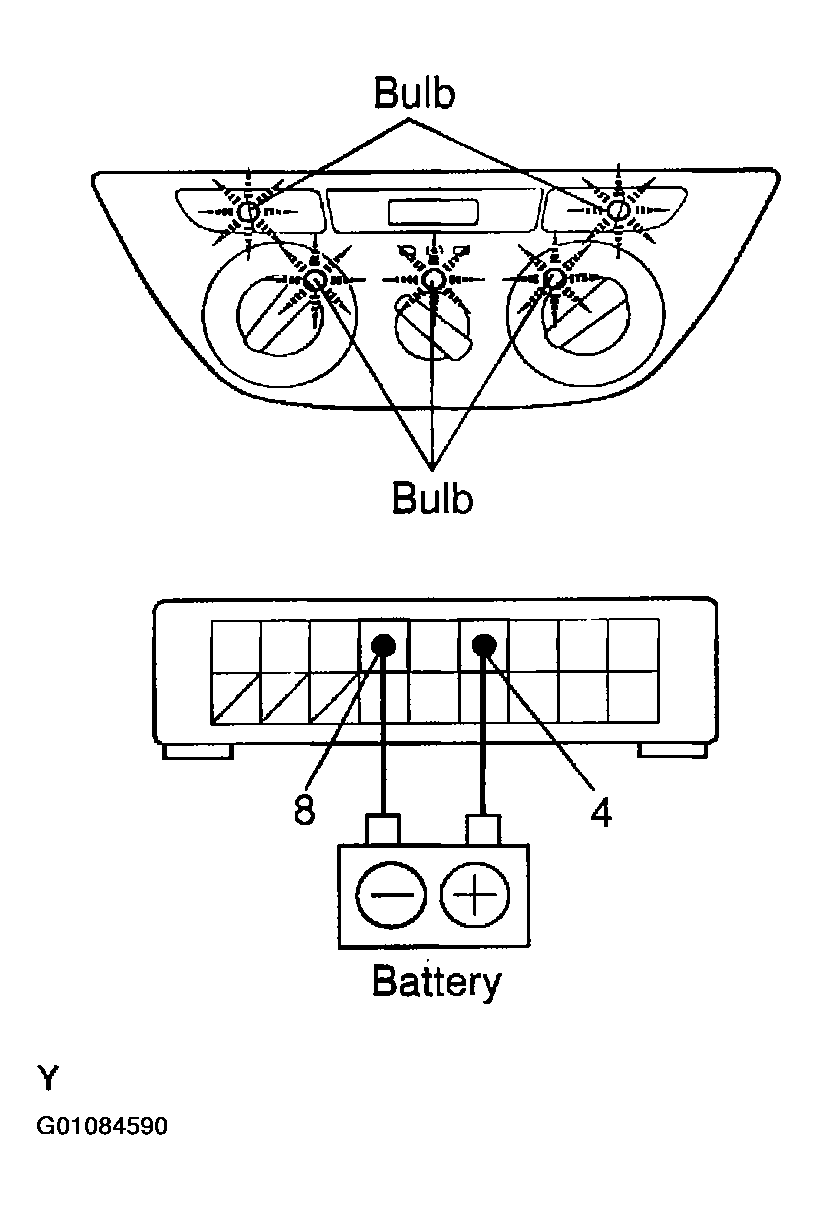

1. Connect the positive (+) lead from the battery to terminal 4 and negative (-) lead to terminal 6 then check that the illuminations light up.
   Fig 1: Checking Illuminations Light Up

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

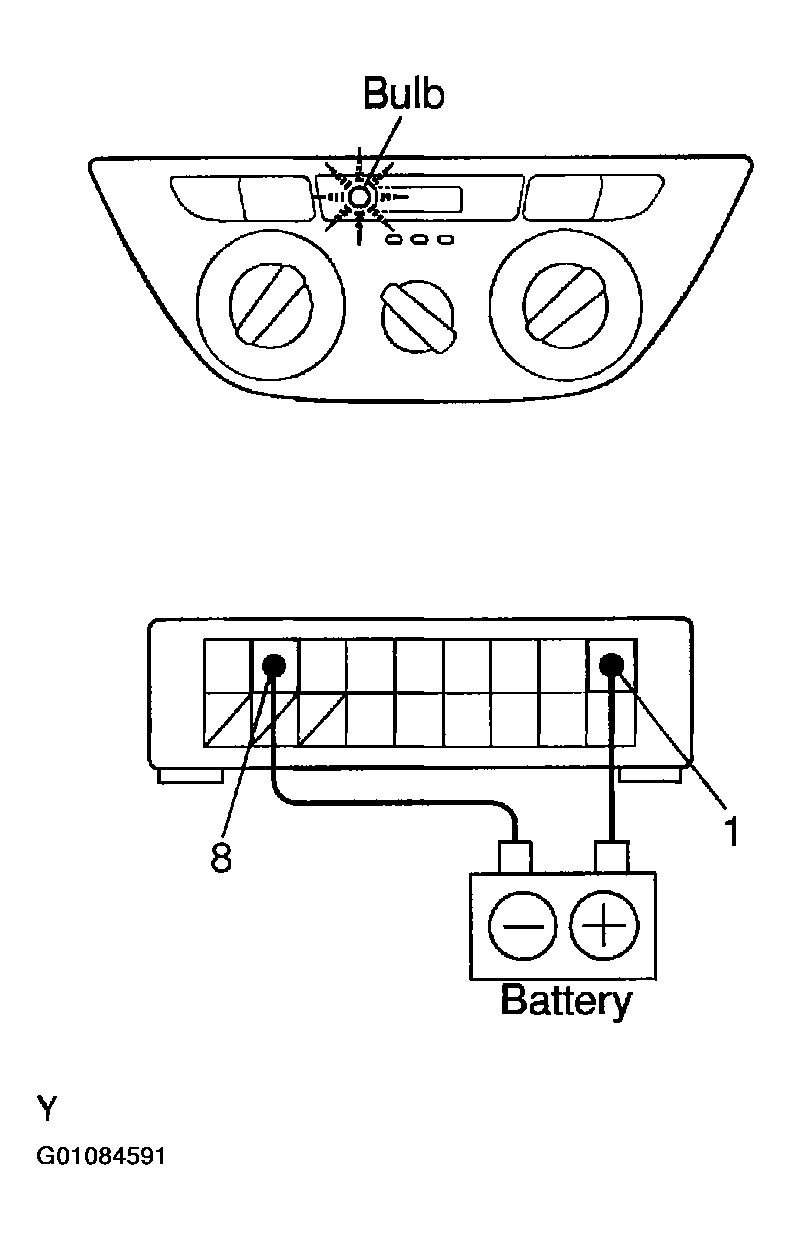

2. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 8 then check that the passenger side seat belt illumination lights up.
   Fig 2: Checking Passenger Side Seat Belt Light Illumination

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, check the faulty bulb.

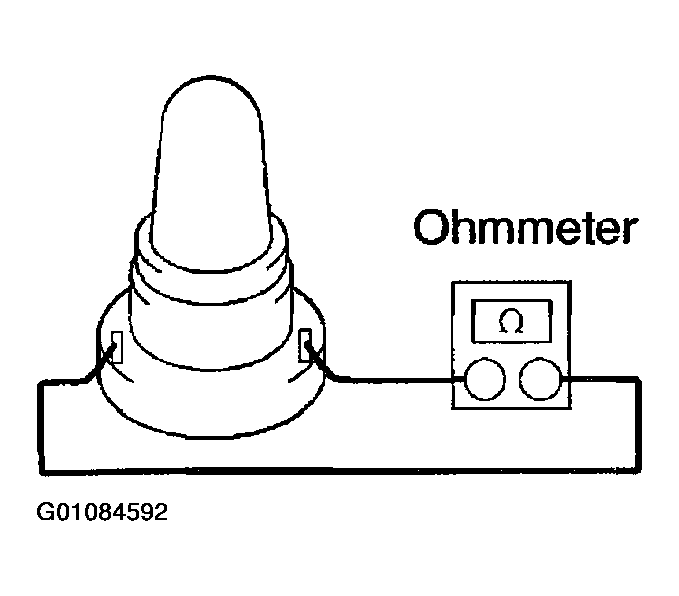

Using an ohmmeter, apply the tester as shown in Fig 3 to test for continuity.

If continuity exists, replace the heater control.

If no continuity exists, replace the bulb.

Fig 3: Testing Light Bulb For Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

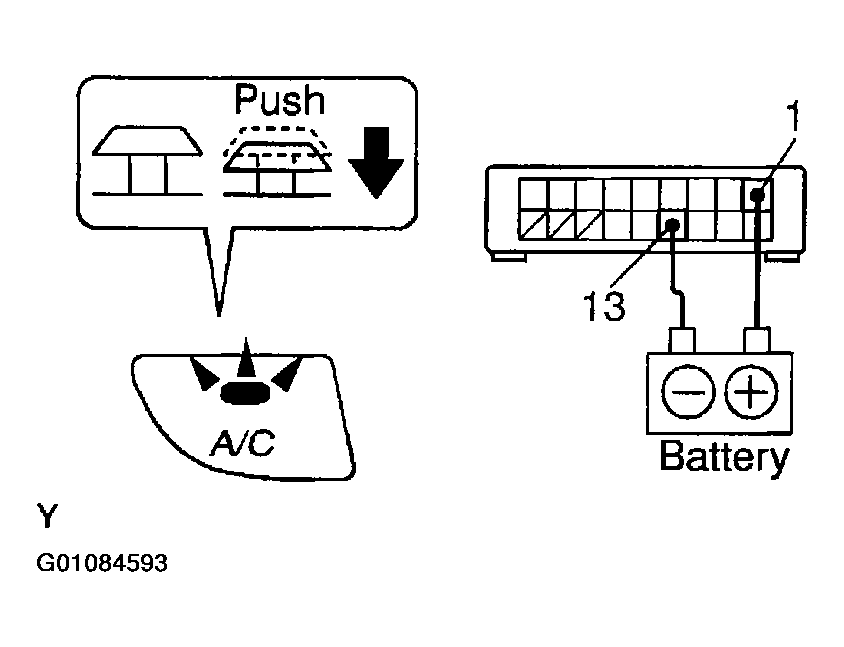

1. Connect the positive (+) lead from the battery to terminal No. 1 and negative (-) lead to terminal No. 13.
2. Push the A/C button in and then check that the A/C indicator lights up.
Fig 4: Inspecting A/C Switch Indicator Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the A/C switch.

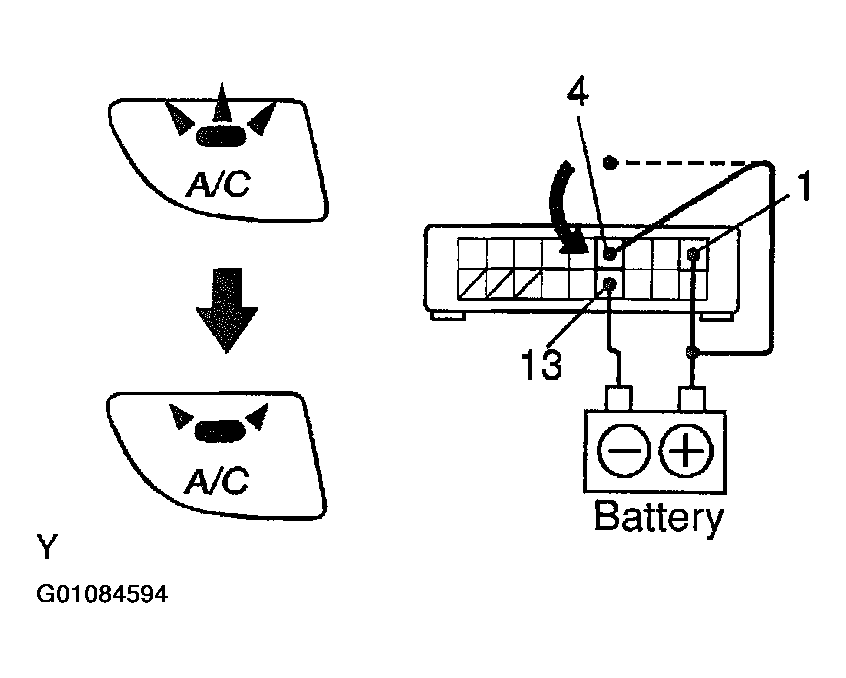

1. Connect the positive (+) lead from the battery to terminal No. 1 and negative (-) lead to terminal No. 13 while pressing the switch.
2. Connect the positive (+) lead from battery to terminal 4 and then check that the A/C indicator dims.
Fig 5: Inspecting A/C Switch Indicator Dimming Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the A/C switch.

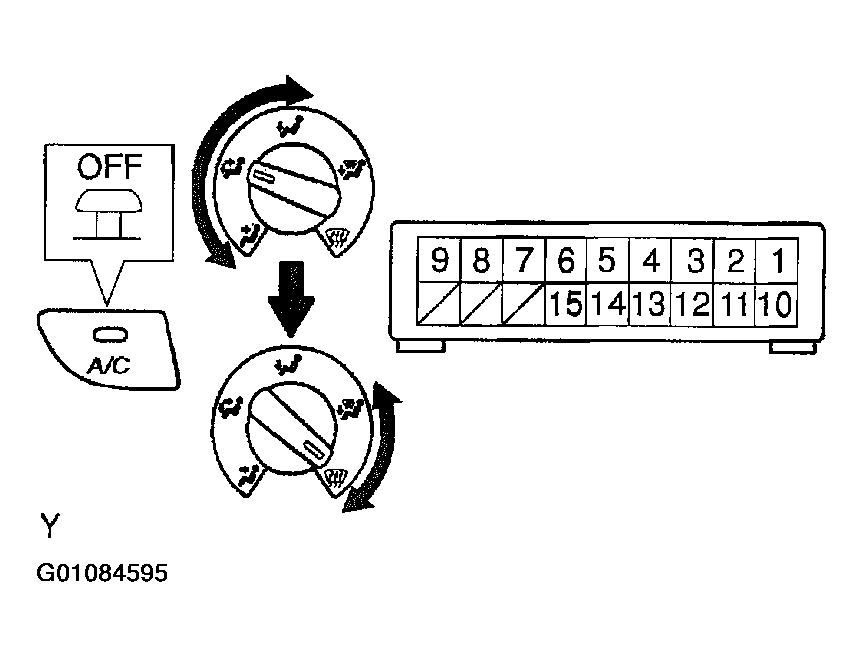

Fig 6: Displaying A/C Switch Control

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

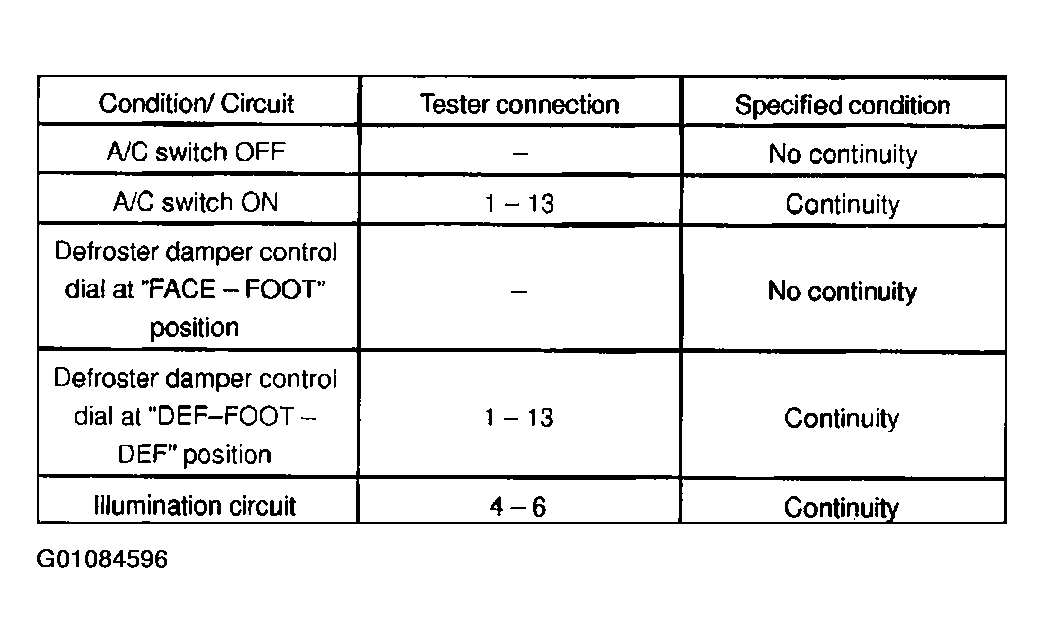

Fig 7: Inspecting A/C Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Switch continuity: If continuity is not as specified, replace the A/C switch.

Illumination circuit: If continuity is not as specified, replace the bulb.

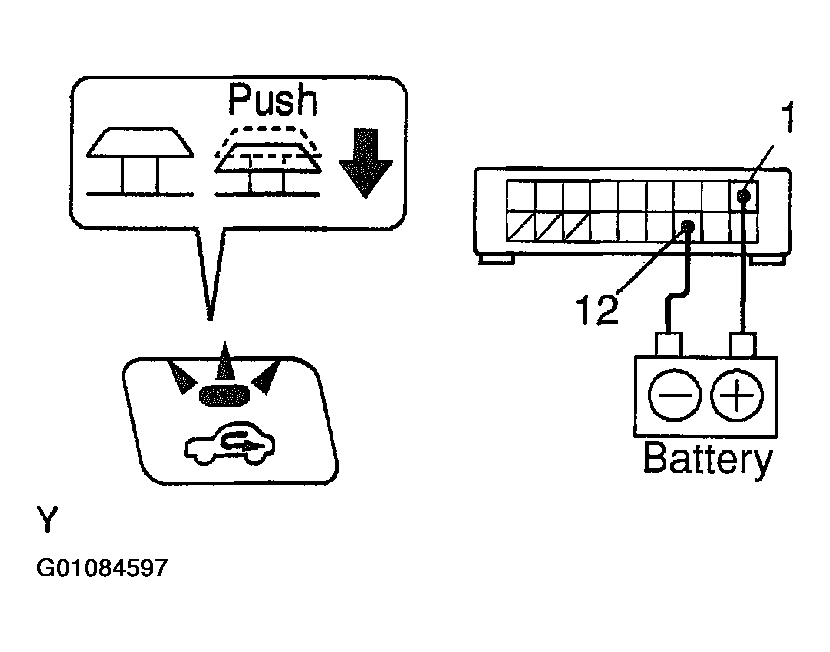

1. Connect the positive (+) lead from the battery to terminal No. 1 and negative (-) lead to terminal No. 12.
2. Push the air inlet control switch in and then check that the air inlet control switch lights up.
Fig 8: Inspect Air Inlet Control Switch Indicator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the air inlet control switch.

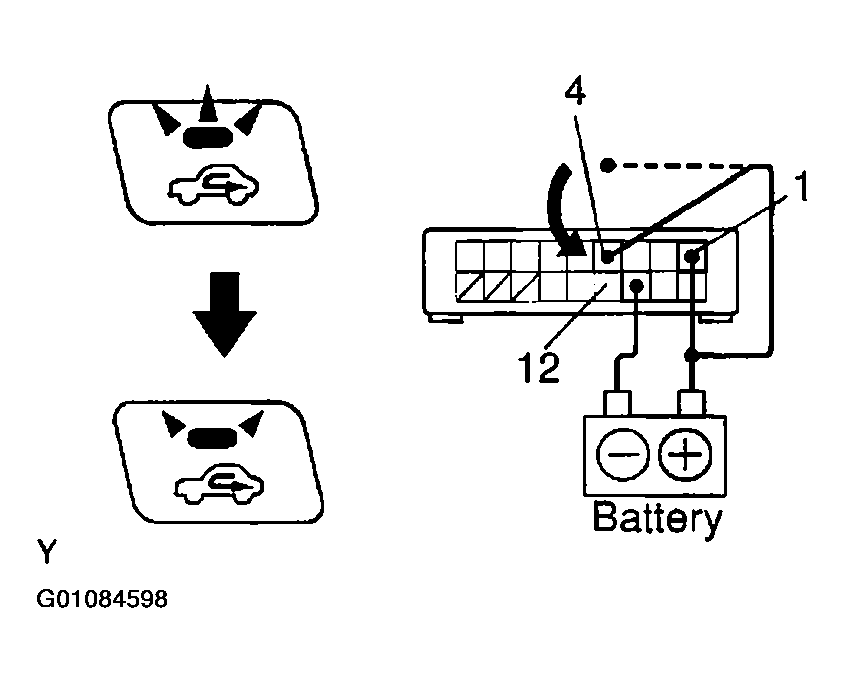

1. Connect the positive (+) lead from the battery to terminal No. 1 and negative (-) lead to terminal No. 12 while pressing the switch.
2. Connect the positive (+) lead from battery to terminal No. 4 and then check that the air inlet control switch indicator dims.

If operation is not as specified, replace the air inlet control switch.

Fig 9: Inspecting Air Inlet Control Switch Indicator Dimming Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

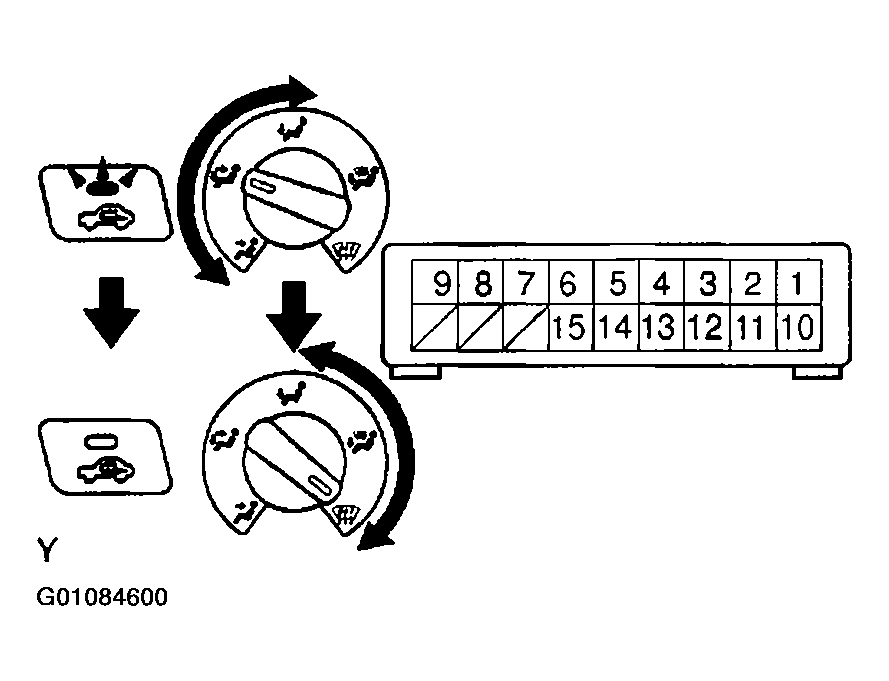

Fig 10: Displaying Air Inlet Control Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

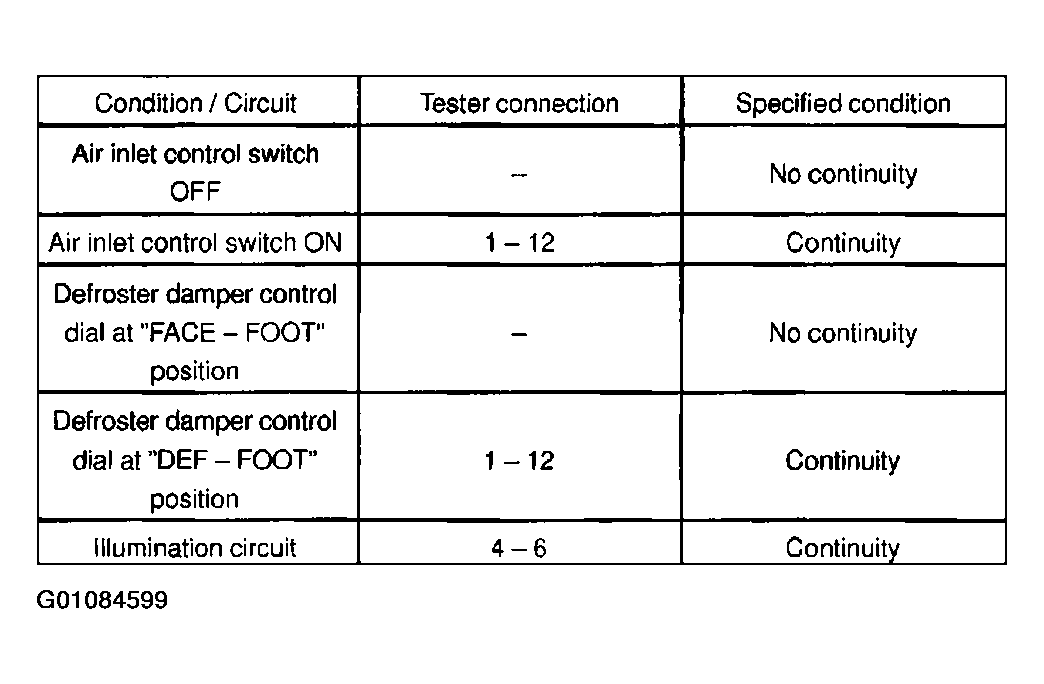

Fig 11: Displaying Air Inlet Control Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the air inlet control switch.

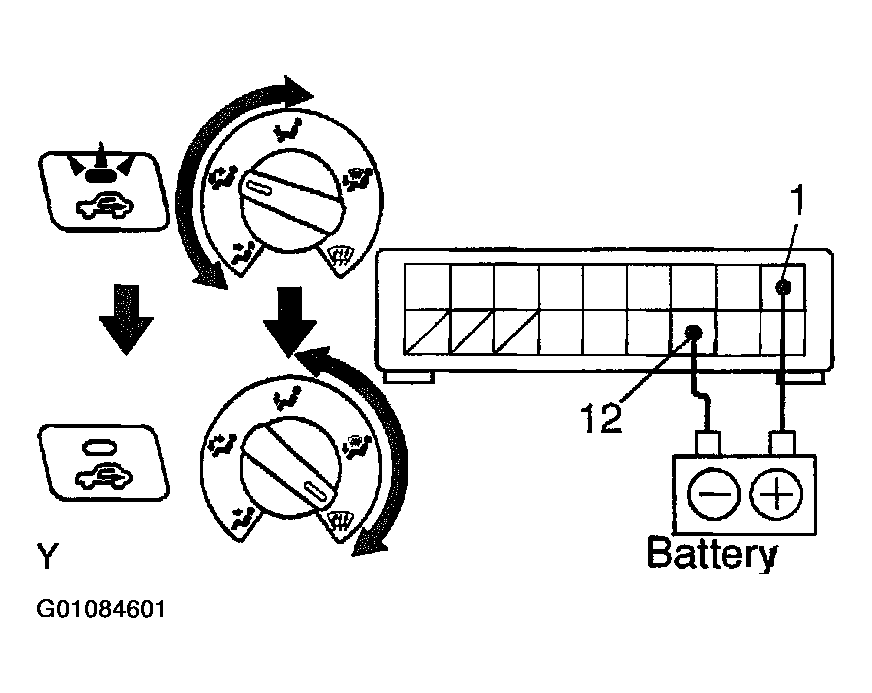

1. Connect the positive (+) lead from the battery to terminal No. 1 and negative (-) lead to terminal No. 12.
   Fig 12: Inspecting Air Inlet Control Switch Indicator Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push the air inlet control switch in and then check that the air inlet control switch lights up.
3. Turn the defroster damper control dial to the "DEF - FOOT" position and check that the air inlet control switch indicator lights off.

If operation is not as specified, replace the air inlet control switch.

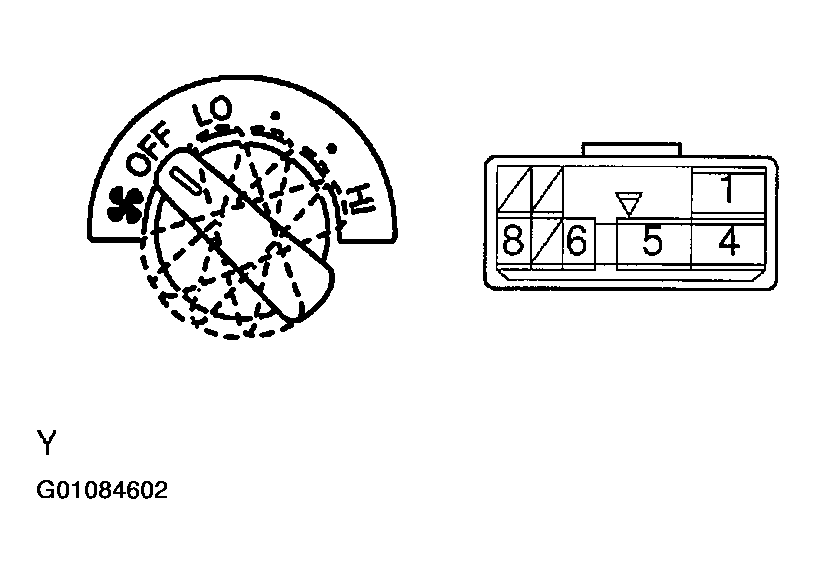

Fig 13: Displaying Blower Speed Control Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

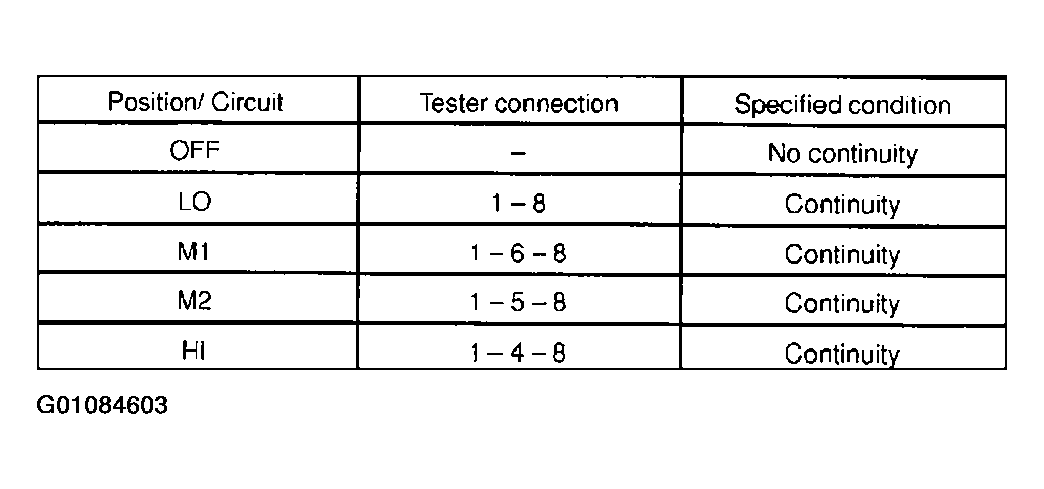

Fig 14: Inspecting Blower Speed Control Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
