Heater Control Assembly: Disassembly

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

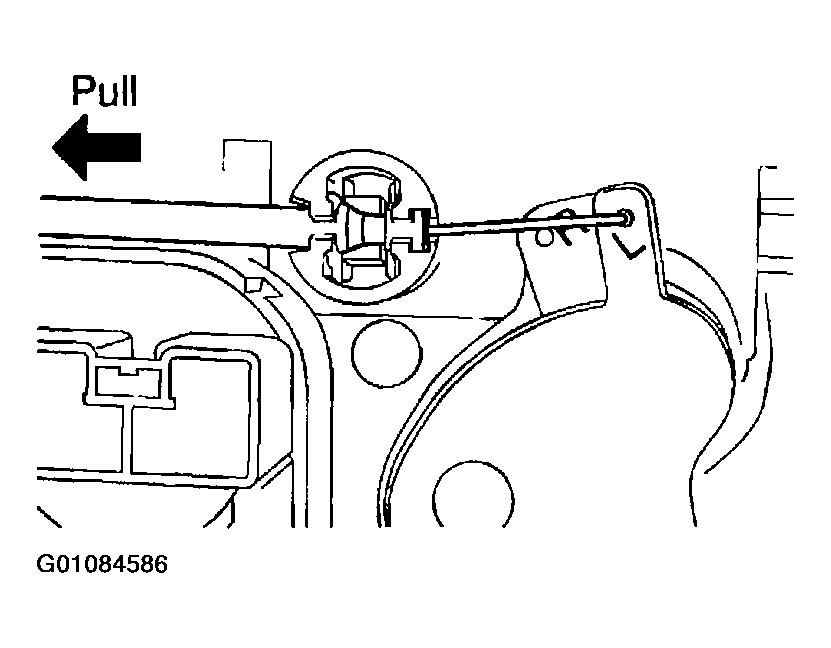

Remove Heater Control Cables
1. Pull out the outer cables.
2. Remove the inner cables.
Remove Heater Control Name Plate
1. Remove the 3 knobs.

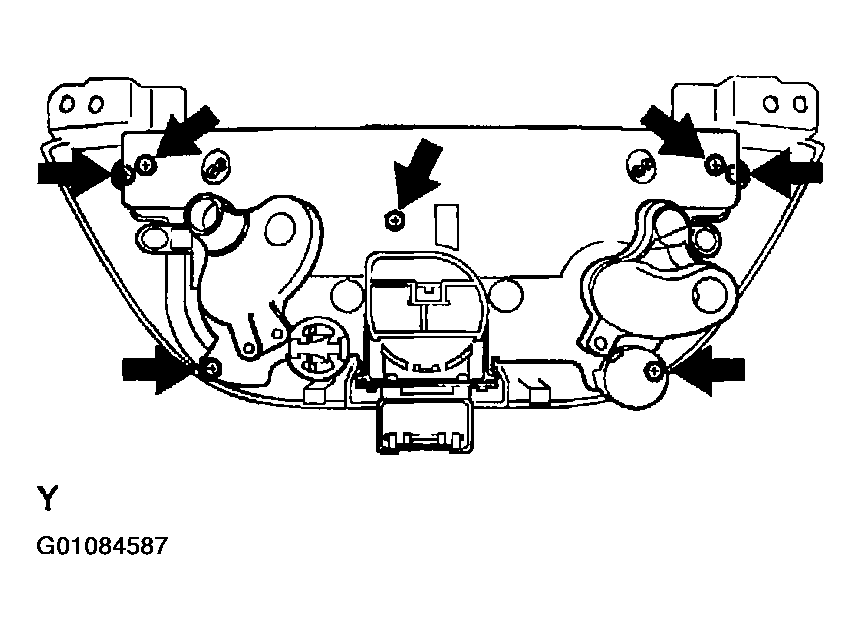

2. Remove the 7 screws.

  Fig 2: Locating & Removing Heater Control Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the heater control name plate and printed wire integration board from the heater control assembly.
Remove Clock Integration Board

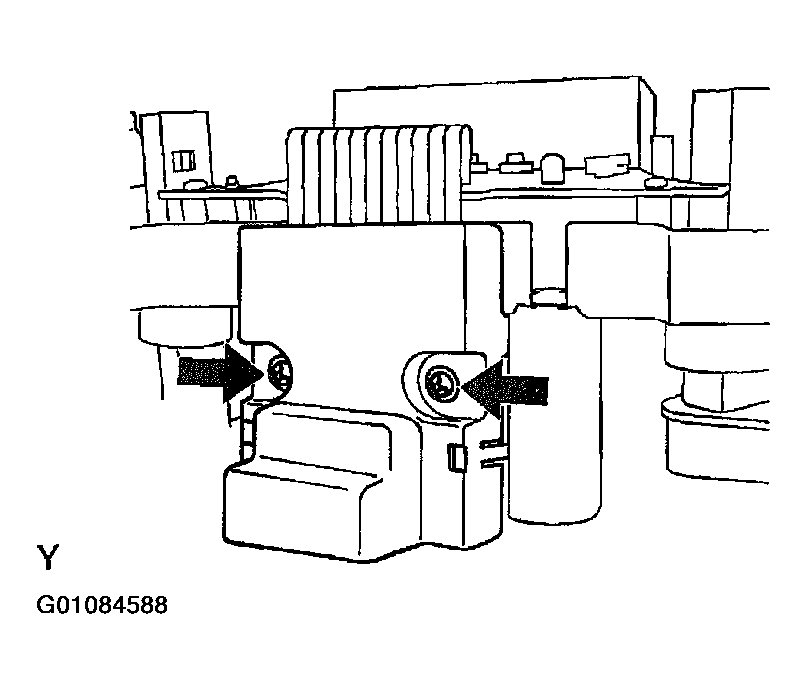

1. Remove the 2 screws and heater control switch cover.

  Fig 3: Removing Heater Control Switch Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

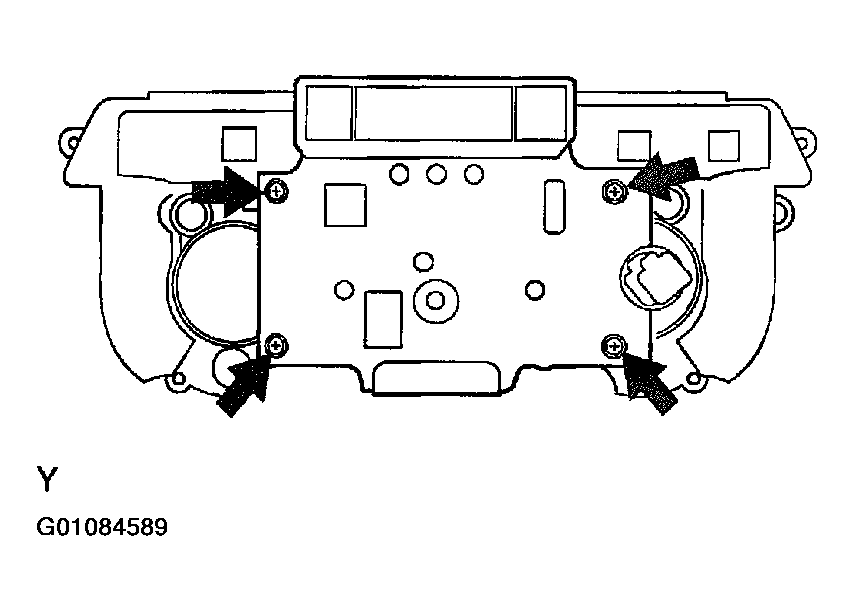

2. Remove the 4 screws and clock plate.

  Fig 4: Removing Screws & Clock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the connector.
