Section 47 (Manual A/C-Heater Systems): Condenser: Removal

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Discharge Refrigerant From Refrigeration System
Remove Front Bumper See COMPONENTS .
Remove Liquid Tube & Discharge Tube

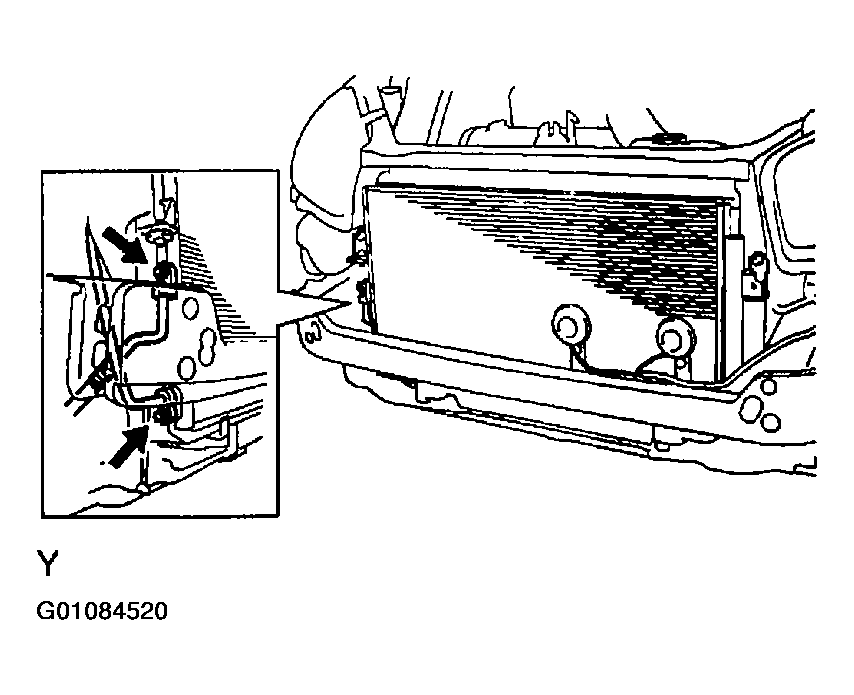

Fig 1: Locating Liquid & Discharge Tube Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts and both tubes.

NOTE: Cap the open fittings immediately to keep moisture out of the system.
Remove Condenser
1. Remove the 2 bolts.
2. Pull up the condenser at upward.
NOTE: Be careful not to damage the radiator and condenser.

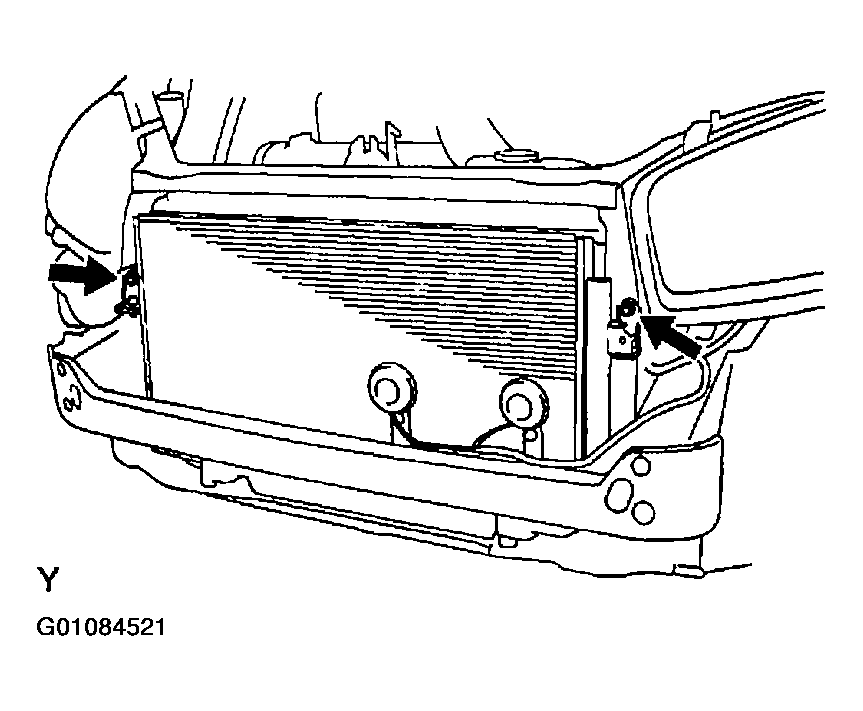

Fig 2: Locating Bolts & Removing Condenser
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
