Section 47 (Manual A/C-Heater Systems): Condenser: Components

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

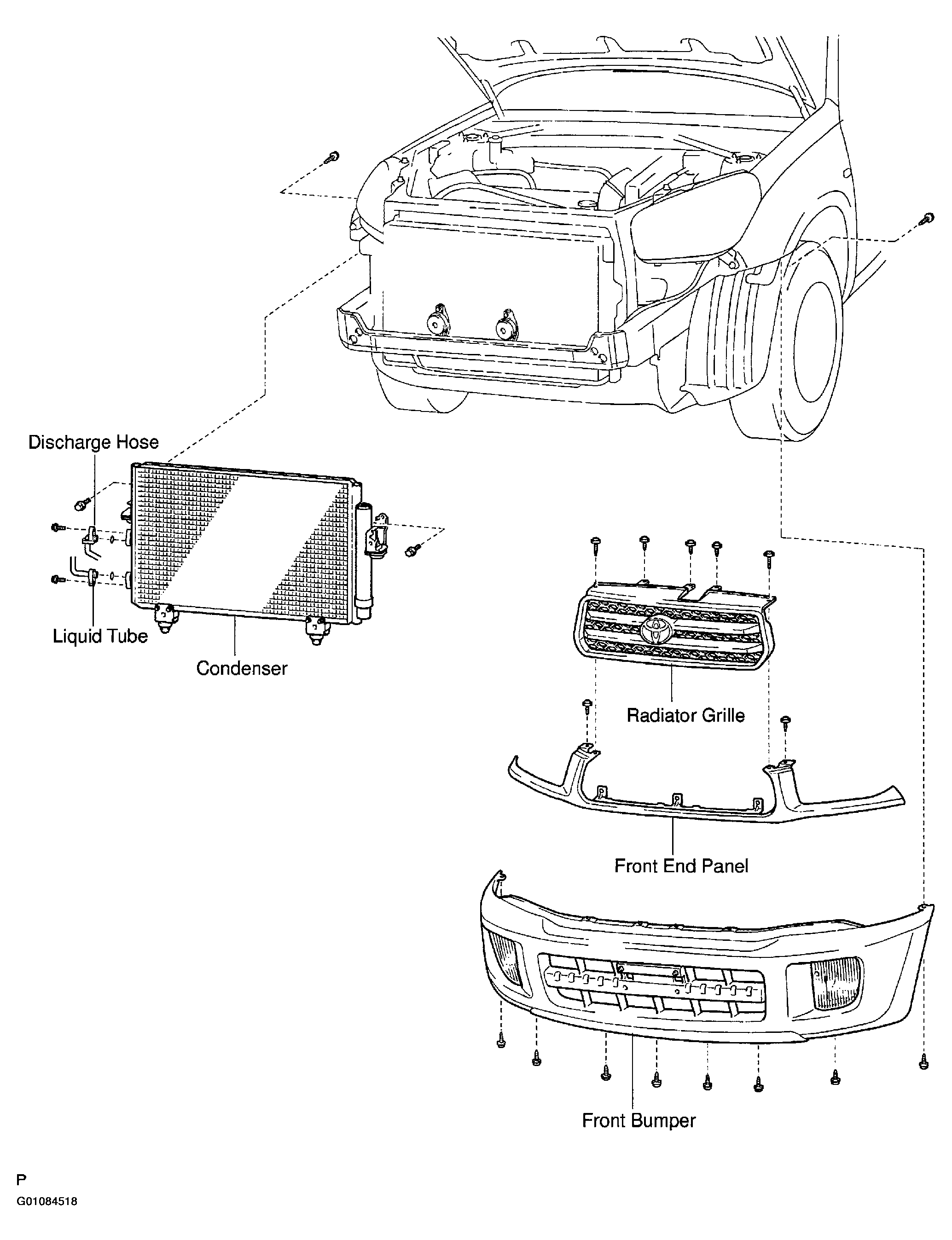

Fig 1: Displaying Condenser Components (1 Of 2)
G01084518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

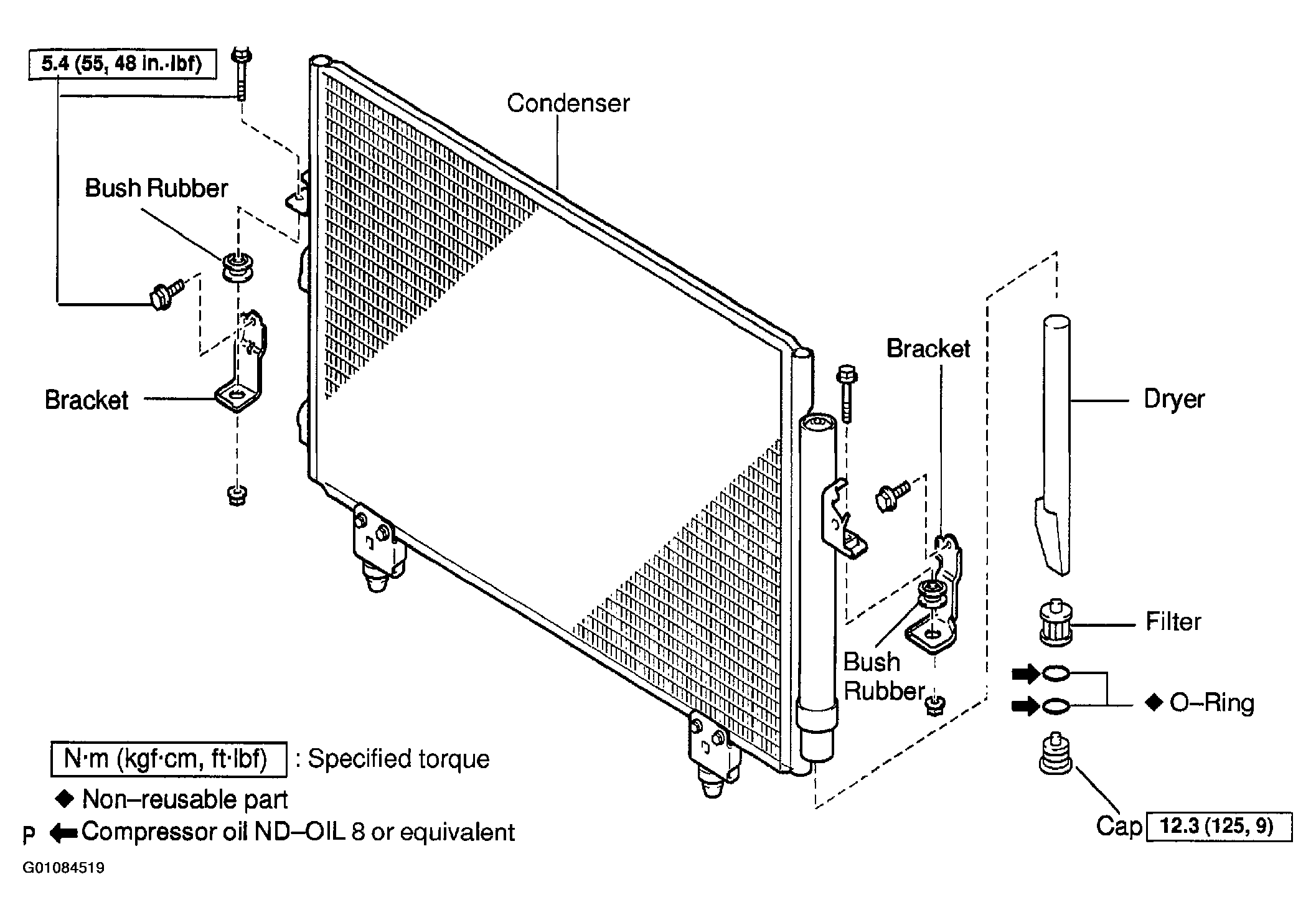

Fig 2: Displaying Condenser Components (2 Of 2)
G01084519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
