Condenser Fan: Reassembly

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Install No. 2 Fan Motor
1. Install the No. 2 fan motor with the 3 screws.

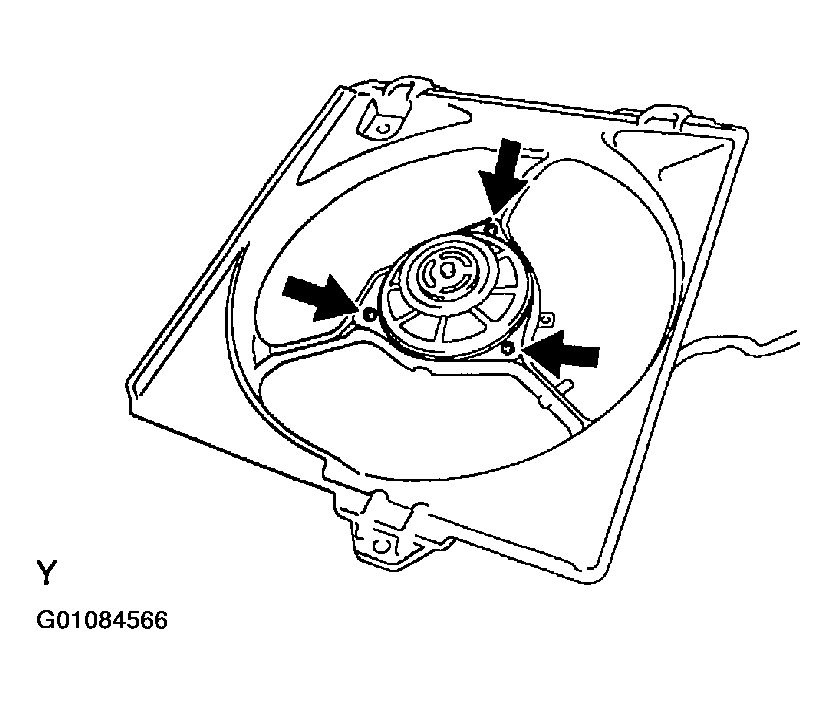

  Fig 1: Installing No. 2 Fan Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fan motor cover with the screw.

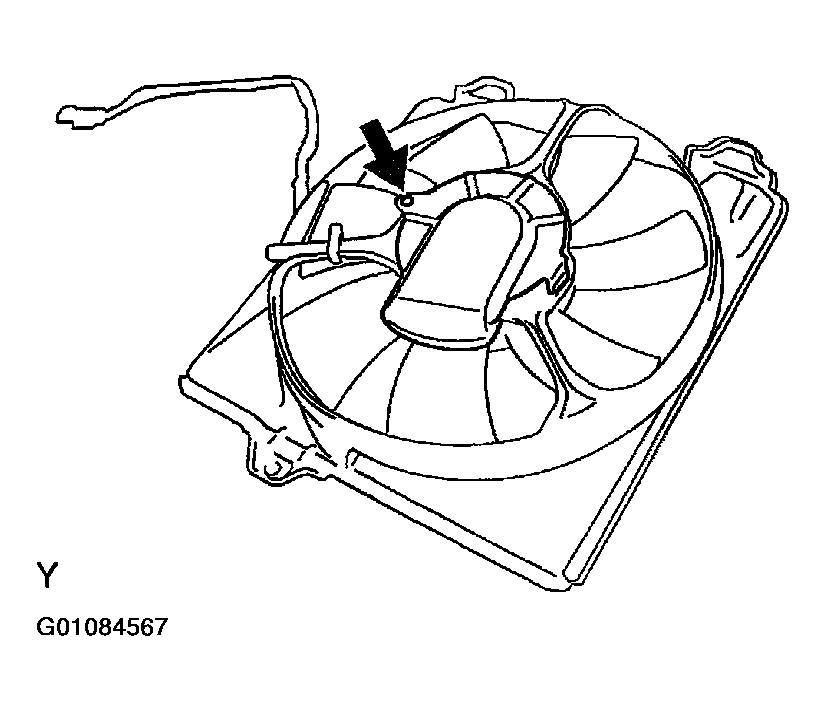

  Fig 2: Installing No. 2 Fan Motor Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install No. 2 Fan On Motor
Install the No. 2 fan with the 3 screws.

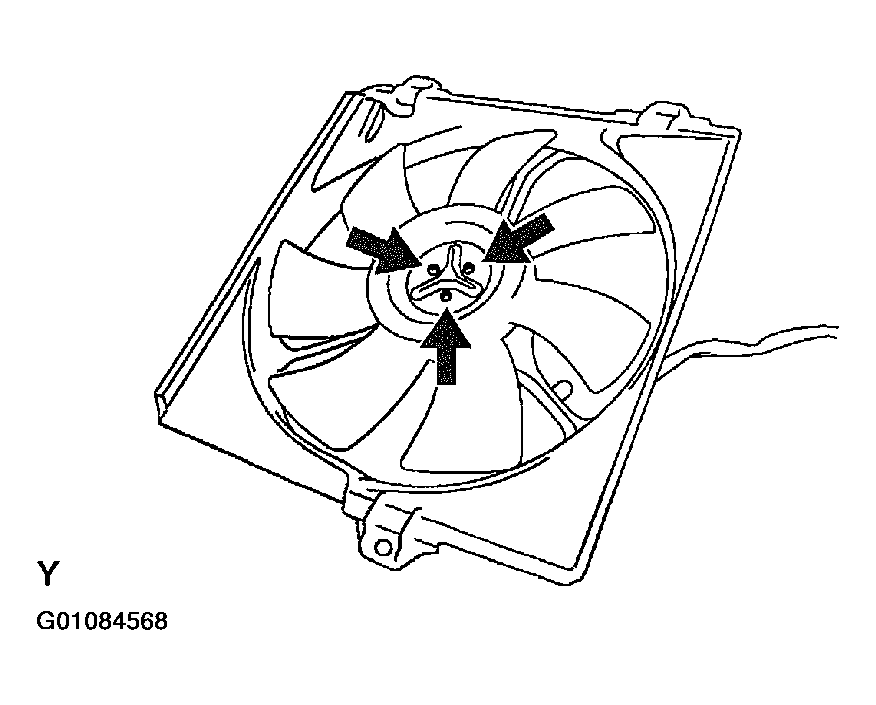

Fig 3: Installing No. 2 Fan On Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
