Condenser Fan: Installation

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Install No. 2 Electric Cooling Fan & Fan Shroud Assembly .
1. Install the No. 2 electric cooling fan and fan shroud assembly with the 3 bolts.

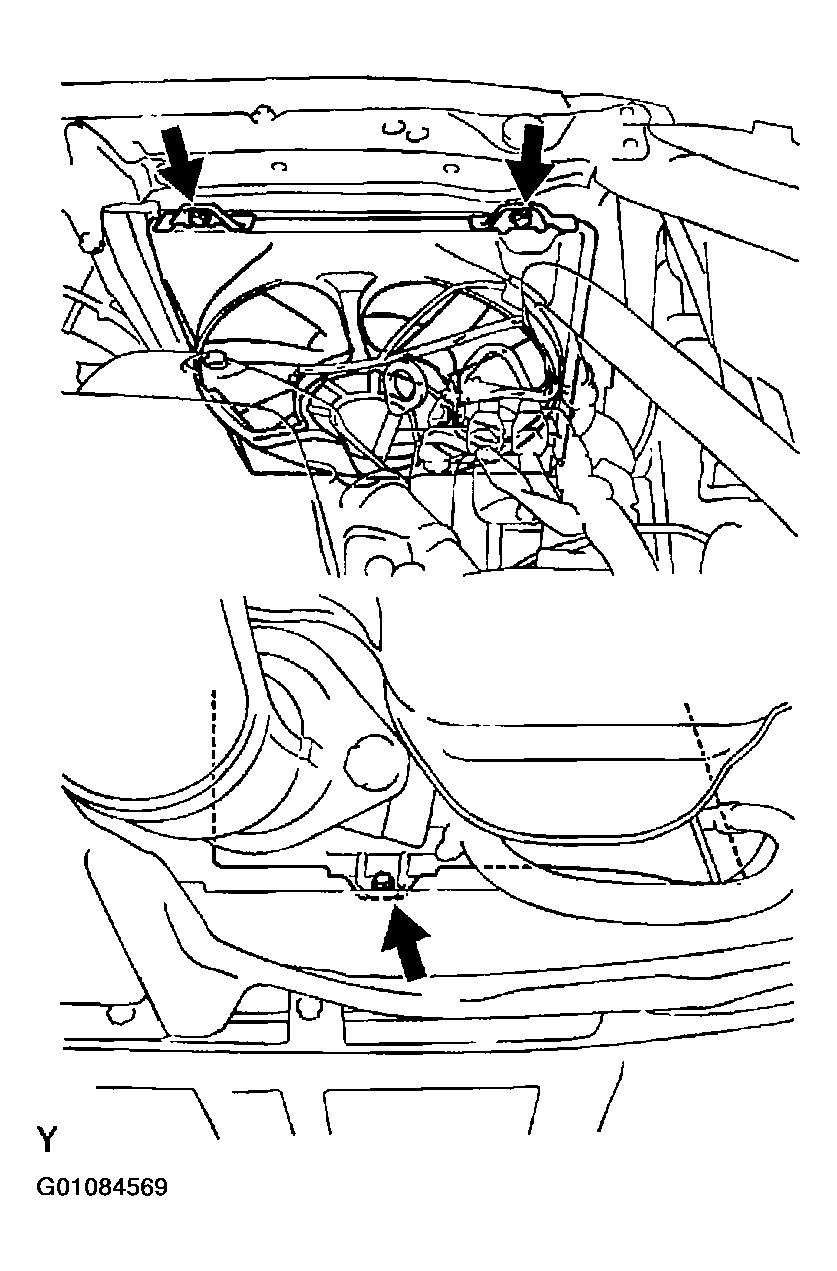

  Fig 1: Installing No. 2 Electric Cooling Fan & Fan Shroud Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the No. 2 electric cooling fan connector and clamp.

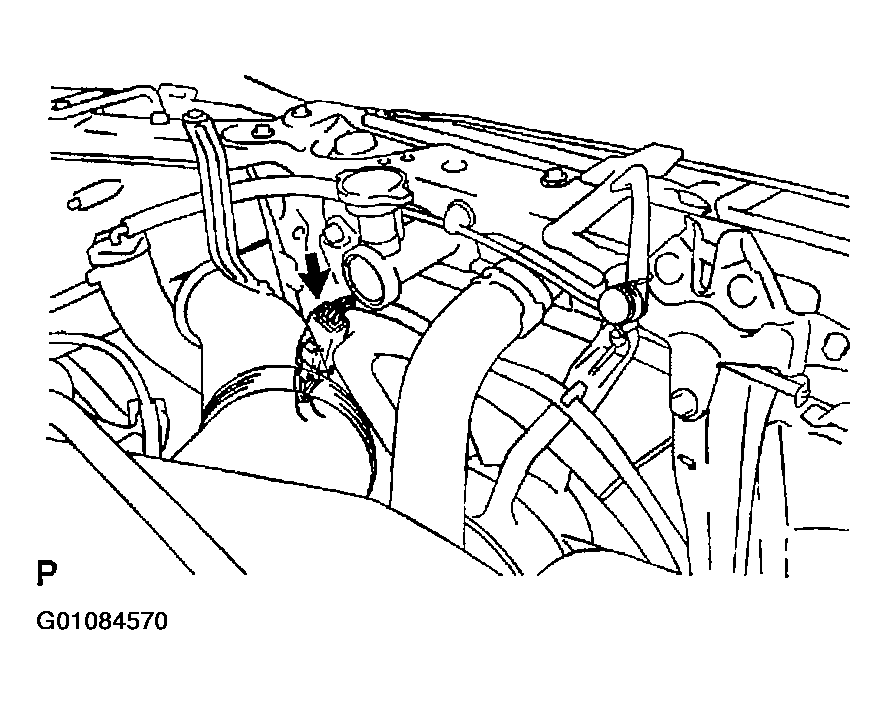

  Fig 2: Connecting No. 2 Electric Cooling Fan Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Hood Lock Support Brace
Install the bolt.

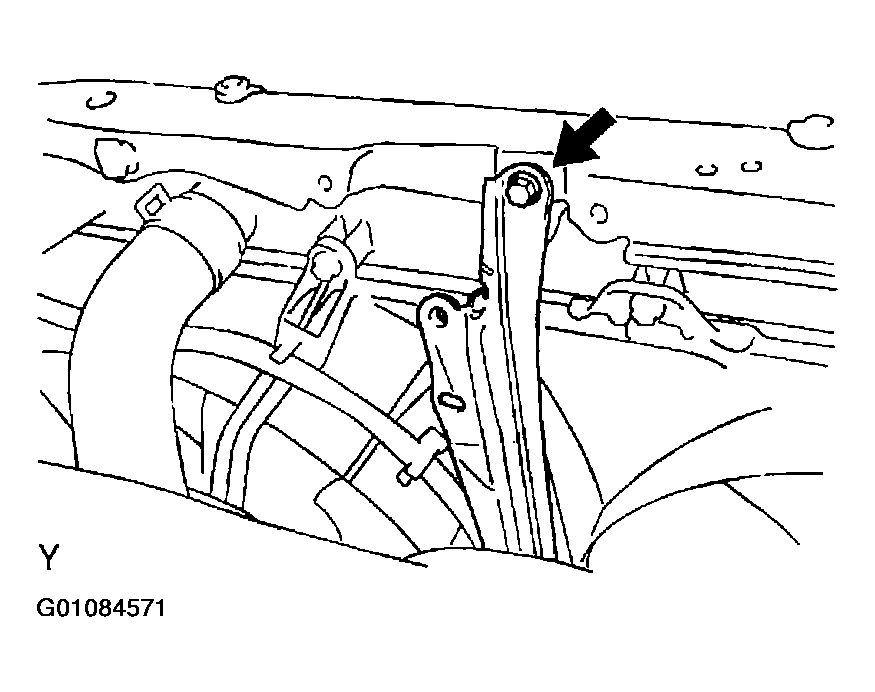

Fig 3: Installing Hood Lock Support Brace
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Hood Lock
Install the hood lock with the 3 bolts.

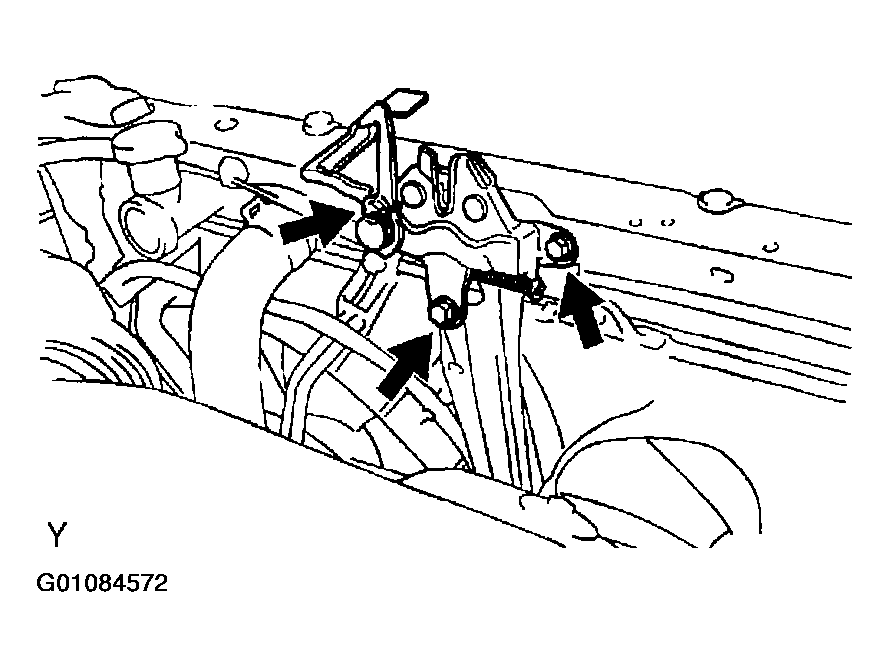

Fig 4: Installing Hood Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
