Blower Unit: Reassembly

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install Blower Motor

    Using a torx wrench, install the blower motor with the 3 screws.

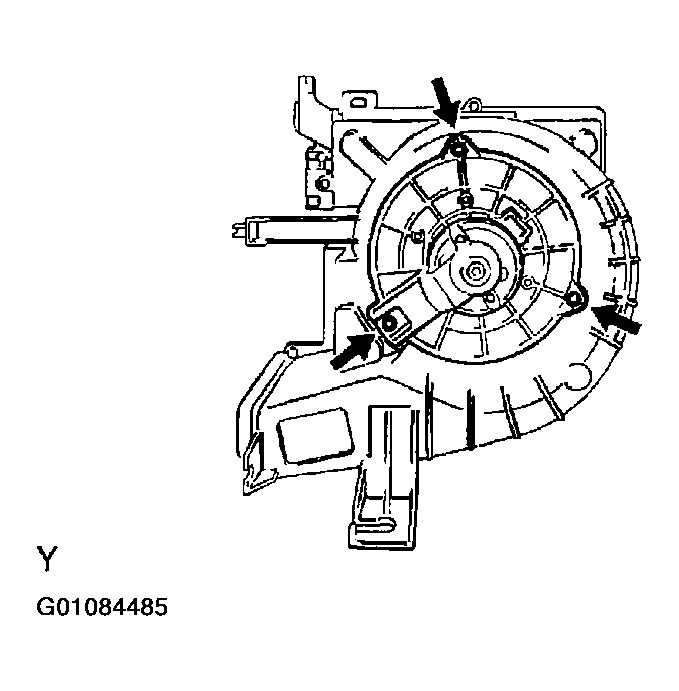

    Fig 1: Installing Blower Motor
    G01084485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install Air Refiner Filter
    1. Install the filter to the frame.
    2. Push into the filter cover.
  3. Install Blower Resistor

    Install the blower resistor with the 2 screws.

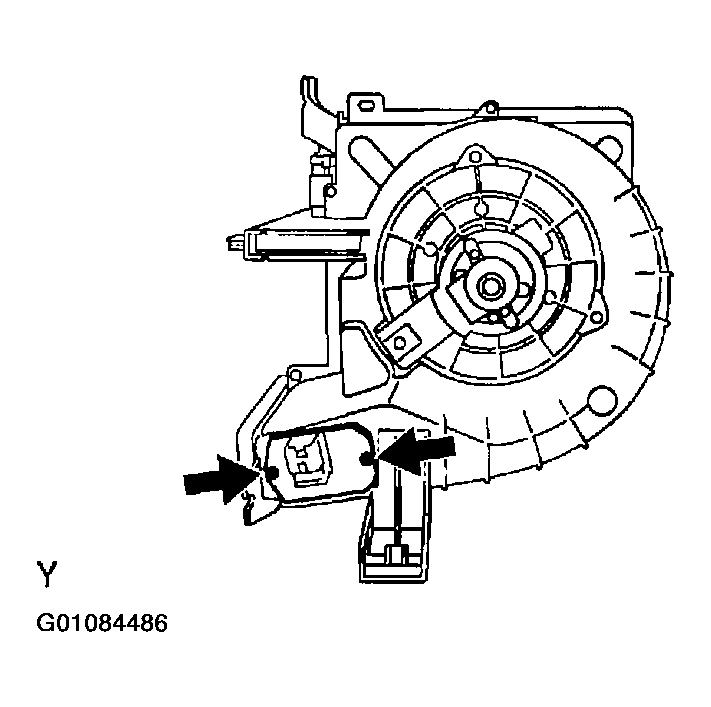

    Fig 2: Installing Blower Resistor
    G01084486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
