Blower Unit: Disassembly

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Blower Resistor

    Remove the 2 screws and blower resistor.

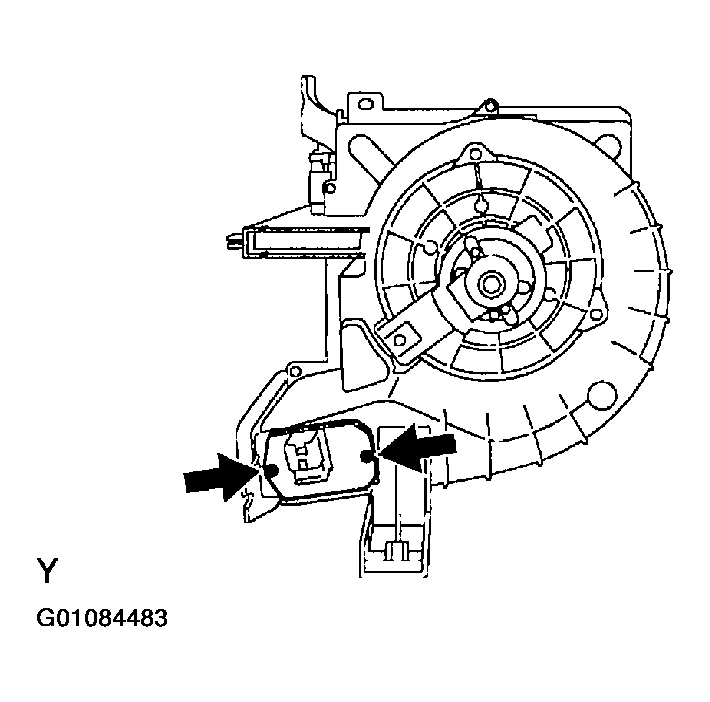

    Fig 1: Locating & Removing Blower Resistor
    G01084483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Inspect Blower Resistor  See INSPECTION .
  3. Remove Air Refiner Filter
    1. Pull out the filter cover.
    2. Remove the filter from the frame.
  4. Remove Blower Motor

    Using a torx wrench, remove the 3 screws and blower motor.

  5. Inspect Blower Motor  See INSPECTION .

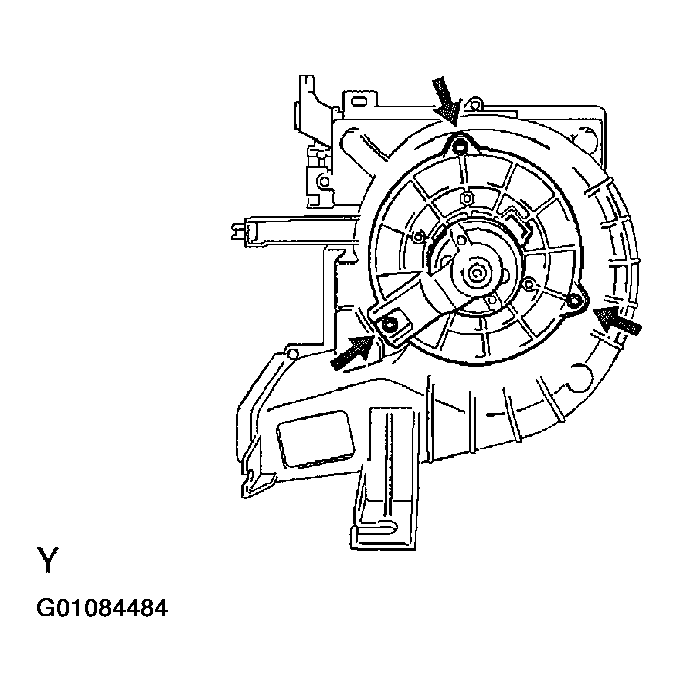

    Fig 2: Identifying & Removing Blower Motor
    G01084484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
