Air Conditioning Unit: Installation

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

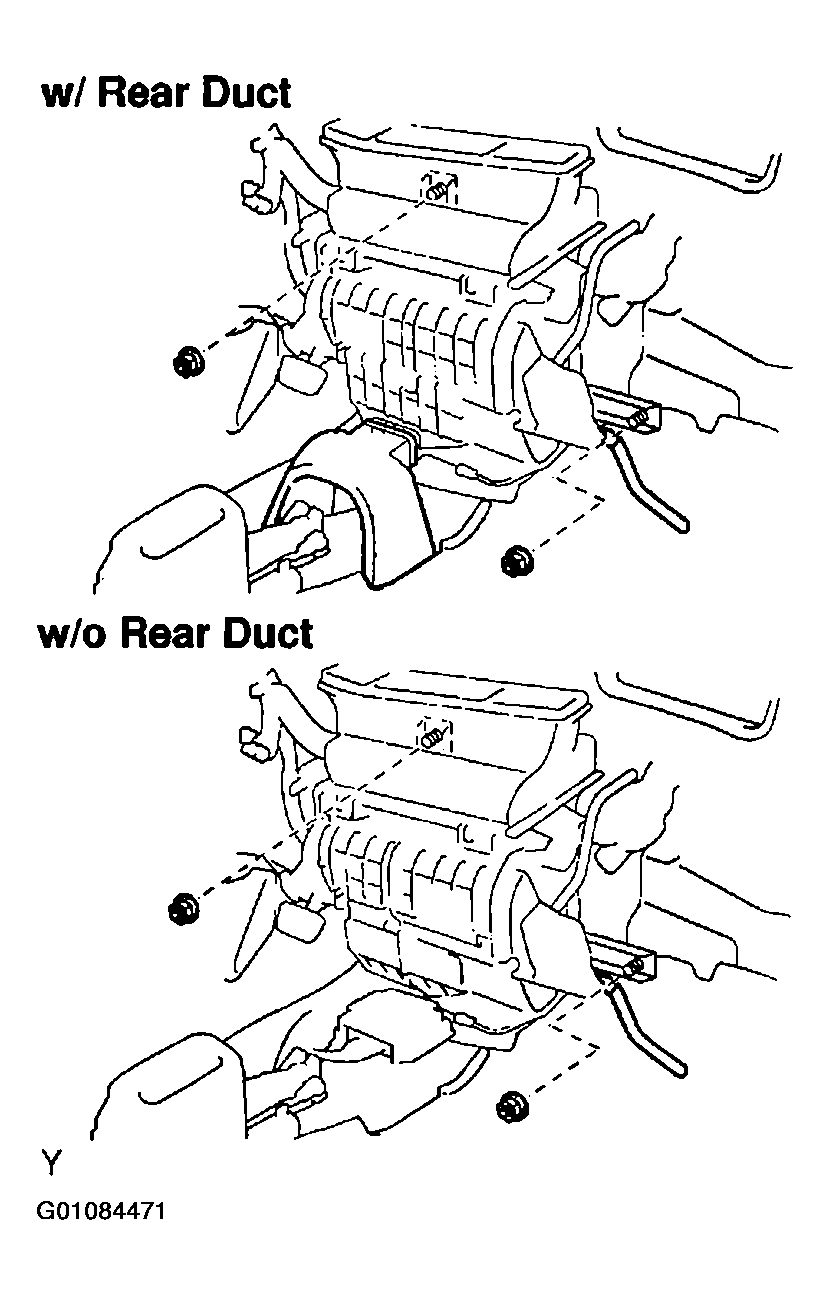

Install A/C Unit
1. Install the A/C unit with the 2 nuts.

  Fig 1: Installing A/C Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. With rear duct, install the rear duct.
3. Install the drain hose.
Install Blower Unit See INSTALLATION .
Install Pipe Grommets
Install Instrument Panel & Reinforcement See INSTALLATION .

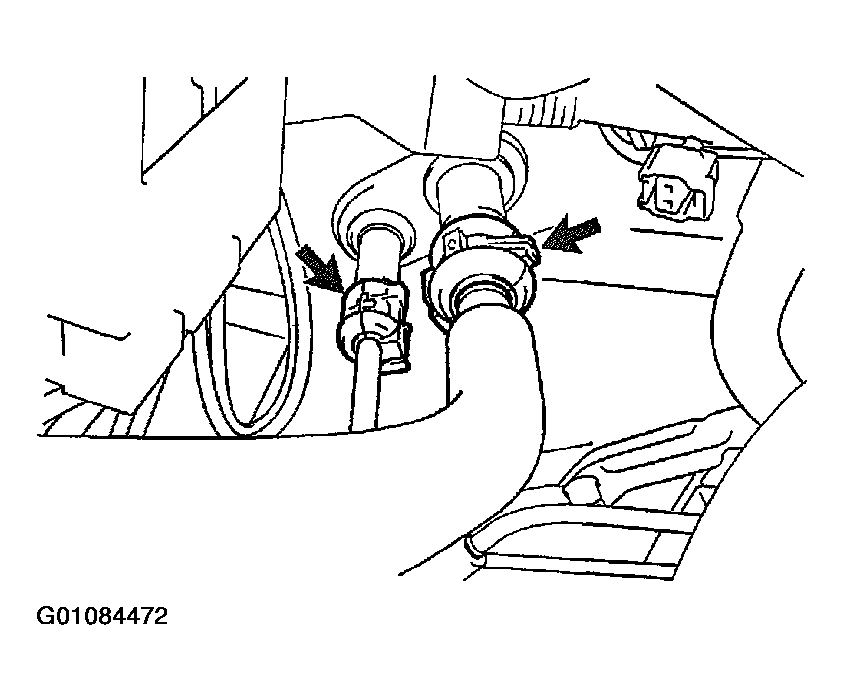

Connect Liquid Tube & Suction Tube
1. Connect both tubes.
2. Install the 2 piping clamps.

  Fig 2: Connecting Liquid Tube & Suction Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

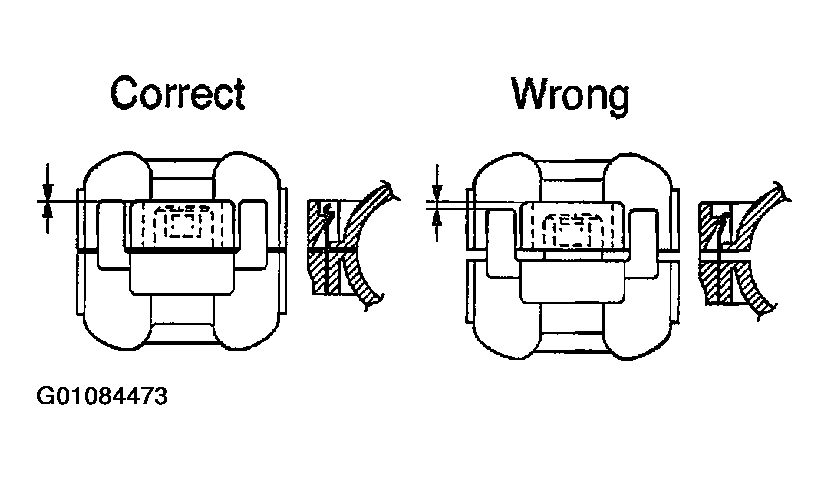

3. After connection, check the fitting for claw of the piping clamp.

  Fig 3: Checking Claw Fitting
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

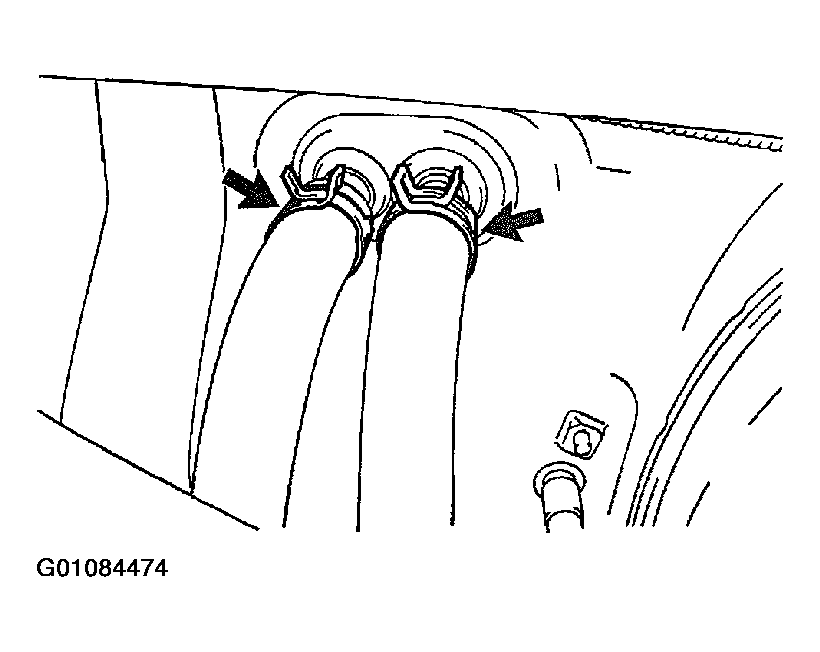

Connect Water Hoses To Heater Radiator Pipe
1. Connect the 2 heater hoses.
2. Push the water hose onto the heater radiator pipe as further as the grommet.

  Fig 4: Connecting Heater Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

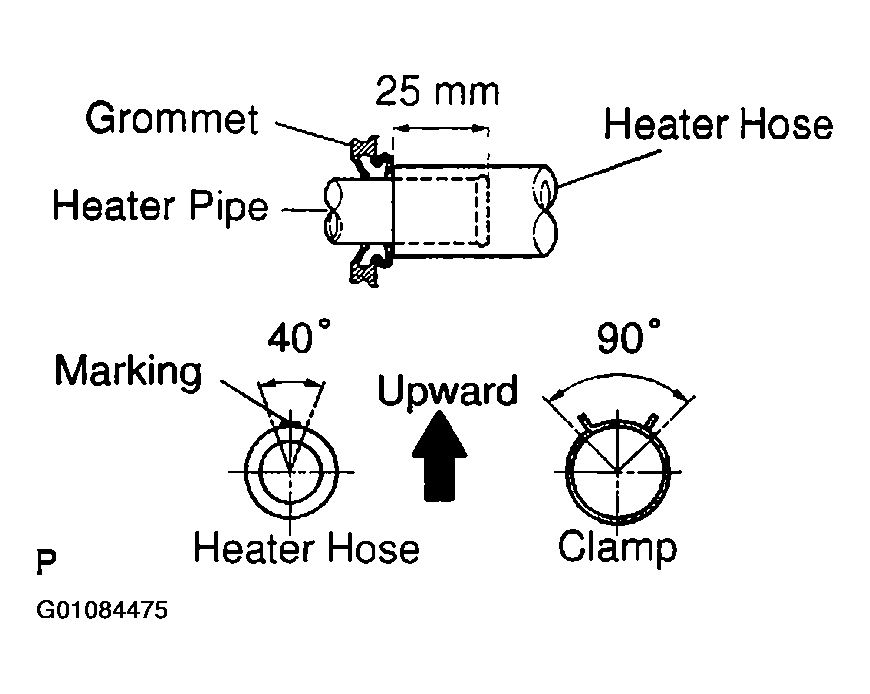

3. Install the hose clip in a position, as shown in Fig 5.

  Fig 5: Installing Hose Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using pliers, grip the claw of the hose clip and slide the hose clip.
Fill With Engine Coolant See REPLACEMENT .
Charge Refrigerant To Refrigeration System
1. Evacuate air from refrigeration system.
2. Charge system with refrigerant and inspect for leakage of refrigerant.
  1. Specified Amount: 500 +/- 50 g (17.64 +/- 1.76 oz.)
