Air Conditioning Unit: Components

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Displaying Air Conditioning Unit Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

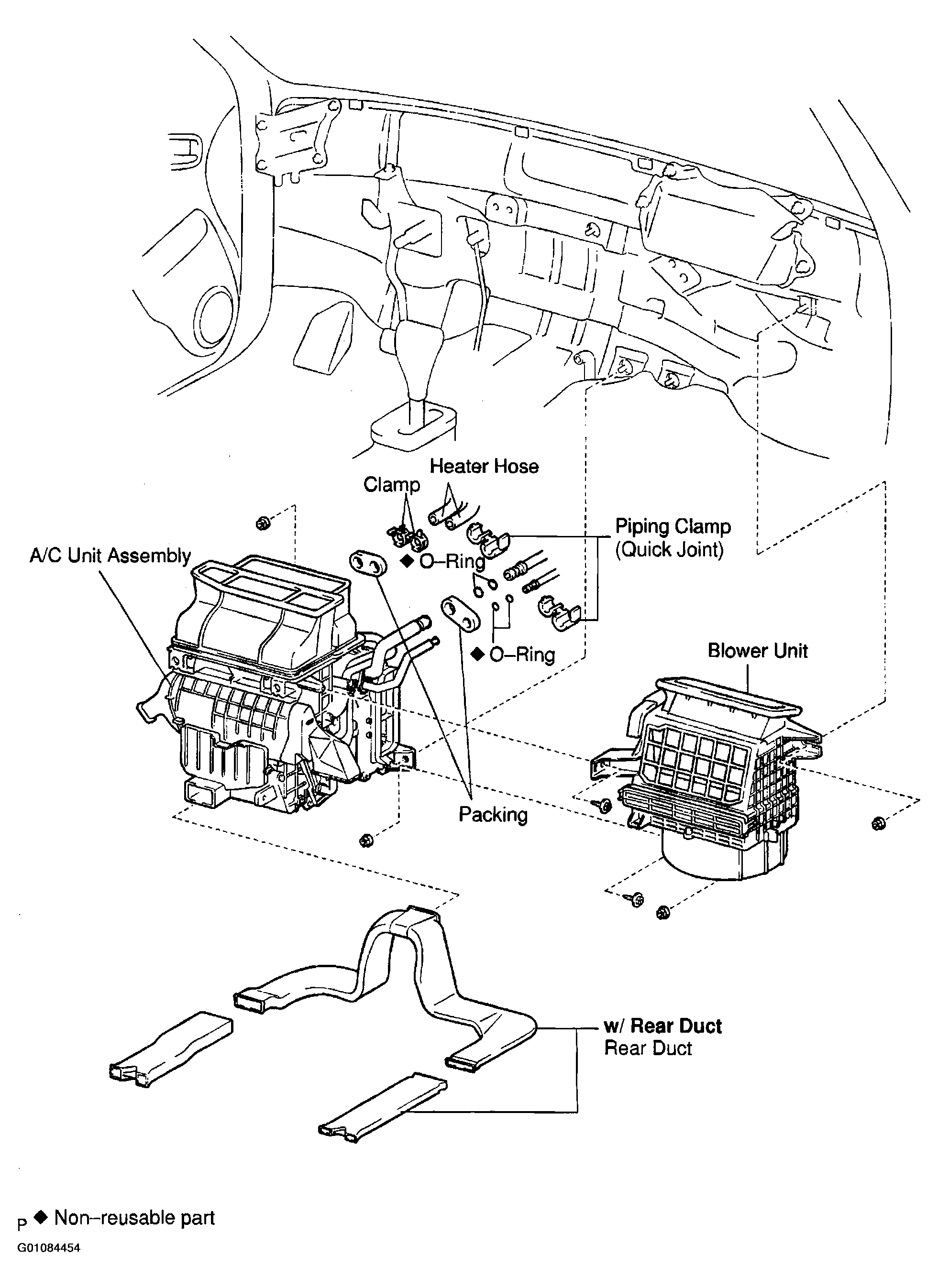

Fig 2: Displaying Air Conditioning Unit Components (2 Of 3)

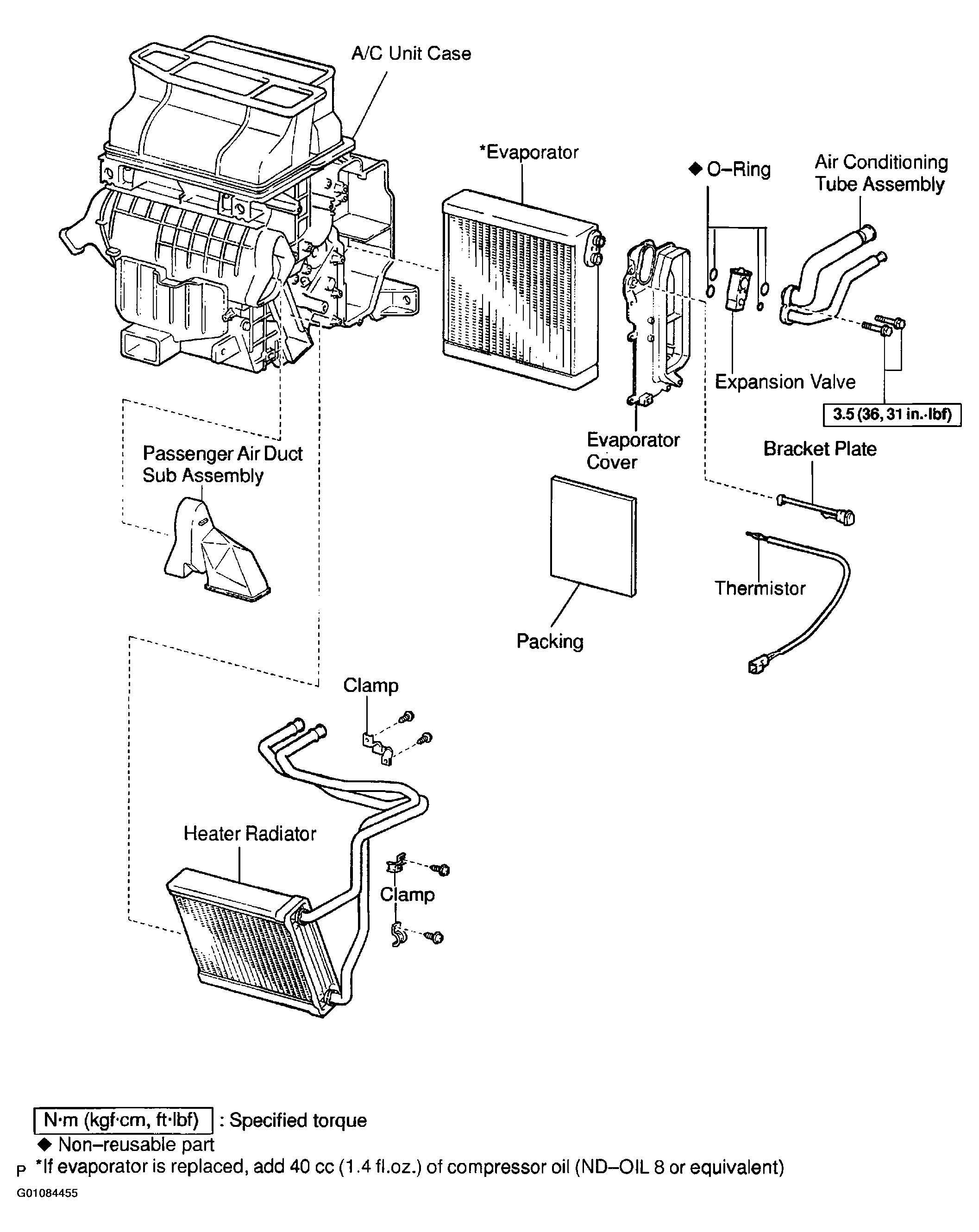

Fig 3: Displaying Air Conditioning Unit Components (3 Of 3)
