Interior Light Or Luggage Compartment Light

Interior light and luggage compartment light are located on the headliner. See Figure. Remove light assembly and disconnect electrical connector.
Using ohmmeter, check that continuity exists between body ground and terminal No. 2 on light assembly with light switch in ON position. Perform STEP 1 in illustration. See Fig 1.
Using ohmmeter, check that continuity exists between terminals No. 1 and 2 on light assembly with light switch in DOOR position. Perform STEP 2 in illustration. See Fig 1. Replace bulb or light assembly if continuity does not exist.

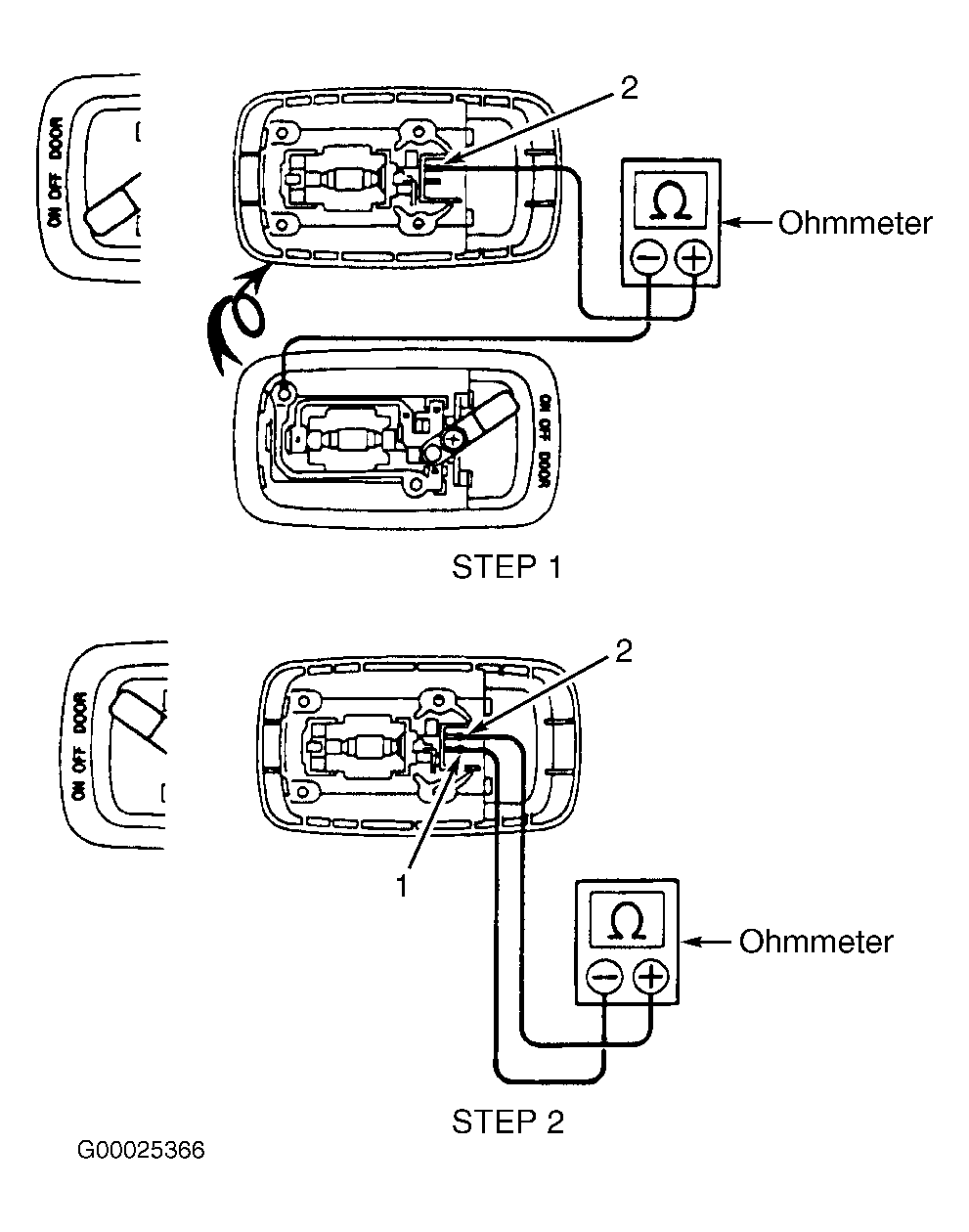

Fig 1: Testing Interior Light Or Luggage Compartment Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
