Front Door Unlock Detection Switch

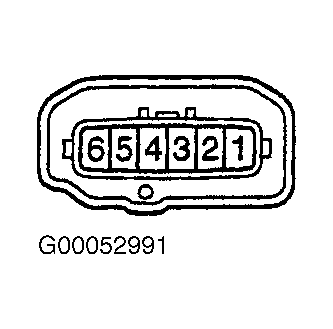

Inspect front door unlock detection switch continuity by measuring between specified terminals at each front door lock actuator. See FRONT DOOR UNLOCK DETECTION SWITCH CONTINUITY table. If continuity is not as specified, replace front door lock actuator. See Figure and Fig 1 .
FRONT DOOR UNLOCK DETECTION SWITCH CONTINUITY
| Application & Switch Position | Terminal No. | Continuity | |
|---|---|---|---|
| Highlander & RAV4 | |||
| Door Set To UNLOCK | 1 & 2 | Yes | |
| Land Cruiser & Sienna | |||
| Door Set To UNLOCK | 1 & 4 | Yes | |
| Tacoma (Driver's Door) | |||
| Door Set To UNLOCK | 4 & 8 | Yes | |
| Tacoma (Passenger's Door) | |||
| Door Set To UNLOCK | 1 & 5 | Yes | |
| Tundra | |||
| Door Set To UNLOCK | 1 & 4 | No | |
| OFF | 1 & 4 | No | |
| 4Runner (Driver's Door) | |||
| Door Set To UNLOCK | 1 & 4 | Yes | |
