Land Cruiser

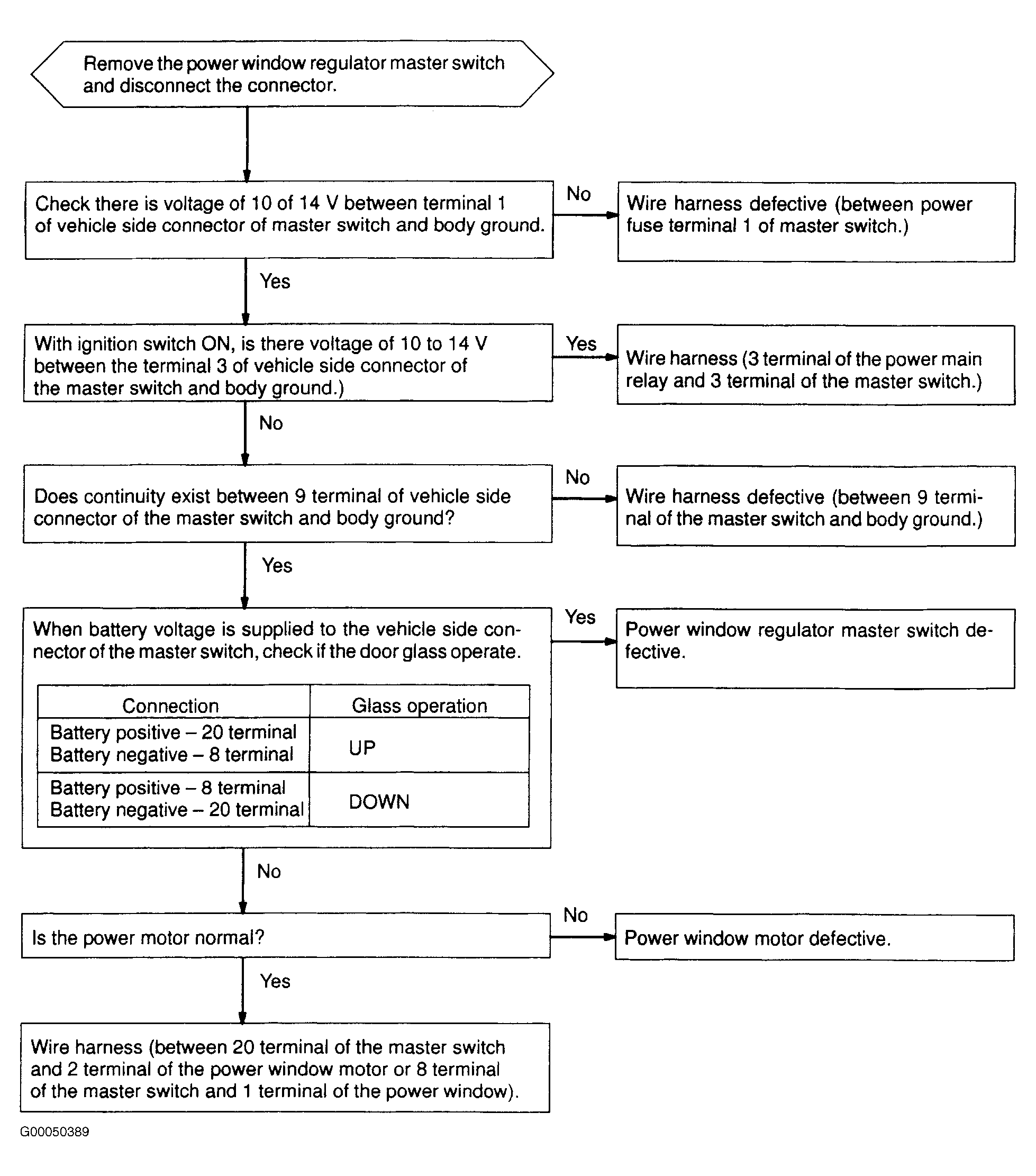

Fig 1: Test 1: Driver's Door Does Not Operate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

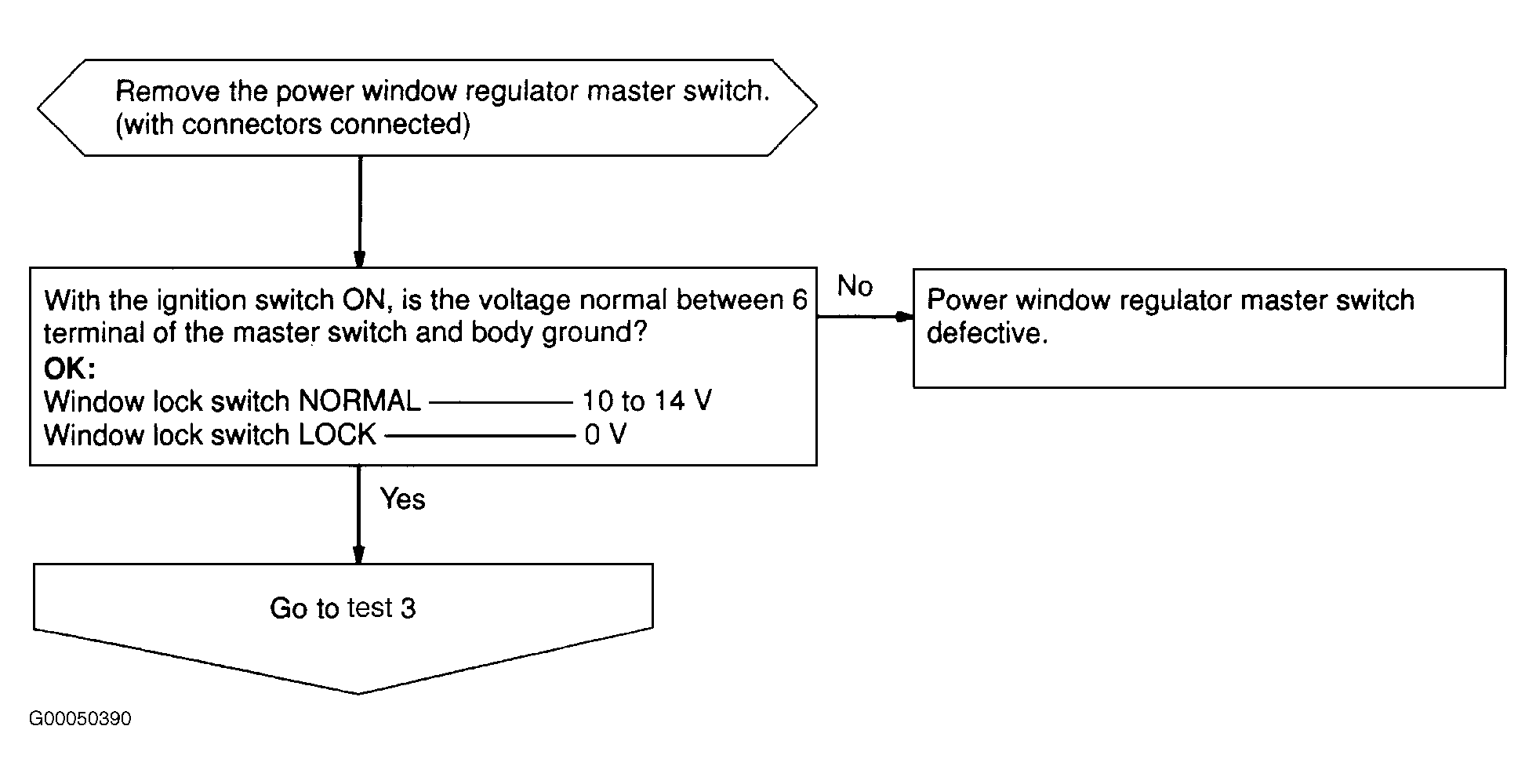

Fig 2: Test 2: Passenger's & All Rear Doors Do Not Operate By Using Switches Of Each Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

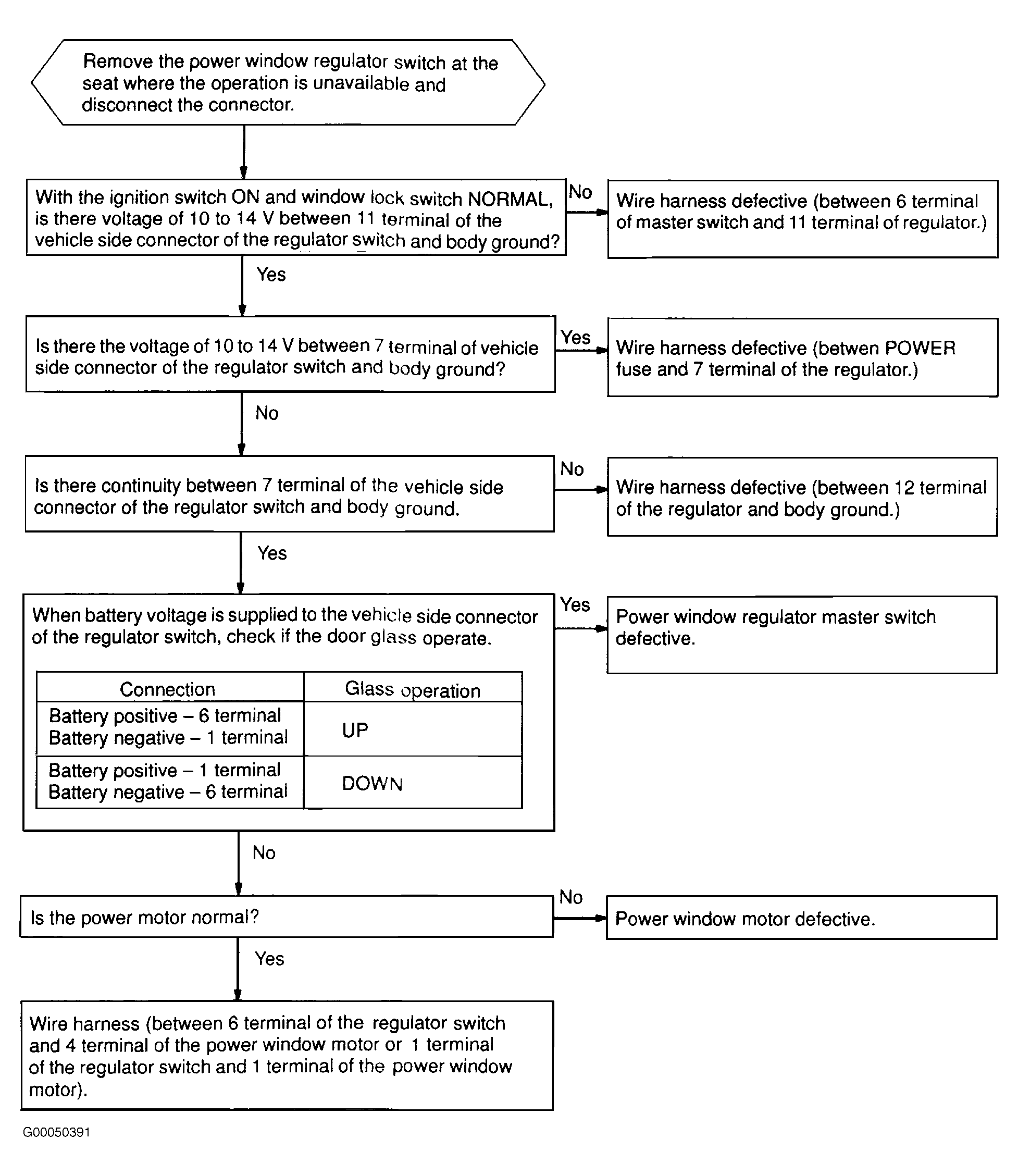

Fig 3: Test 3: Passenger's Or Any Rear Door Does Not Operate by Using Switches At Each Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

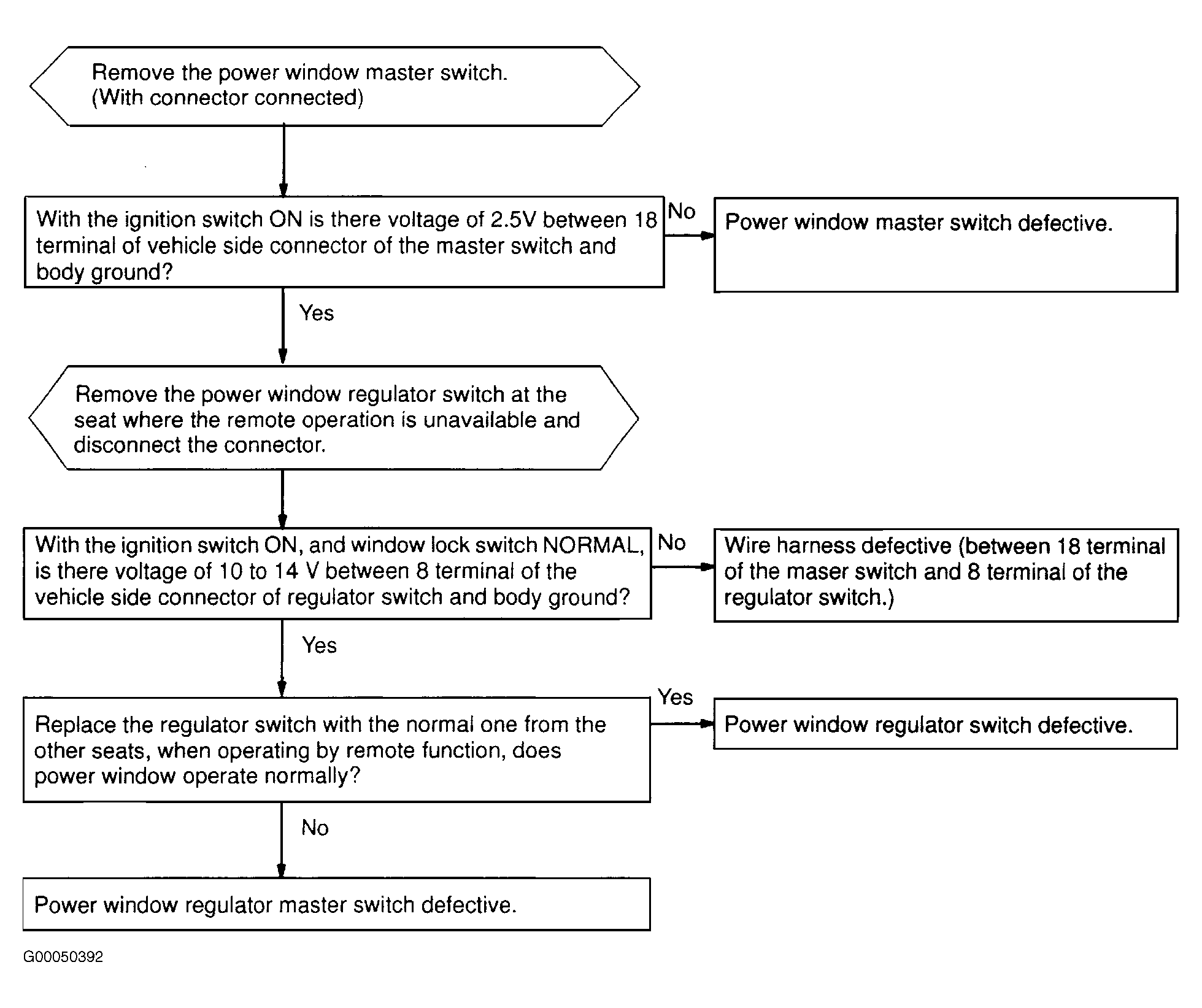

Fig 4: Test 4: Passenger's & All Rear Doors Are Not Controlled Remotely Using Master Switch (Switches At Each Door Can Be Operated)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

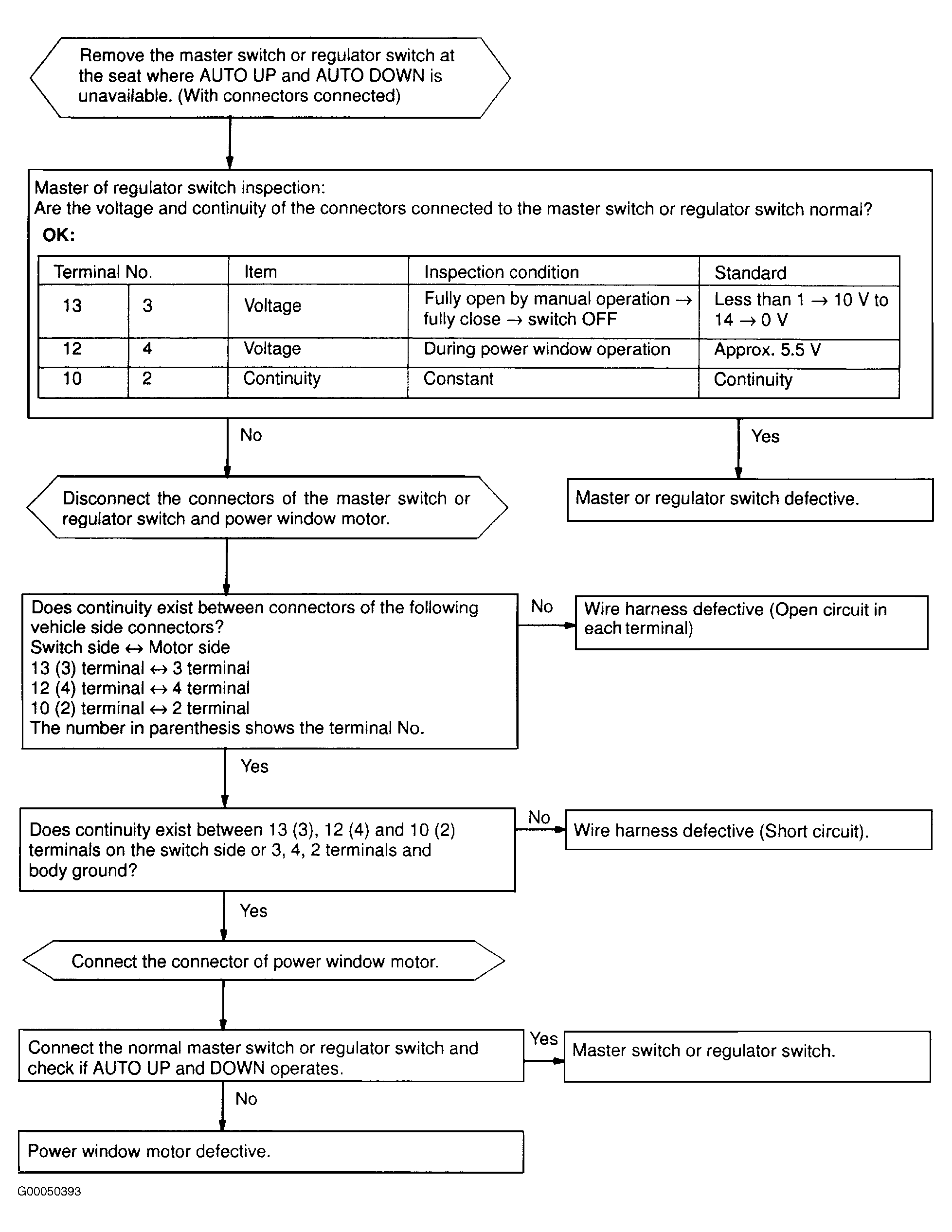

Fig 5: Test 5: AUTO UP & AUTO DOWN Do Not Operate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

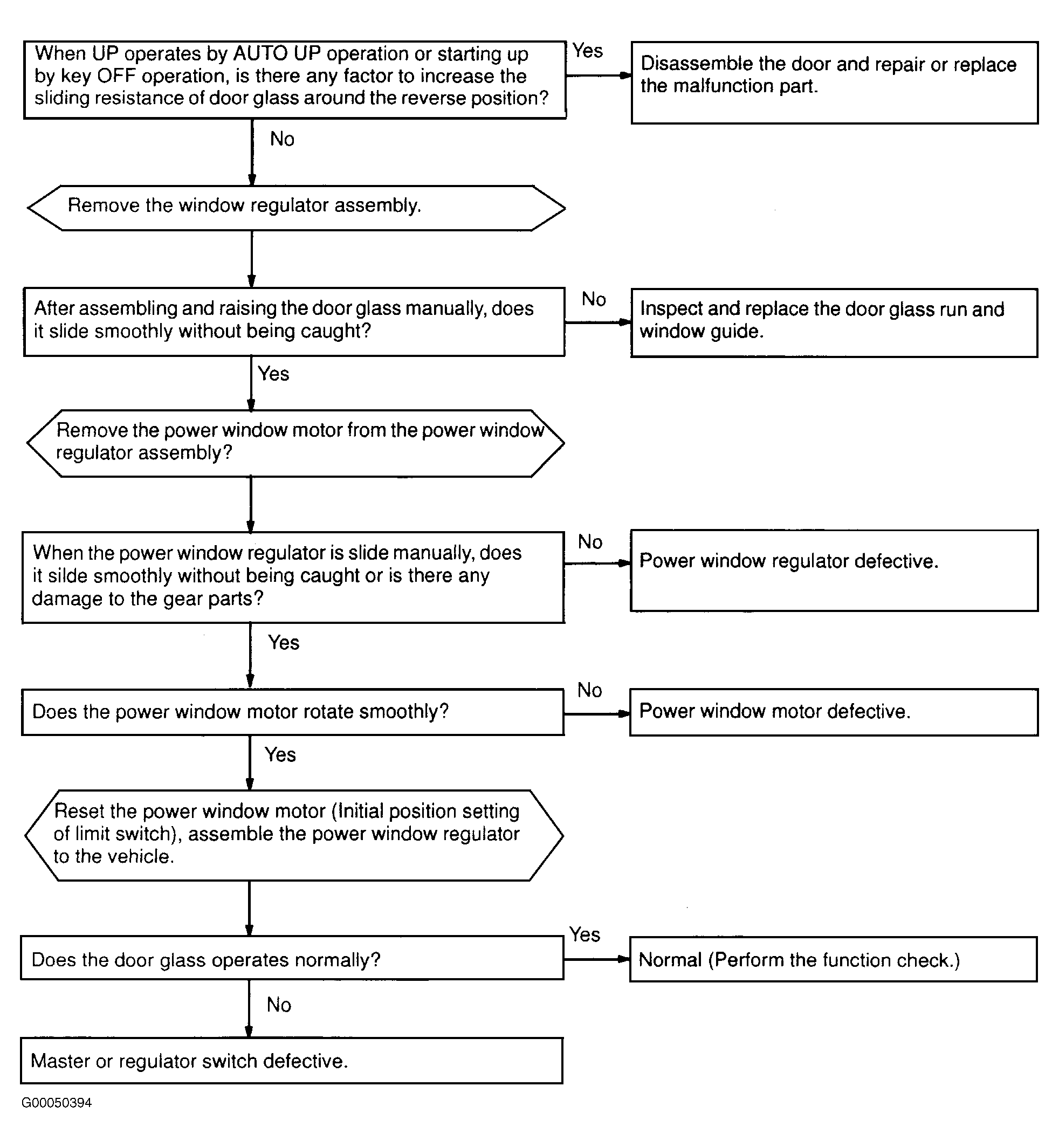

Fig 6: Test 6: DOWN Operates During Door Glass AUTO UP Operation

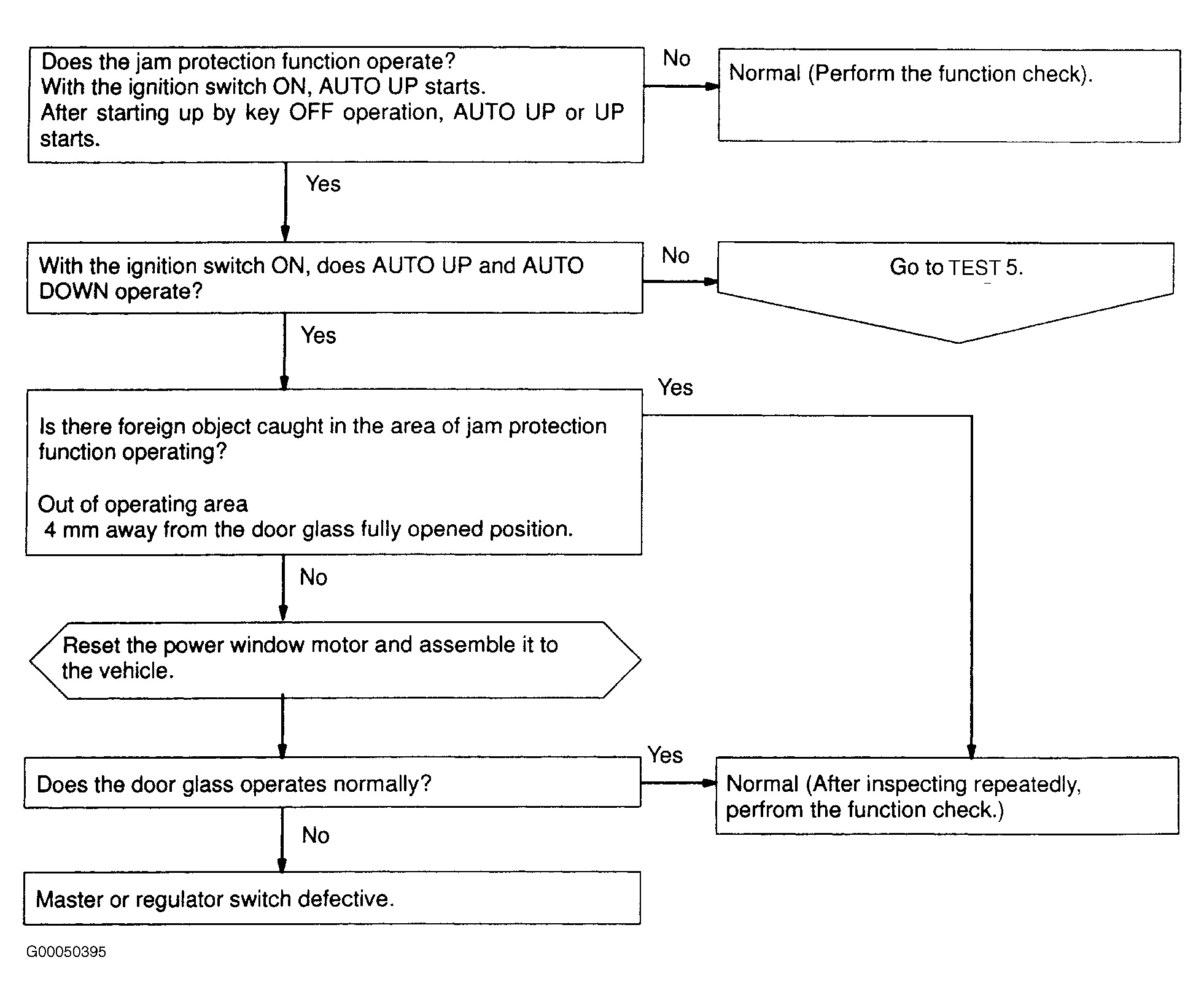

Fig 7: Test 7: DOWN Operation Does Not Function With Object Caught In Window

Fig 8: Test 8: Power Window Function Does Not Operate When Ignition Switch Is Turned OFF
