| A/C Compressor Bolt |
18 (25) |
| Air Intake Chamber Bolt/Nut |
32 (43) |
| Air Intake Chamber Support Bolt |
14 (19) |

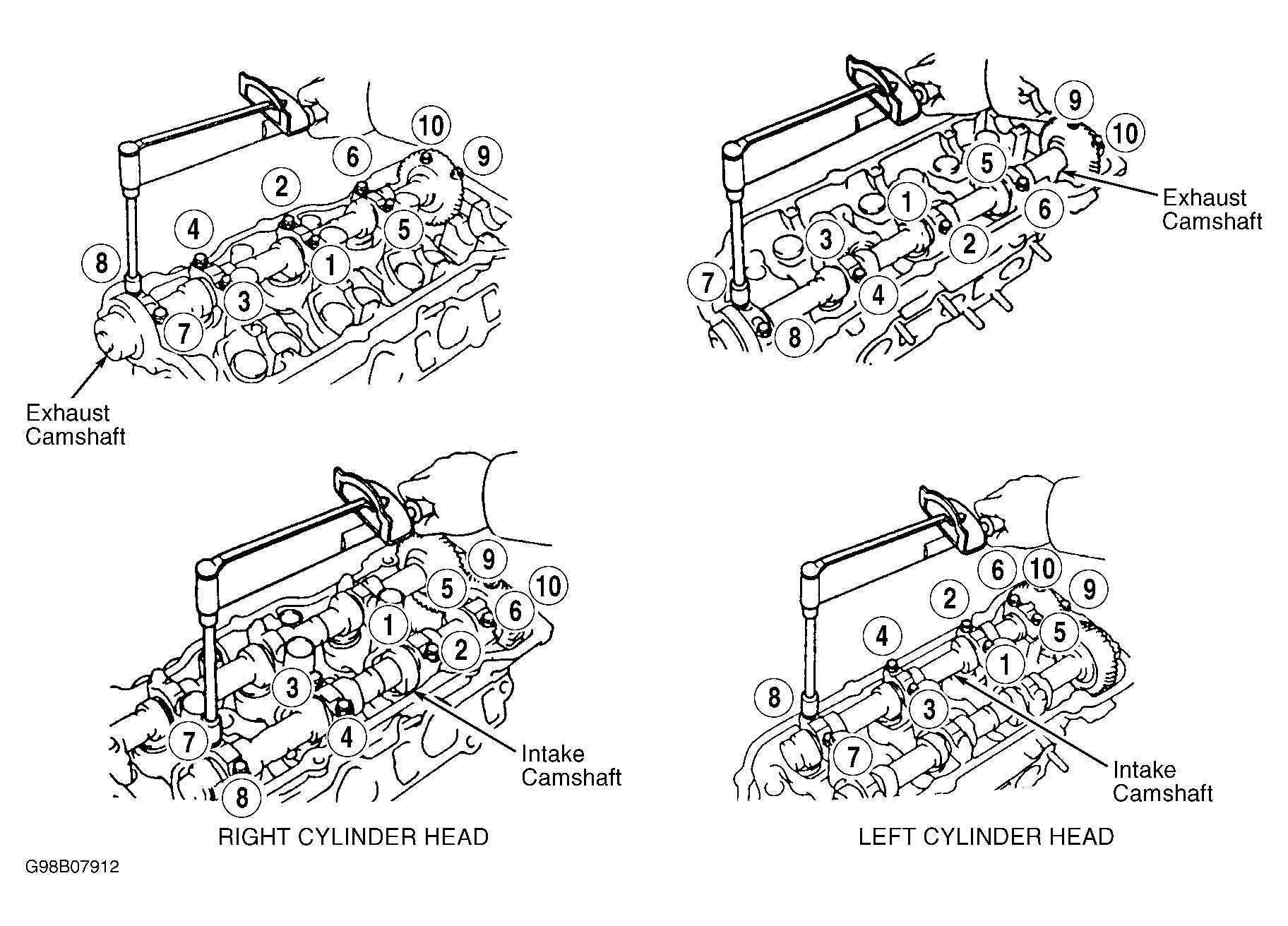

| Camshaft Bearing Cap Bolt |
12 (16) |
| Camshaft Timing Sprocket Bolt |
92 (125) |
| Connecting Rod Bolt |
| Step 1 |
18 (24) |
| Step 2 |
Additional 90 Degrees |
| Coolant Drain Union |
29 (39) |
| Coolant Inlet Pipe Bracket Bolt |
14 (19) |
| Coolant Outlet Housing Bolt/Nut |
11 (15) |
| Crankshaft Timing Sprocket Bolt |
159 (216) |
| Cylinder Head Bolt |
| 12-Point Bolt |
| Step 1 |
40 (54) |
| Step 2 |
Additional 90 Degrees |
| Recessed Bolts |
13 (18) |
| Drive Plate Bolt (A/T) |
61 (83) |
| Engine Hanger-To-Cylinder Head Bolt |
29 (39) |
| Engine Mount Absorber Bolt |
35 (47) |
| Engine Mount-To-Transaxle Bolt |
47 (64) |
| Engine Mounting Bracket-To-Cylinder Block Bolt |
21 (28) |
| Engine Mount (Rear) Insulator Bolt |
47 (64) |
| Engine Mount Stay Bolts |
23 (32) |
| Engine Stabilizer Rod Bolt |
47 (64) |
| Engine Suspension Upper Brace Bolts |
59 (80) |
| Exhaust Manifold-To-Engine Nuts |
36 (49) |
| Exhaust Manifold Stay Bolts |
25 (34) |
| Exhaust Pipe Support Bracket Bolts |
15 (21) |
| Exhaust Pipe Stay Nuts |
24 (33) |
| Flywheel Bolts (M/T) |
61 (83) |
| Front Engine Mount-To-Crossmember Bolt |
| Toyota Motor Corporation (TMC) Bolt |
59 (80) |
| Toyota Motor Manufacturing (TMMK) Bolt |
49 (66) |
| Front Engine Mount-To-Cylinder Block Bolt |
47 (64) |
| Front Engine Mount Insulator-To-Frame Bolt |
| TMC |
59 (80) |
| TMMK |
| Silver Bolt |
32 (44) |
| Green Bolt |
48 (66) |
| Front Exhaust Pipe Lower Bracket Nuts |
24 (33) |
| Front Exhaust Pipe Upper Bracket Nuts |
15 (20) |
| Front Exhaust Pipe-To-Catalytic Converter Bolt/Nut |
41 (56) |
| Front Exhaust Pipe-To-Exhaust Manifold Nut |
46 (62) |
| Fuel Pipe-To-Fuel Filter Nut |
21 (29) |
| Generator Adjusting Bar Bracket Bolt |
13 (18) |
| Generator Bracket-To-Engine Bolt |
32 (43) |

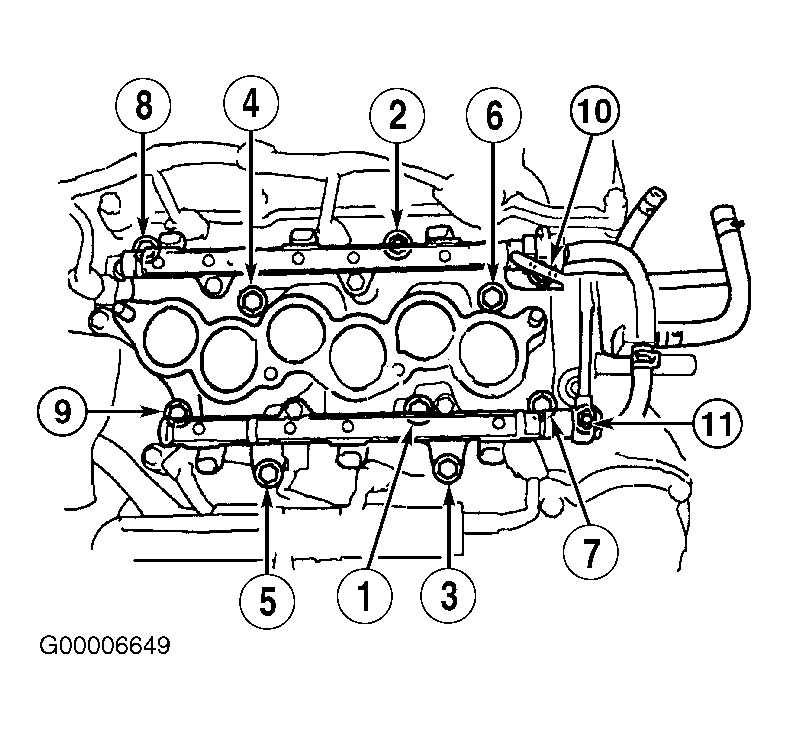

| Intake Manifold Bolt/Nut |
11 (15) |
| Knock Sensor |
29 (39) |
| Main Bearing Cap-To-Cylinder Block 12-Point Bolts |
| Step 1 |
16 (22) |
| Step 2 |
Additional 90 Degrees |
| Main Bearing Cap Side Bolts |
20 (27) |
| No. 1 Idler Pulley Bolt |
25 (34) |
| No. 2 Idler Pulley Bolt |
32 (43) |
| No. 2 Idler Pulley Bracket Bolt |
21 (28) |
| No. 2 Right Engine Mount Stay Bolt |
47 (64) |
| Oil Filter Union |
22 (30) |
| Oil Pan Drain Plug |
32 (44) |
| Oil Pump Bolt |
| 10-mm Bolt |
|
| 12-mm Bolt |
14 (19) |
| Oxygen Sensor |
32 (44) |
| Power Steering Pump Bolt |
32 (43) |
| Power Steering Pump Bracket Bolt |
32 (43) |
| Power Steering Pump Mounting Bolts |
32 (43) |
| Rear Engine Mount-To-Cylinder Block Bolt |
47 (64) |
| Relief Valve Plug |
27 (37) |
| Right Engine Mount Brace Bolt |
23 (31) |
| Right Engine Mount Bracket-To-Engine Bolt |
21 (28) |
| Spark Plug |
13 (18) |
| Stabilizer Bar Link-To-Lower Control Arm Nut |
29 (39) |
| Throttle Body Bolt/Nut |
14 (19) |
| Tie Rod Nut |
36 (49) |
| Timing Belt Idler Pulleys |
| No. 1 Idler Pulley Bolt |
25 (34) |
| No. 2 Idler Pulley Bolt |
32 (43) |
| Timing Belt Tensioner Bolt |
20 (27) |
| Torque Converter Bolt |
30 (41) |
| Upper Oil Pan Bolts |
| 10-mm Bolt |
|
| 12-mm Bolt |
14 (19) |
| 14-mm Bolt |
27 (37) |
| Water Outlet Housing Bolts |
11 (15) |
| Water Seal Plate Bolts |
13 (18) |
| Wheel Lug Nut |
76 (103) |
| INCH Lbs. (N.m) |
| Baffle Plate Bolt |
71 (8.0) |
| Camshaft Sub-Gear |
48 (5.4) |
| Crankshaft Position Sensor Bolt |
71 (8.0) |
| Cover Plate-To-Upper Oil Pan Bolt |
71 (8.0) |
| Crankshaft Rear Oil Seal Housing Bolt |
71 (8.0) |
| Cylinder Head Rear Plate Bolt |
71 (8.0) |
| Delivery Pipe Bolt |
89 (10.0) |
| Drive Plate Cover Bolt |
69 (7.8) |
| EGR Cooler-To-Cylinder Block Bolt |
80 (9) |
| EGR Pipe Nut |
106 (12.0) |
| EGR Valve-To-Air Intake Chamber Nut |
106 (12.0) |
| Ignition Coil Bolt |
71 (8.0) |
| Main Bearing Oil Seal Retainer Bolt |
71 (8.0) |
| Lower Oil Pan Bolt/Nut |
71 (8.0) |
| Pick-Up Tube Bolt/Nut |
71 (8.0) |
| Pressure Regulator Bolt |
71 (8.0) |
| Rear Oil Seal Retainer Bolt |
71 (8.0) |
| Timing Belt Cover Bolts |
75 (8.5) |
| Timing Belt Plate Bolt |
71 (8.0) |
| Valve Cover Bolt |
71 (8.0) |
| Vacuum Switching Valve Assembly Nut |
71 (8.0) |
| Water Inlet Housing |
71 (8.0) |
| Water Pump Bolt/Nut |
71 (8.0) |
