Driver Side J/B

NOTE: Driver side J/B is located under the driver's side of the instrument panel. See Fig 1.

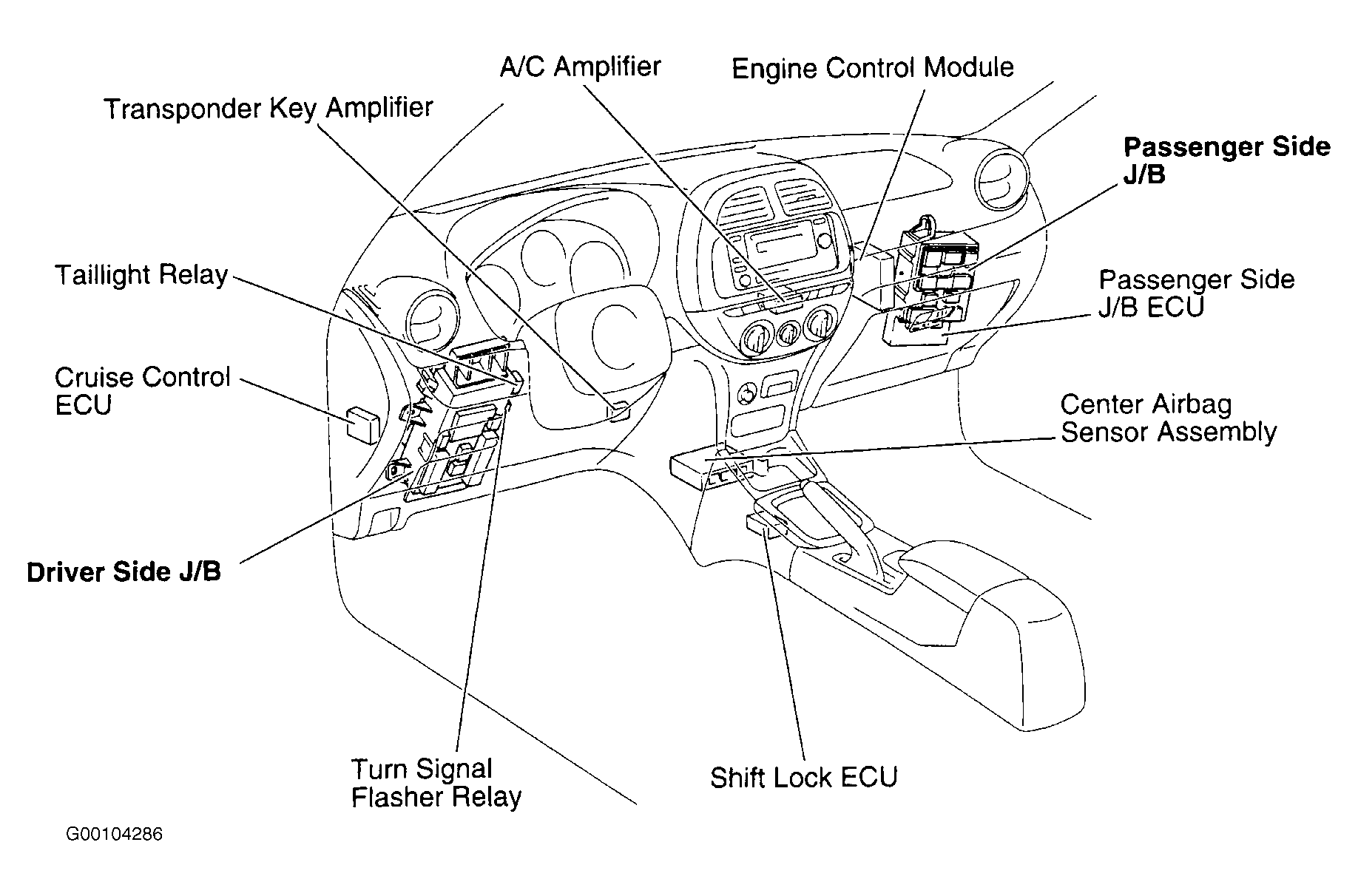

Fig 1: Locating Instrument Panel Electrical Components
G00104286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

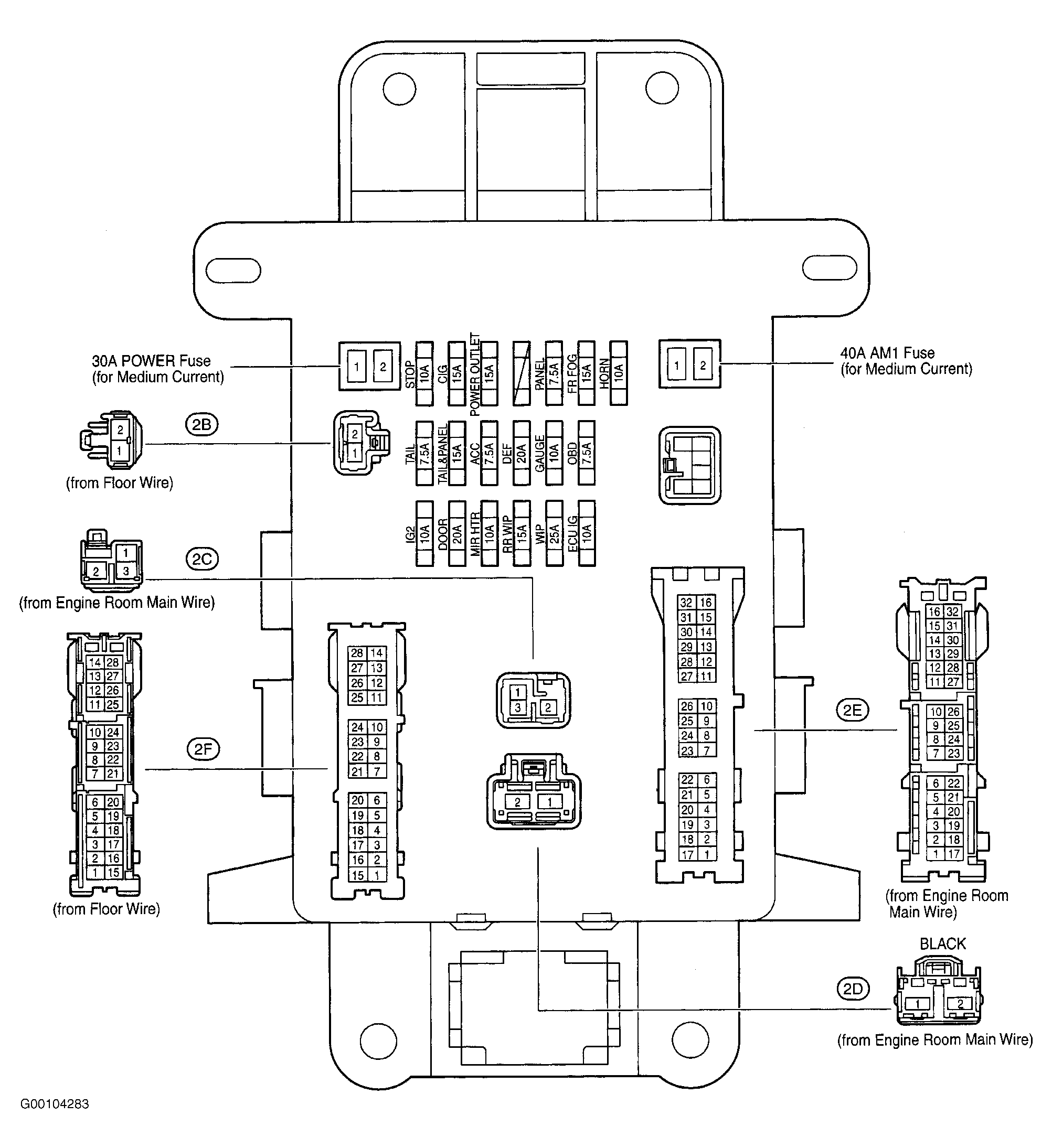

Fig 2: Identifying Driver Side J/B Components
G00104283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

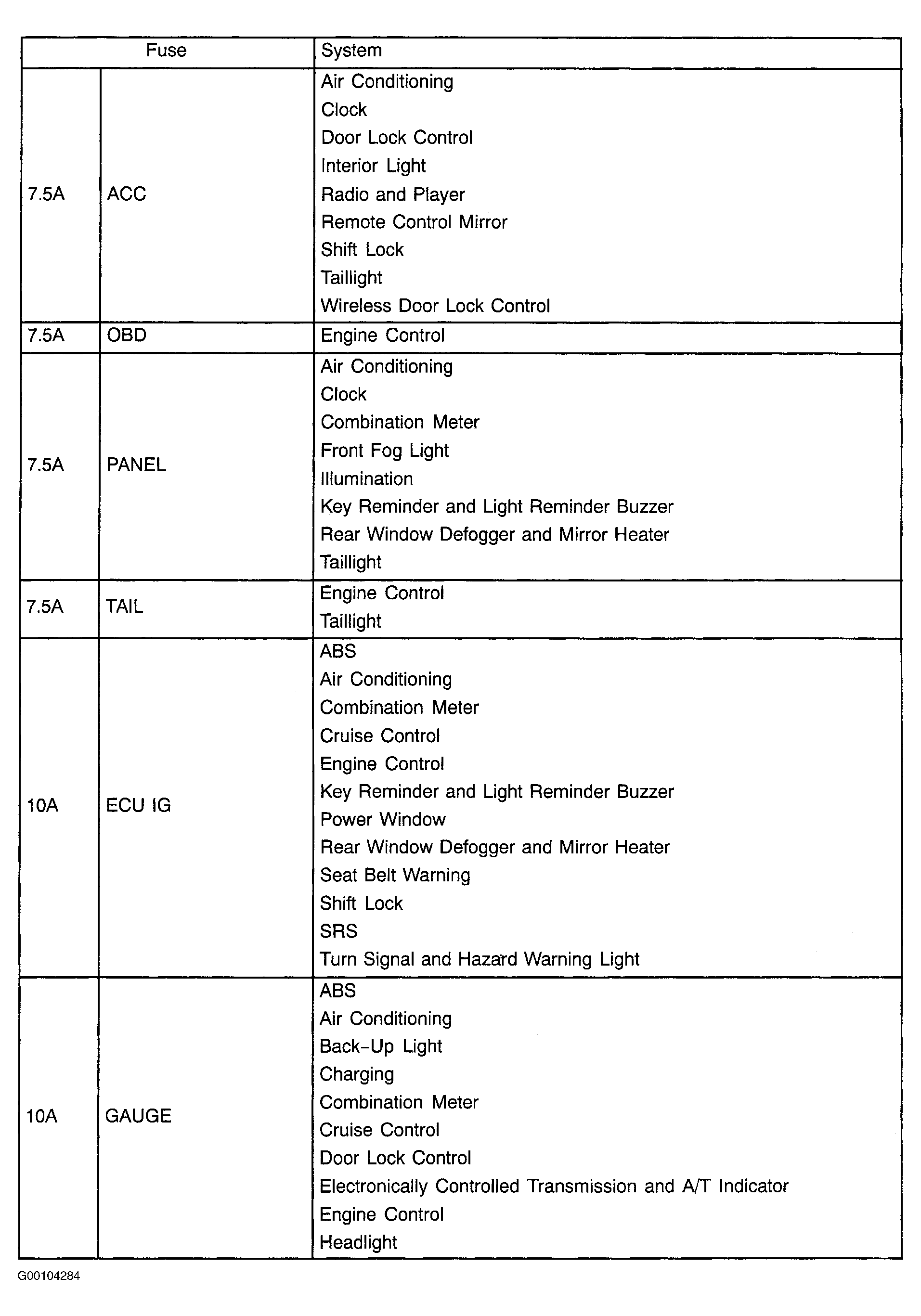

Fig 3: Driver Side J/B Legend (1 Of 2)
G00104284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

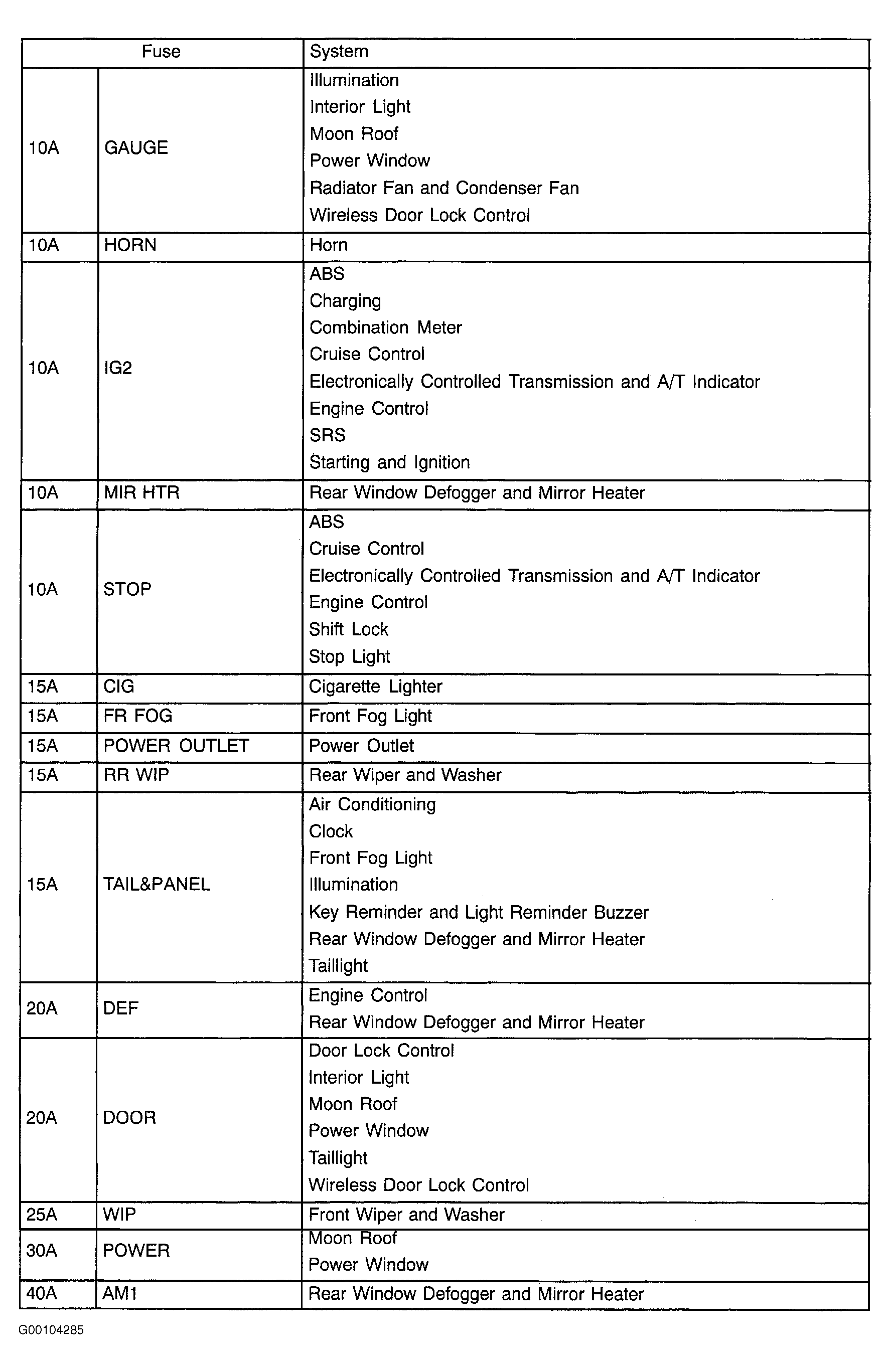

Fig 4: Driver Side J/B Legend (2 Of 2)
G00104285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
