Inspect Speed Sensor (Resolver) And Temperature Sensor
Using an ohmmeter, measure resistance at each terminals.

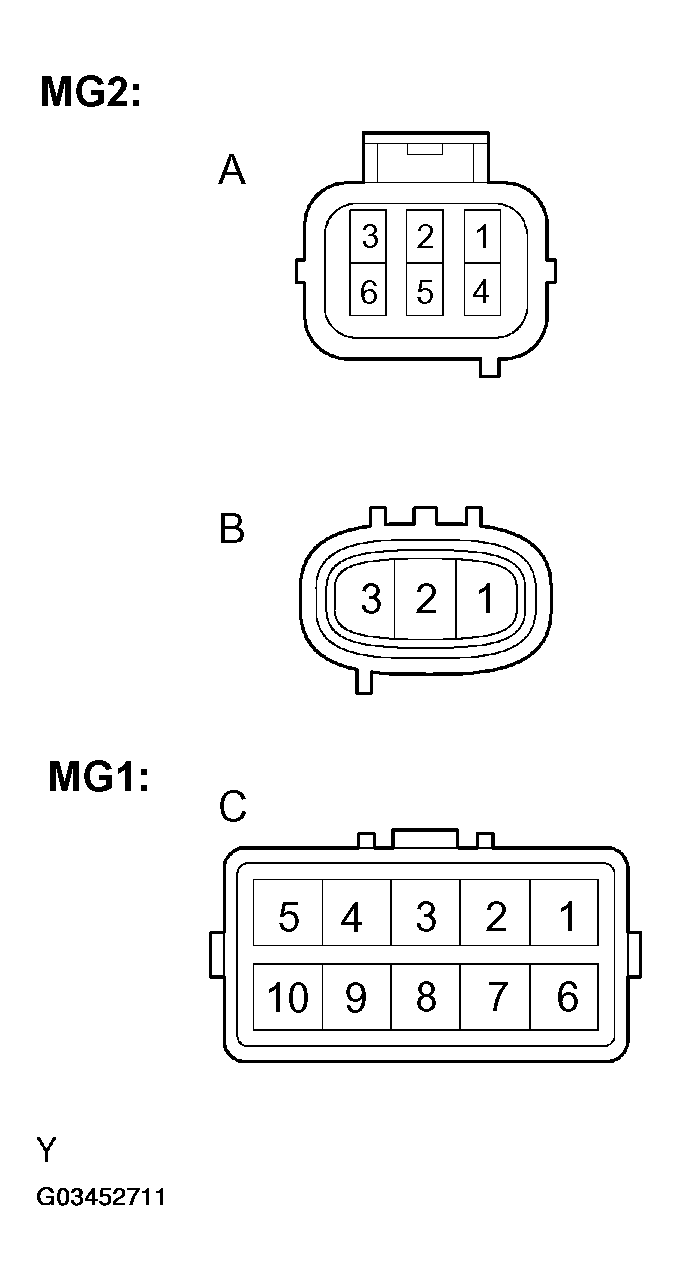

TERMINALS AND RESISTANCE SPECIFICATIONS
| Terminal | Specification |
|---|---|
| A, 1 - A, 4 (M - REF <-> M - GREF) | 7.65 - 10.2 Ω |
| A, 2-A, 5(M - SIN.m - GSIN) | 12.6 - 16.8 Ω |
| A, 3 - A, 6 (M - COS <-> M - GCOS) | 12.6 - 16.8 Ω |
| B, 1 - B, 3 (M - MOTT <-> M - GMOTT) | 87.3 - 110.5 kΩ at 10° C (50° F) 23.8 -28.5 kΩ at 40° C(104° F) |
| C, 1 - C, 6 (G - REF <-> G - GREF) | 7.65 - 10.2 Ω |
| C, 2 - C, 7 (G - SIN <-> G - GSIN) | 12.6 - 16.8 Ω |
| C, 3 - C, 8 (G - COS <-> G - GCOS) | 12.6 - 16.8 Ω |
| C, 4 - C, 9 (G - MOTT <-> G - GMOTT) | 87.3 - 110.5 kΩ at 10 °C (50 °F) 23.8 -28.5 kΩ at 40° C(104° F) |
NOTE:

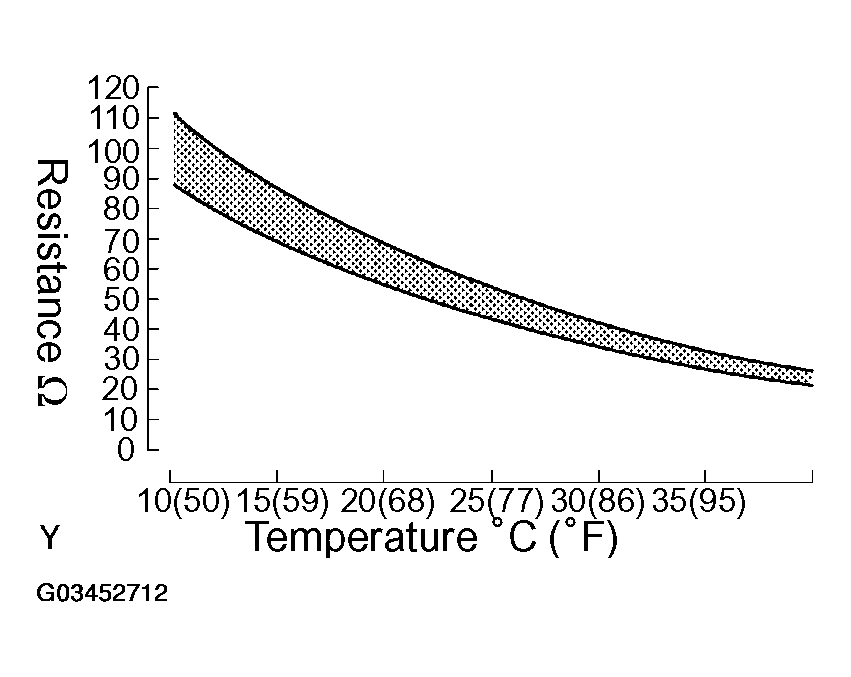

The range of standard values for the temperature sensor is shown in Fig 2.
