Check Continuity

Using an ohmmeter, check continuity between the terminals.

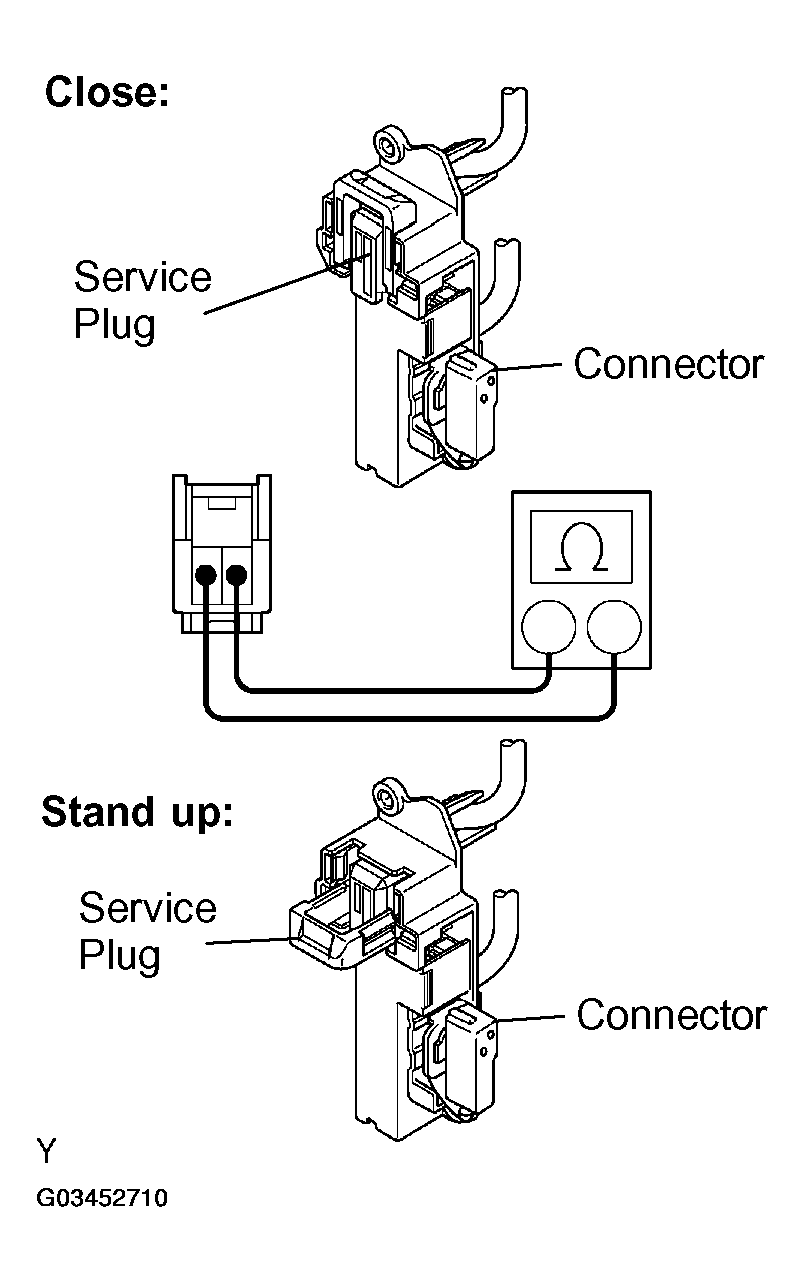

Fig 1: Checking Continuity Between Service Plug Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SERVICE PLUG LEVER POSITION AND CONDITION SPECIFICATIONS

Service plug lever	Specified condition
Close	Continuity
Stand up	No continuity
