Inspect Power Cable

If any damage mentioned below is identified at visual inspection, replace the power cable.

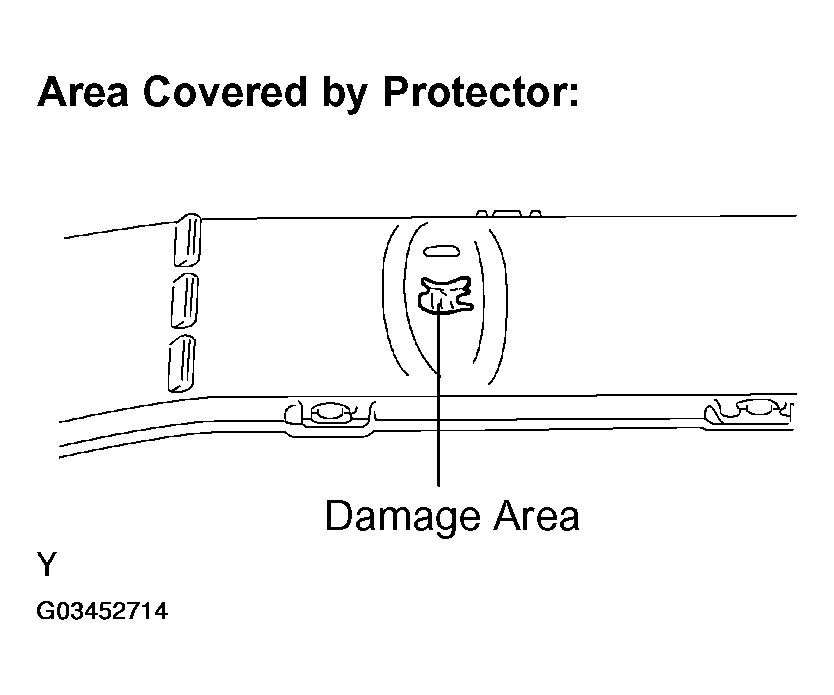

Fig 1: Locating Power Cable Damaged Area (At Area Cover By Protector)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Area covered by protector:

   When the protector is so damaged that the corrugate tube for the power cable inside the protector is exposed.

2. Other area:

   When the corrugate tube is so damaged that the coating inside the power cable is exposed.

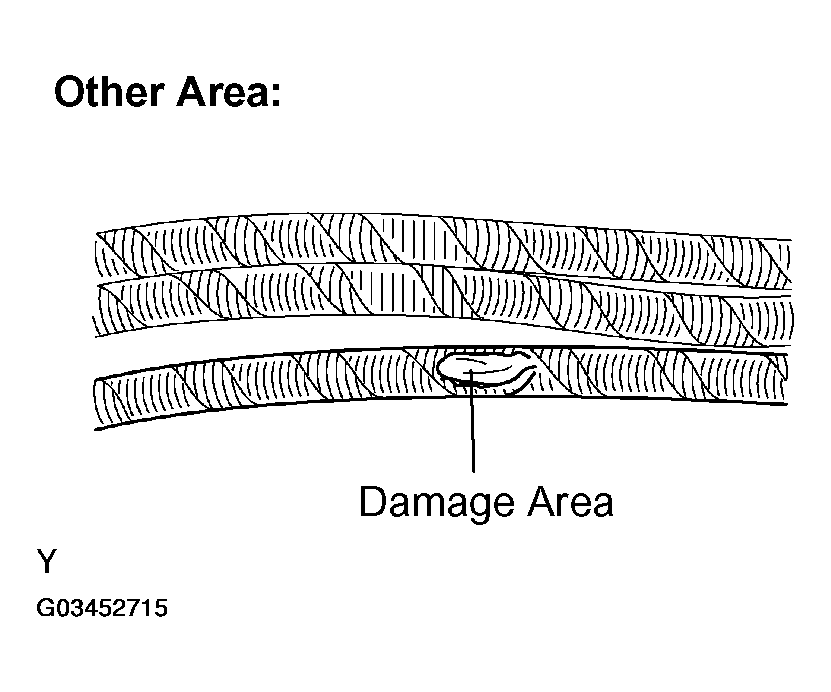

   Fig 2: Locating Power Cable Damaged Area (At Other Area)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
