Power Cable: Components

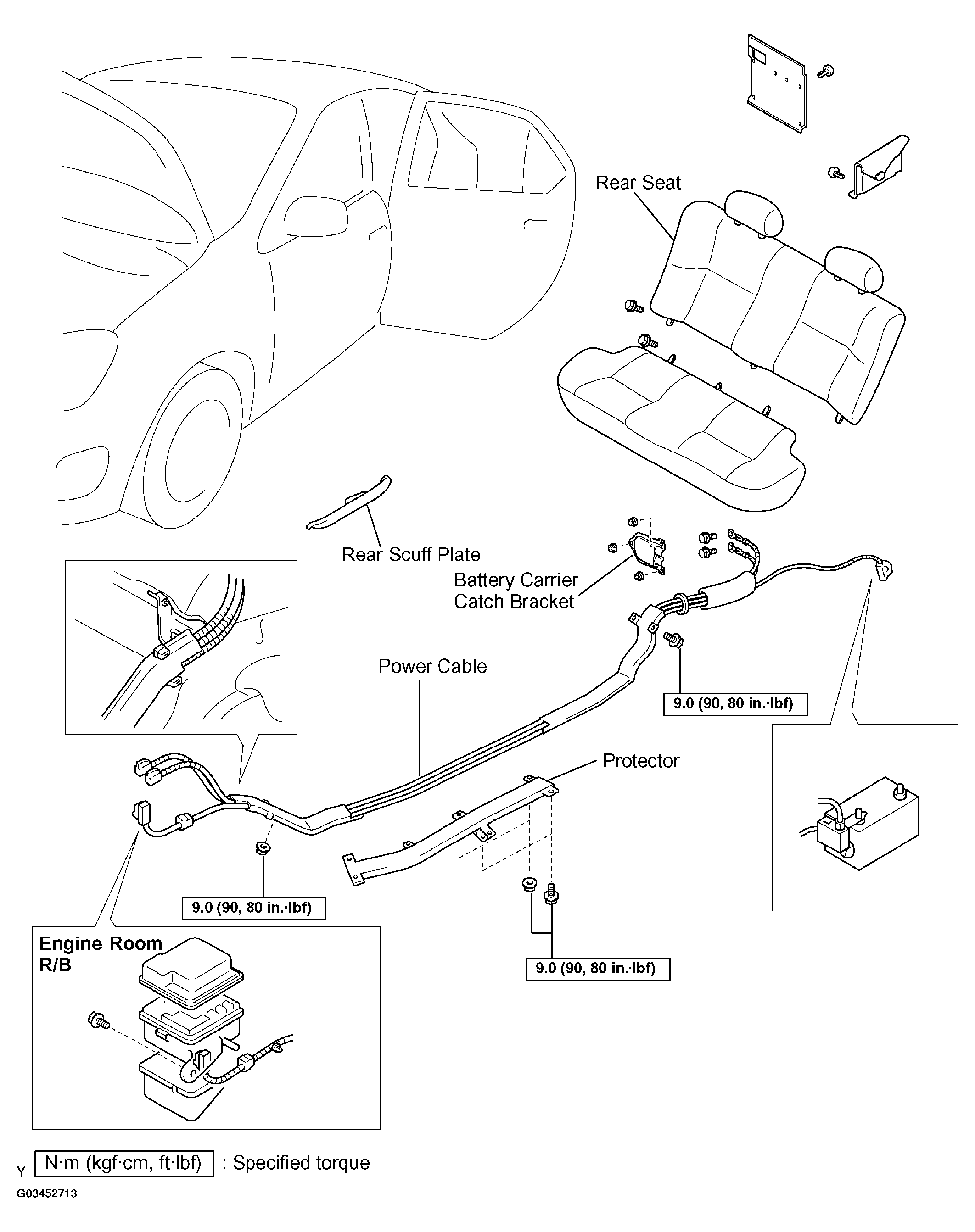

Fig 1: Removing Power Cable And Related Components With Specified Torques
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
