Inverter Radiator: Components

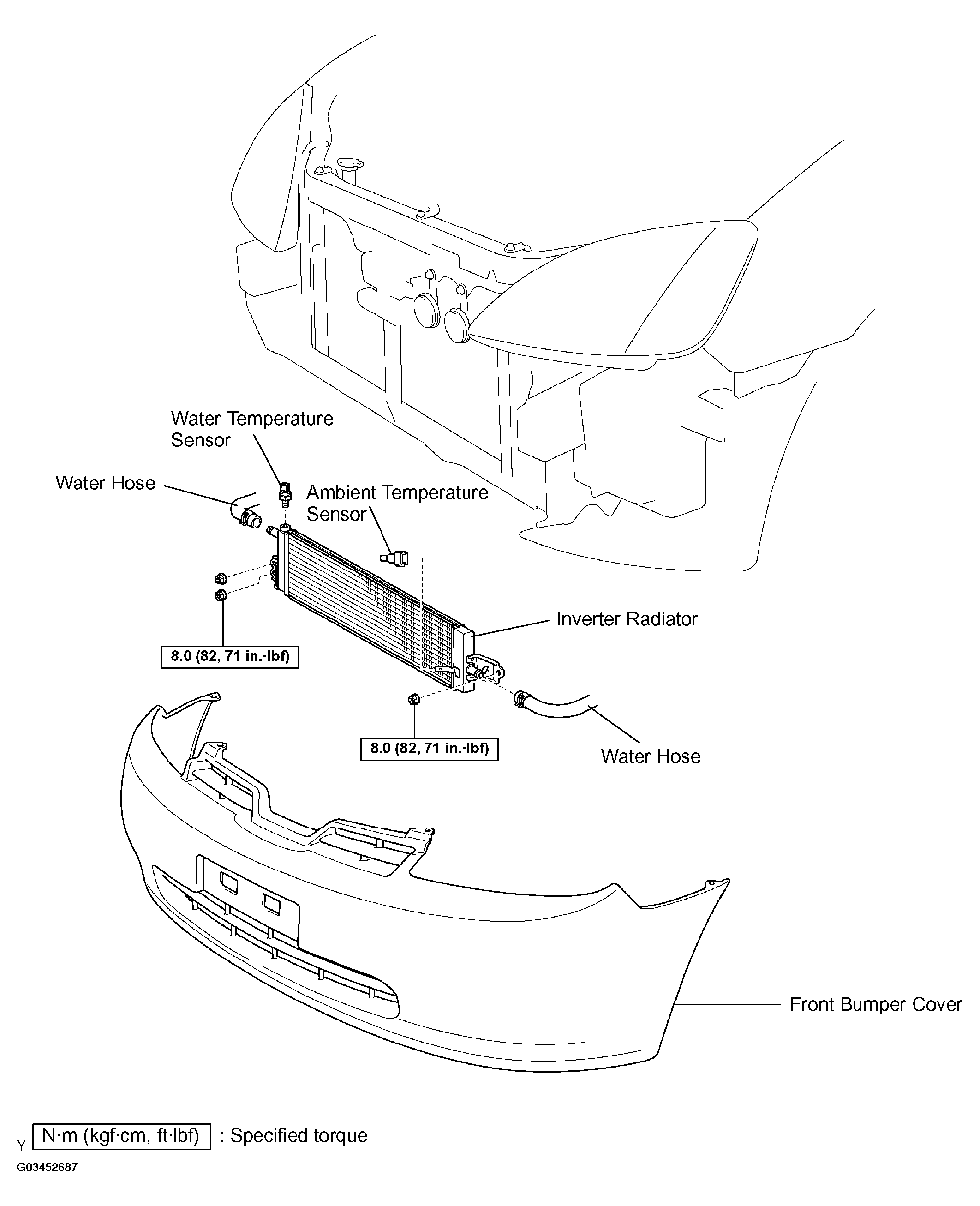

Fig 1: Exploded View Of Inverter Radiator Components And Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
