HV Water Pump: Components

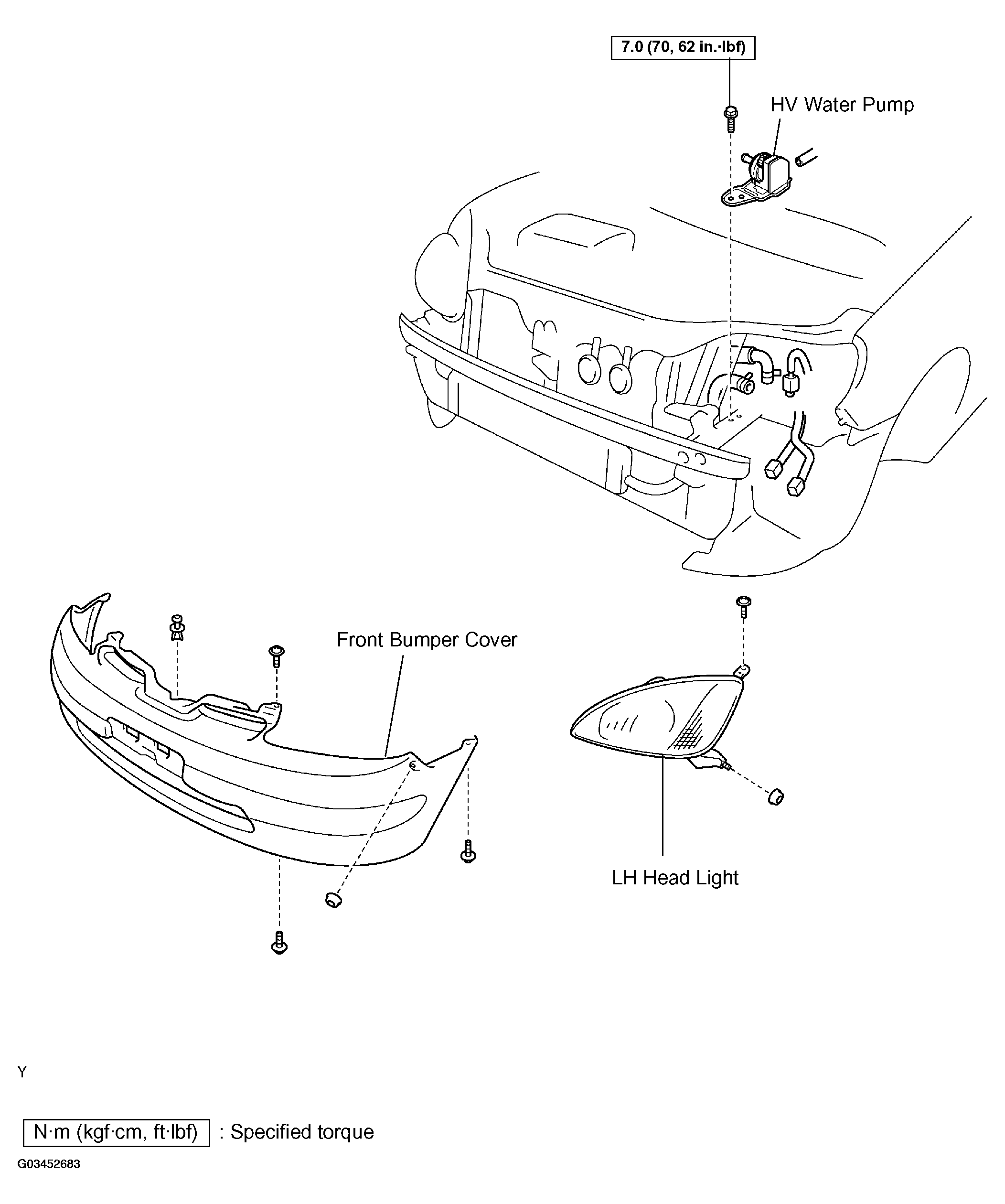

Fig 1: Removing HV Water Pump And Related Components

G03452683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
