HV Battery: Components

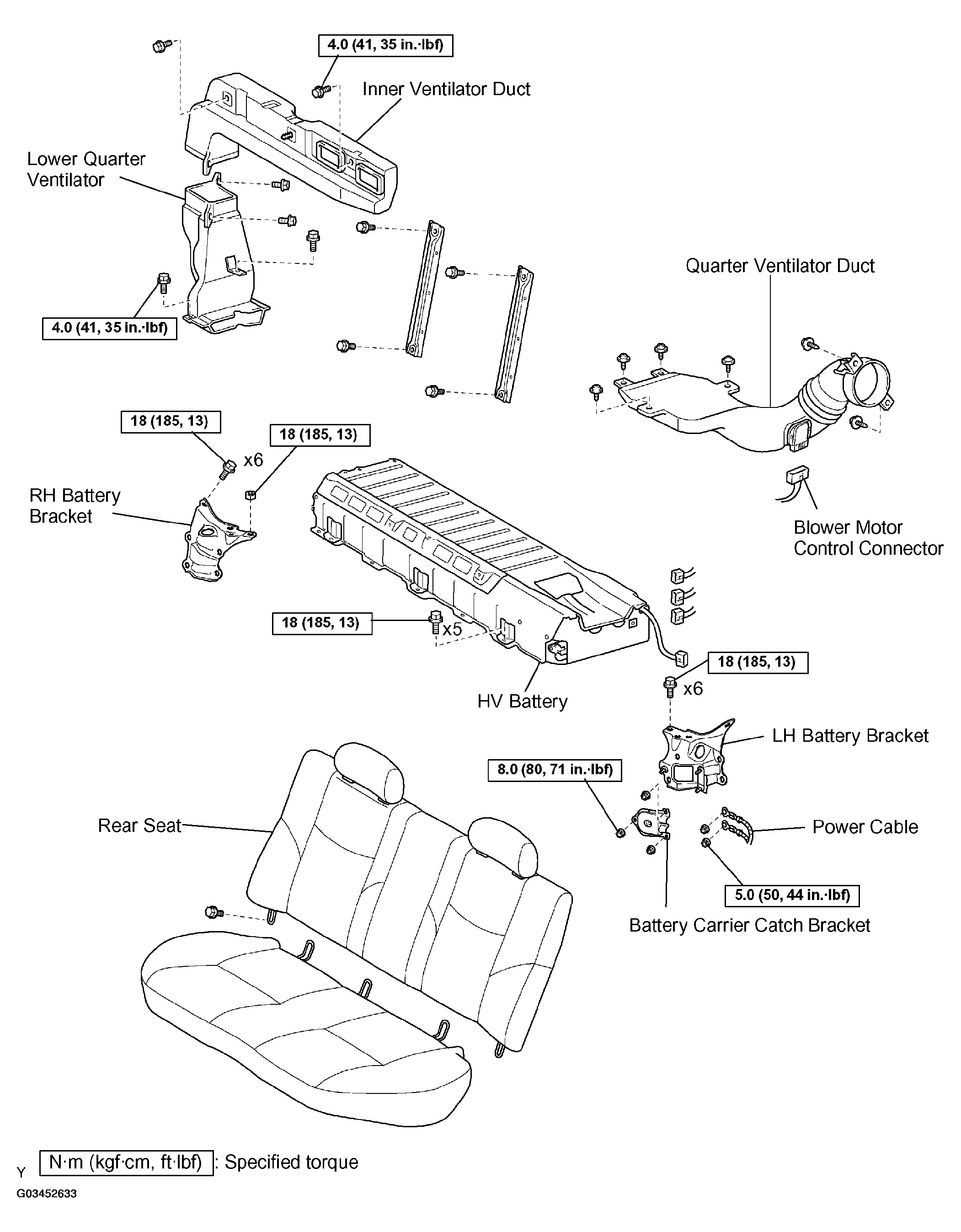

Fig 1: Exploded View Of HV Battery Components And Torque Specifications (1 Of 2)
G03452633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

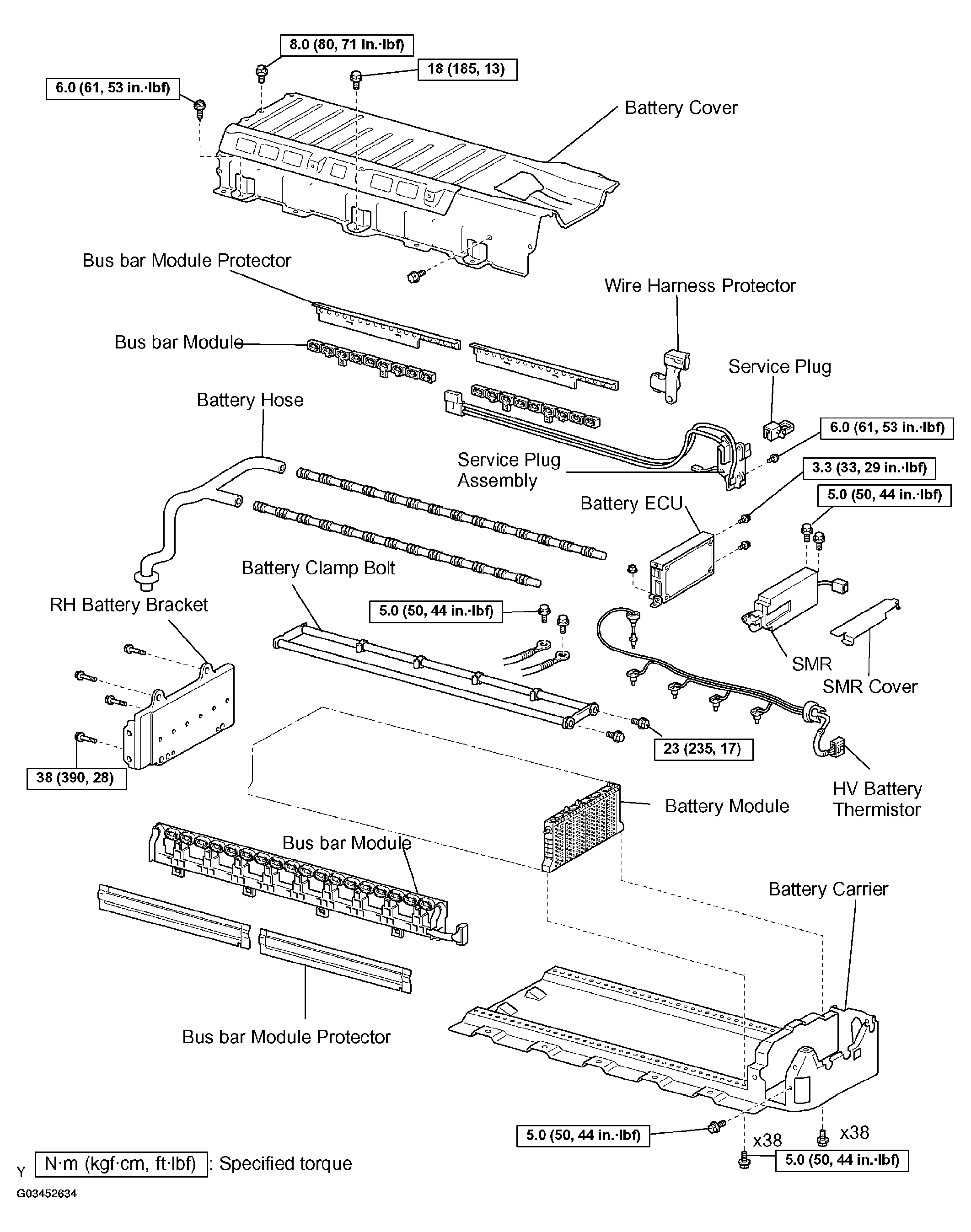

Fig 2: Exploded View Of HV Battery Components And Torque Specifications (2 Of 2)
G03452634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
