Install Blower Motor Control

Using an air riveter or hand riveter, install the blower motor control.

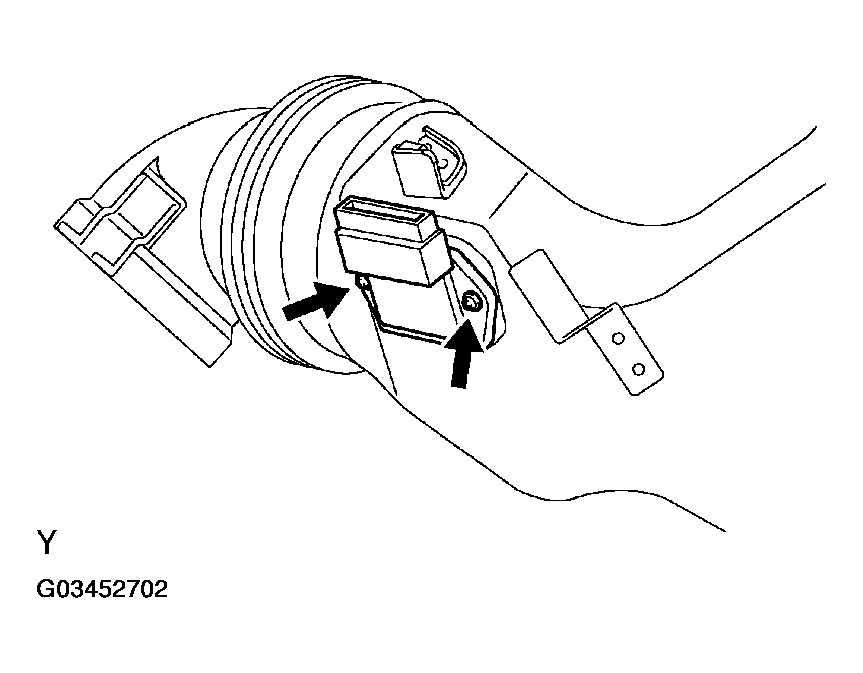

Fig 1: Installing Blower Motor Control

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAUTION:

Do not prize a riveter, as riveter is damaged, it is not tightened and the mandrel is bent.

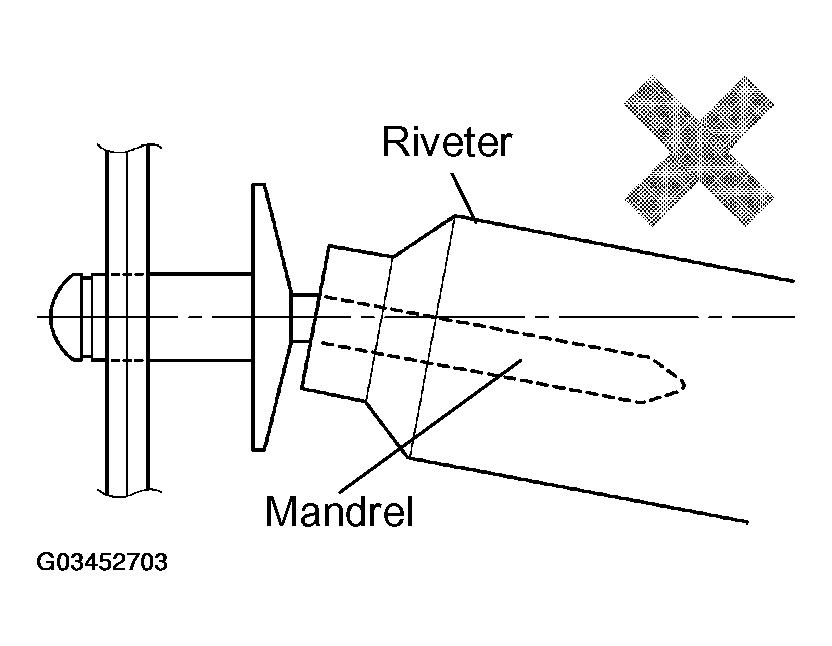

Fig 2: Precautions For Handling Riveter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Do not tilt the riveter and disconnect the rivet from the material while handling a riveter, as the materials are not tightened firmly.

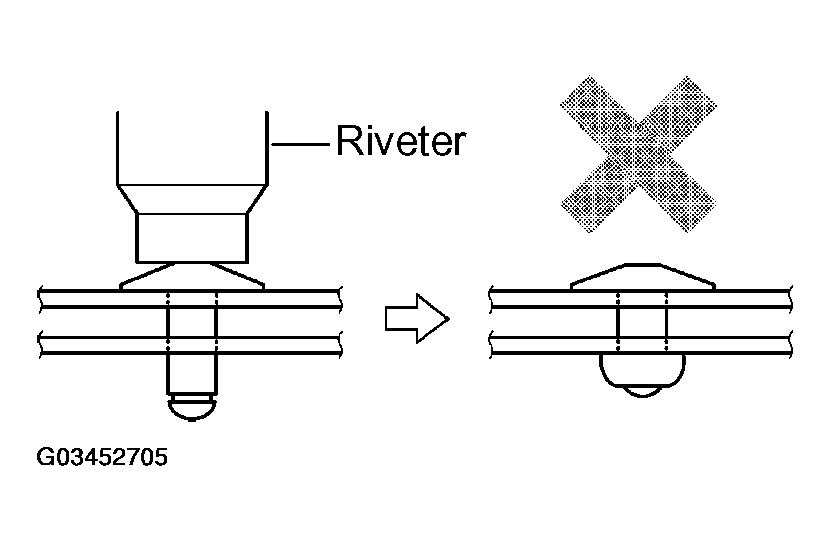

Fig 3: Precautions For Installing Riveter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the rivet while attaching materials, as they are not tightened firmly.

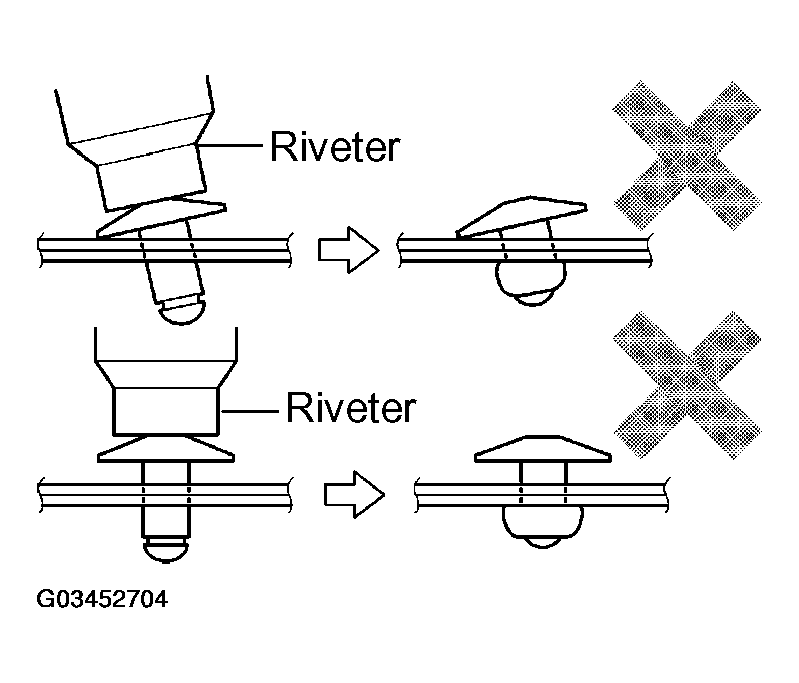

Fig 4: Identifying Proper Installation Of Riveter
