HV Battery Cooling: Components

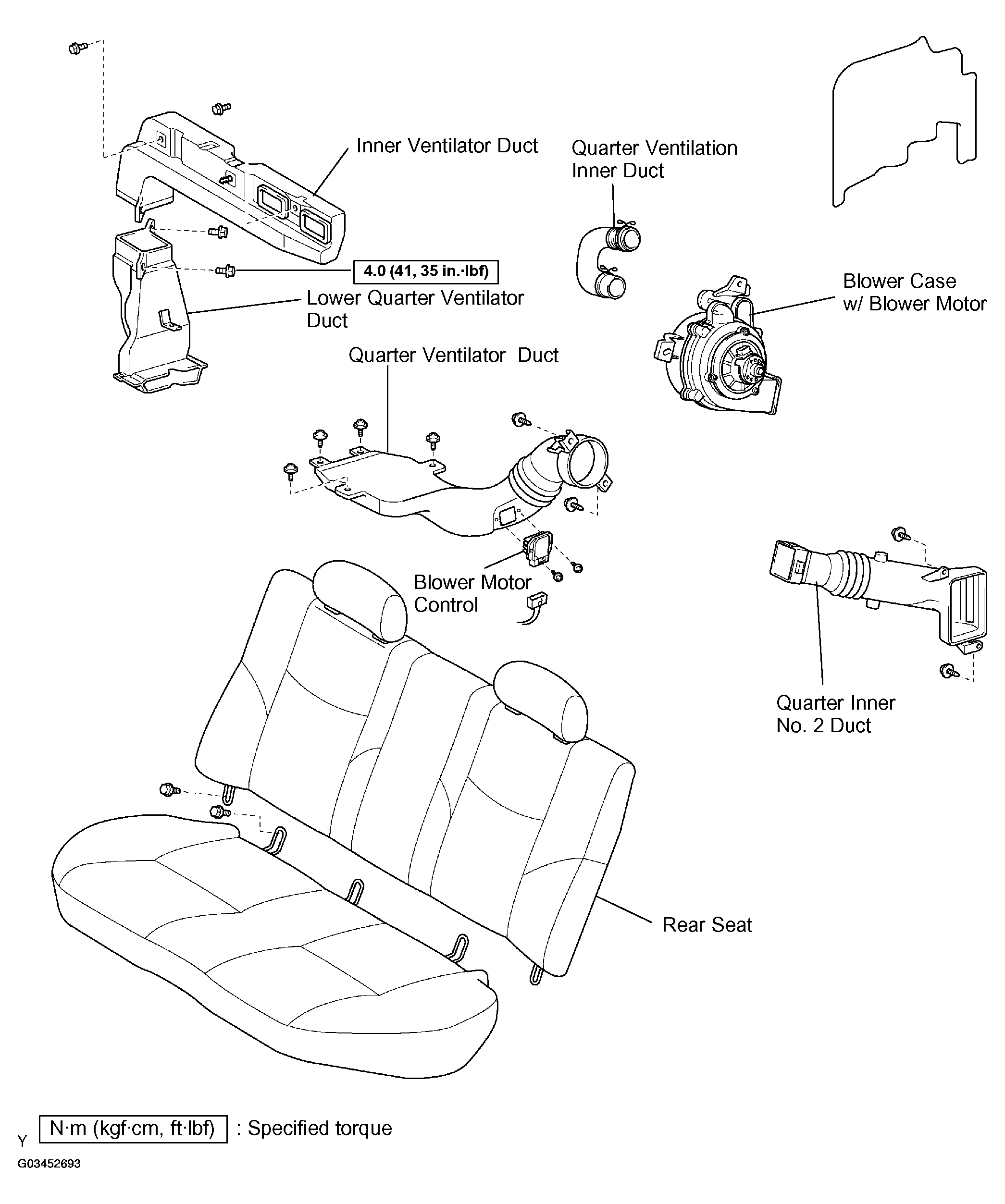

Fig 1: Exploded View Of HV Battery Cooling Components

G03452693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
