Converter And Inverter Assembly: Components

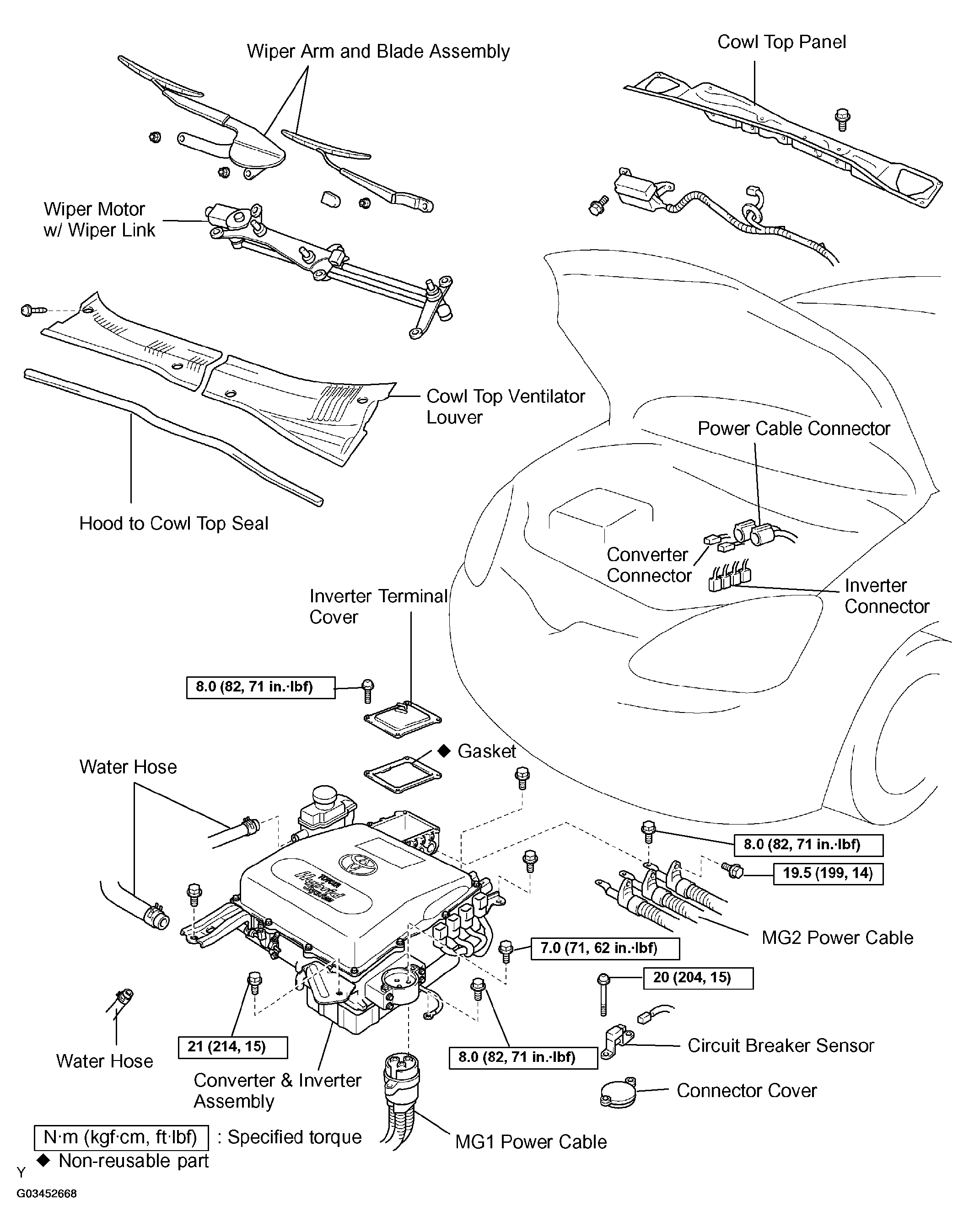

Fig 1: Exploded View Of Converter And Inverter Assembly Components (1 Of 2)
G03452668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

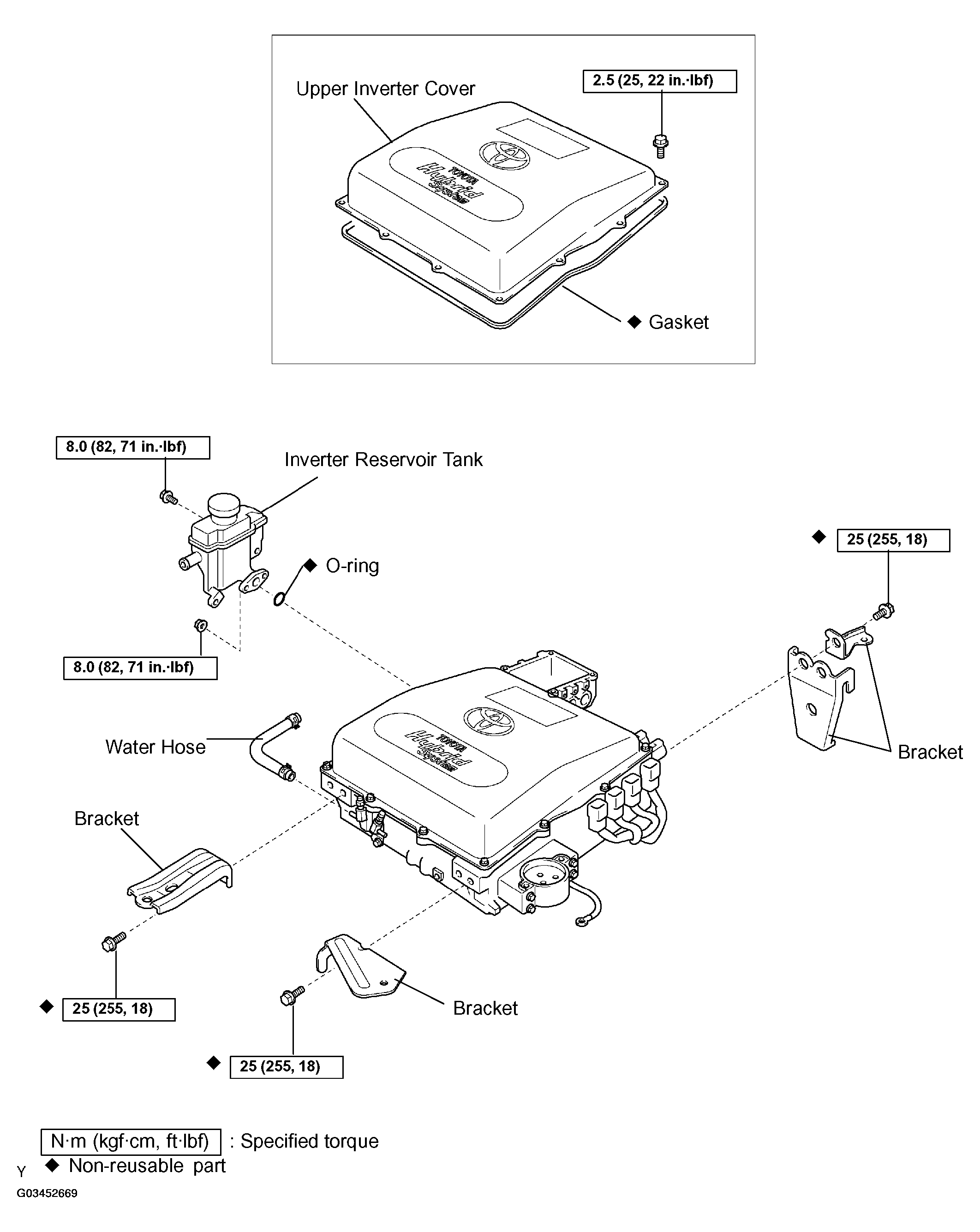

Fig 2: Exploded View Of Converter And Inverter Assembly Components (2 Of 2)
G03452669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
