Cylinder Block: Inspection
- Clean cylinder block
.

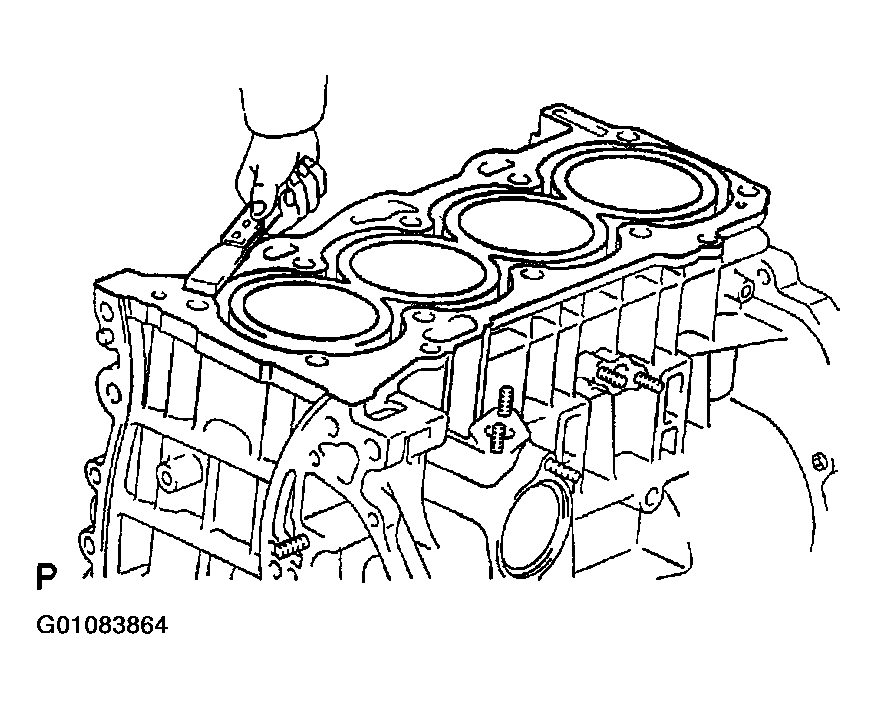

- Remove the gasket material.
Using a gasket scraper, remove all the gasket material from the top surface of the cylinder block.
- Clean the cylinder block.
Using a soft brush and solvent, thoroughly clean the cylinder block.
NOTE: If the cylinder is washed at high temperatures, the cylinder liner sticks out beyond the cylinder block, so always wash the cylinder block at a temperature of 45°C (133°F) or less.
- Remove the gasket material.
- Inspect cylinder block
.
- Inspect for flatness.

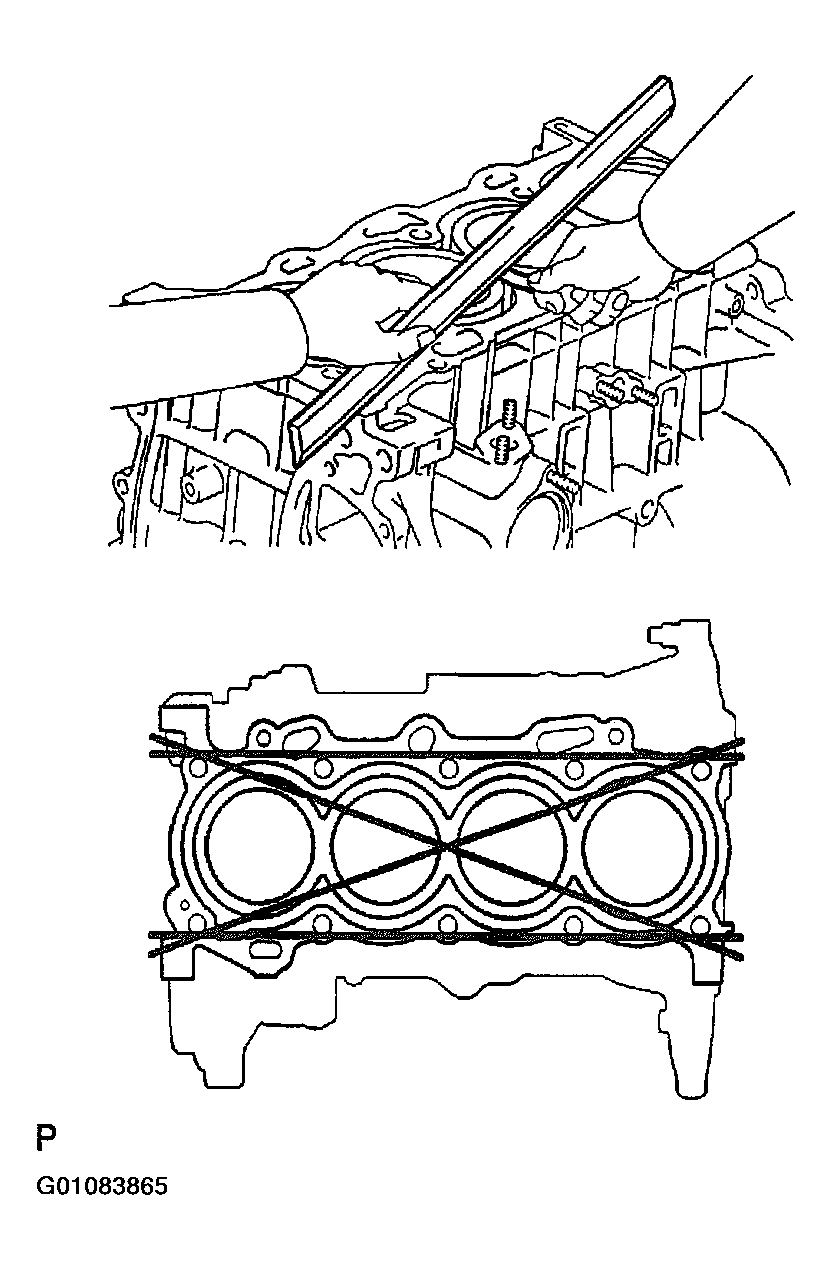

Using a precision straight edge and a feeler gauge, measure the surface contacting the cylinder head gasket for warpage.
- Maximum warpage: 0.08 mm (0.0031 in.)
If warpage is greater than maximum, replace the cylinder block.

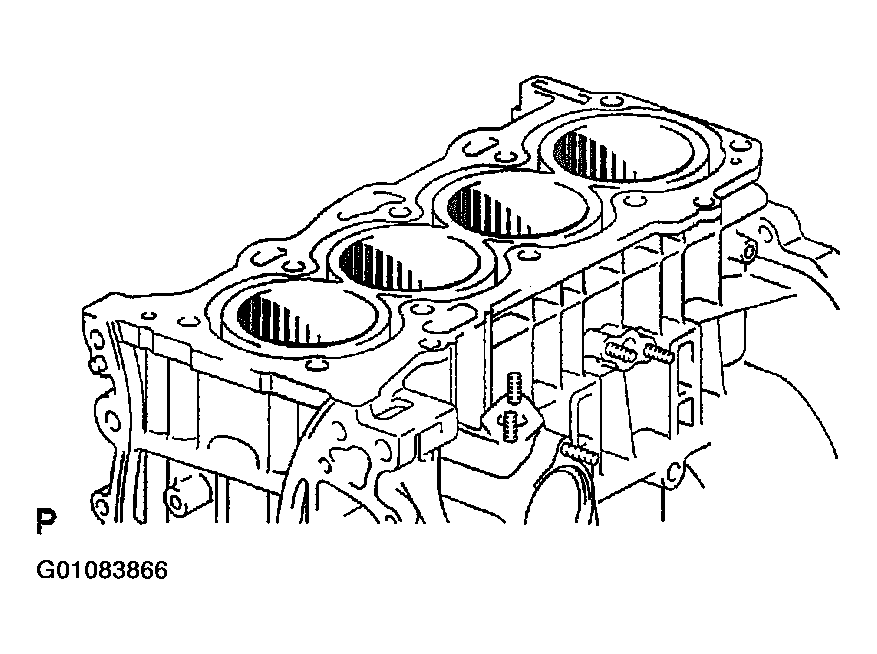

- Visually check the cylinder for vertical scratches.
If deep scratches are present, replace the cylinder block.
- Inspect the cylinder bore diameter.

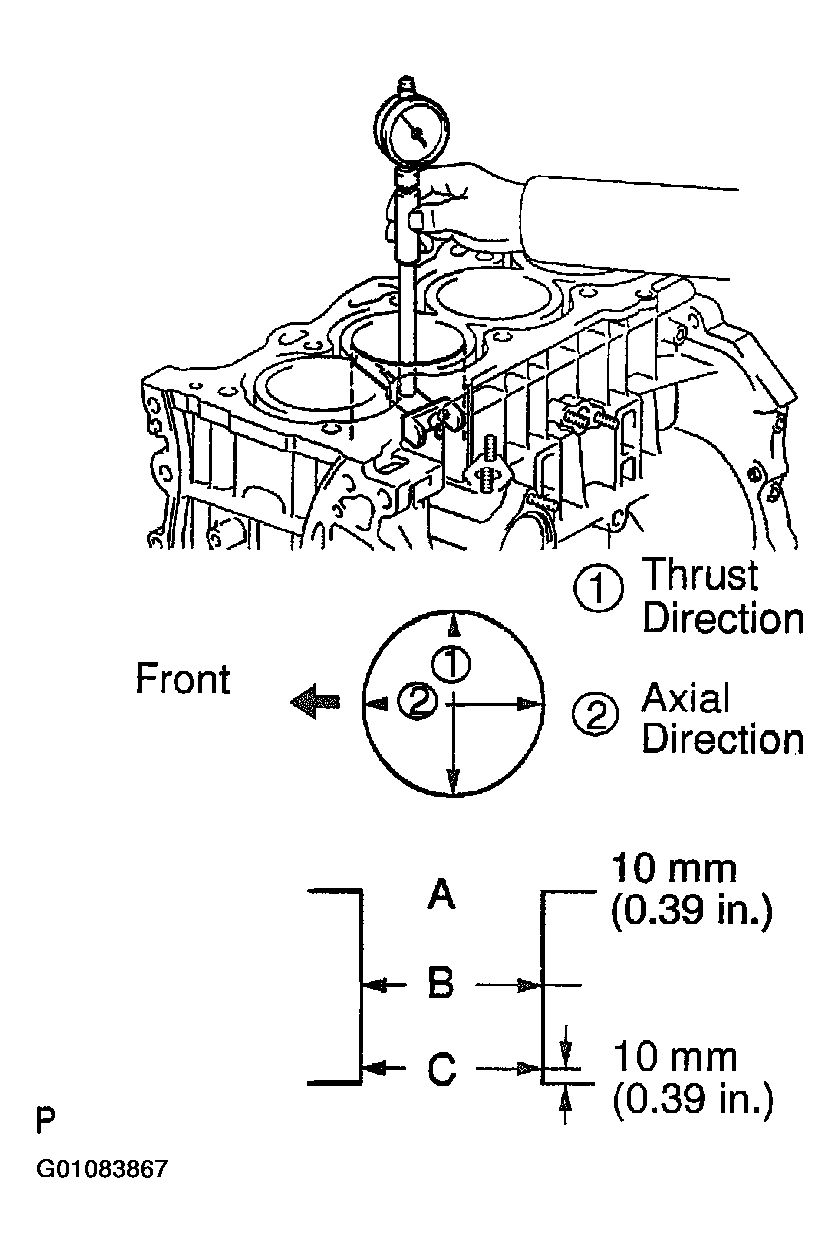

Using a cylinder gauge, measure the cylinder bore diameter at positions A, B and C in the thrust and axial directions.
- Standard diameter: 86.000 - 86.013 mm (3.3858 - 3.3863 in.)
- Maximum diameter: 86.013 mm (3.3863 in.)
If the diameter is greater than maximum, replace the cylinder block.
- Inspect for flatness.

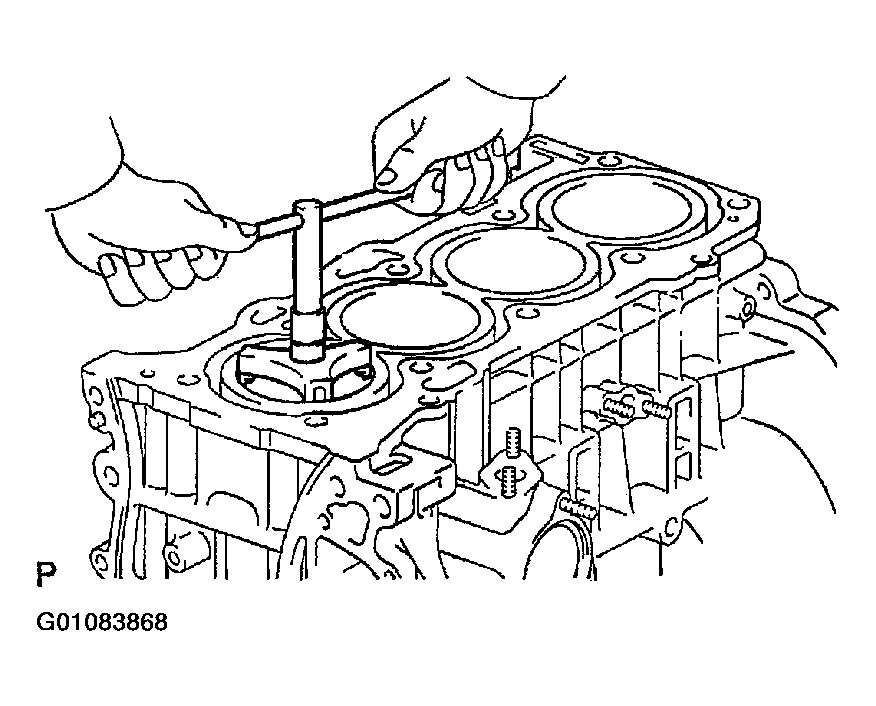

- Remove cylinder ridge
.
If the wear is less than 0.2 mm (0.008 in.), using a ridge reamer, grind the top of the cylinder.
- Inspect crankshaft bearing cap bolts
.

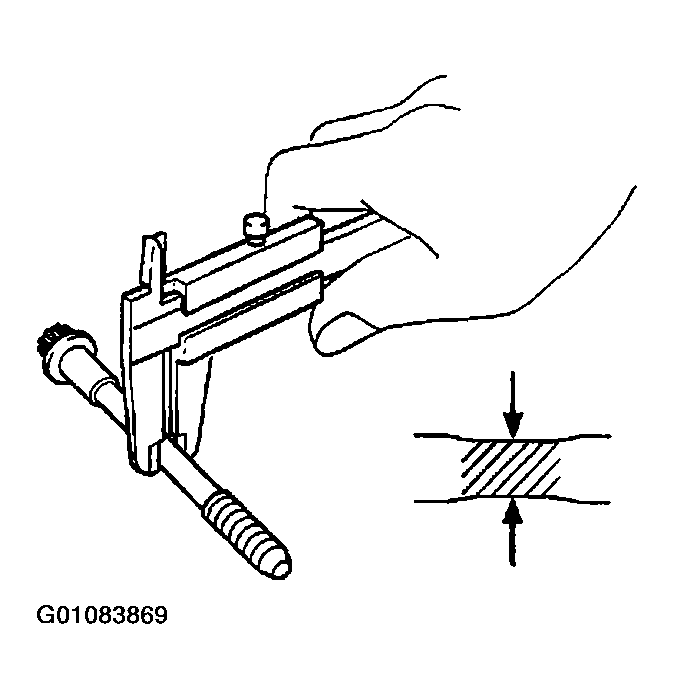

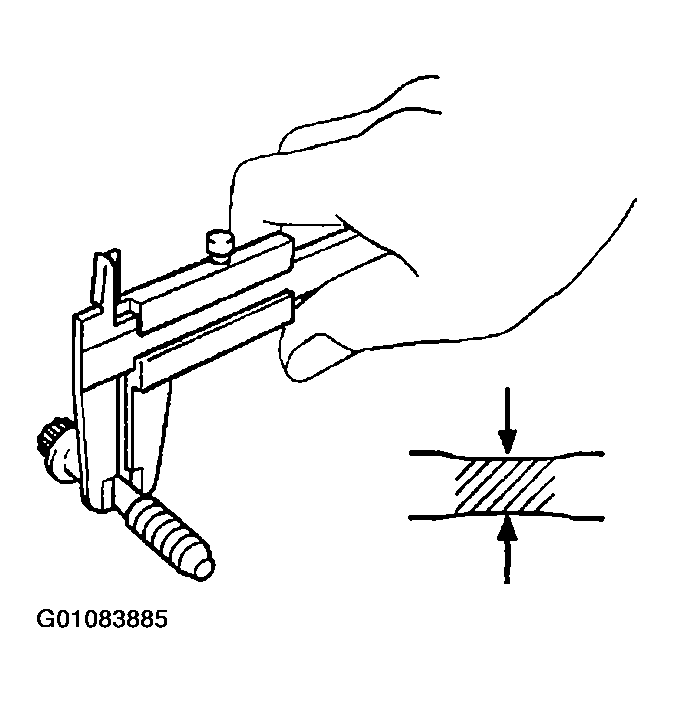

Using vernier calipers, measure the tension portion diameter of the bolt.
- Standard diameter: 7.5 - 7.6 mm (0.2953 - 0.2992 in.)
- Minimum diameter: 7.2 mm (0.284 in.)
If the diameter is less than minimum, replace the bolt.
- Clean piston
.

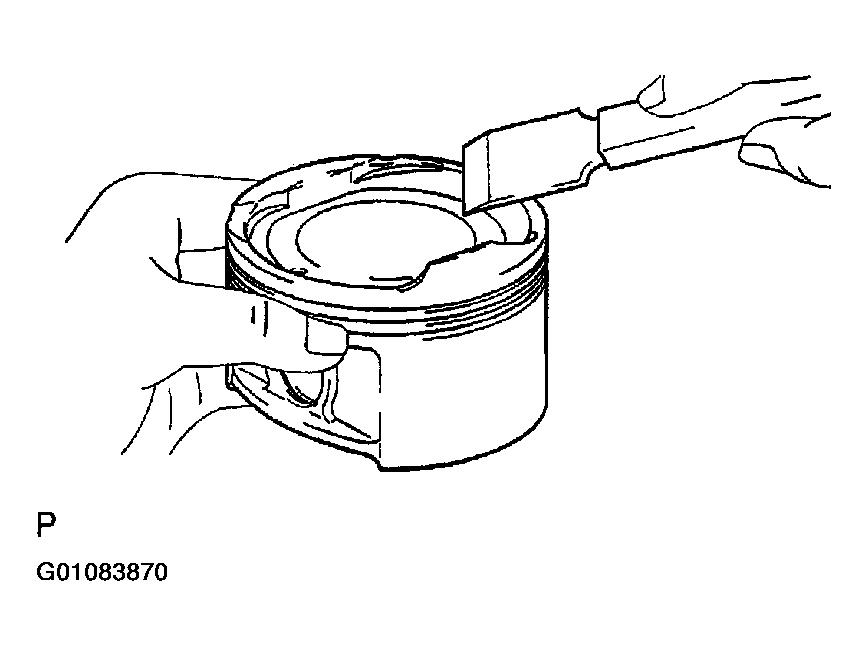

- Using a gasket scraper, remove the carbon from the piston top.

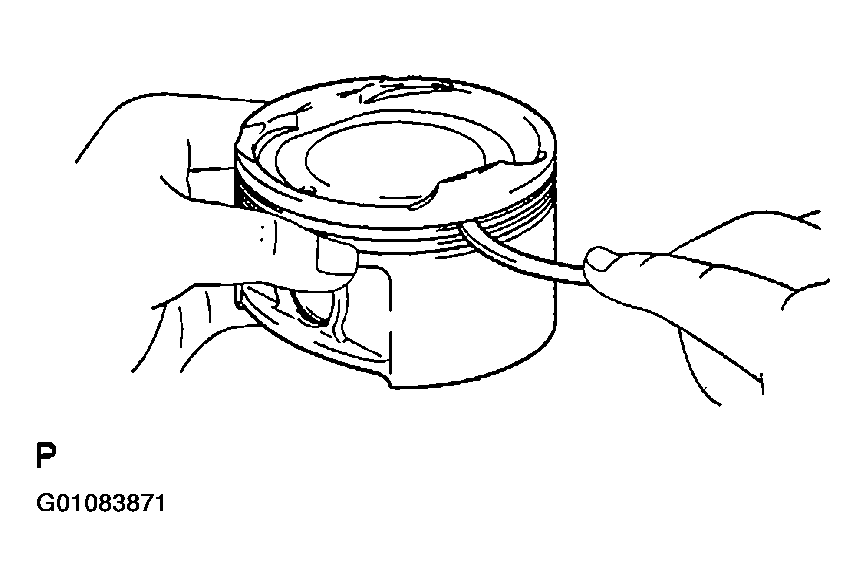

- Using a groove cleaning tool or a broken ring, clean the piston ring grooves.

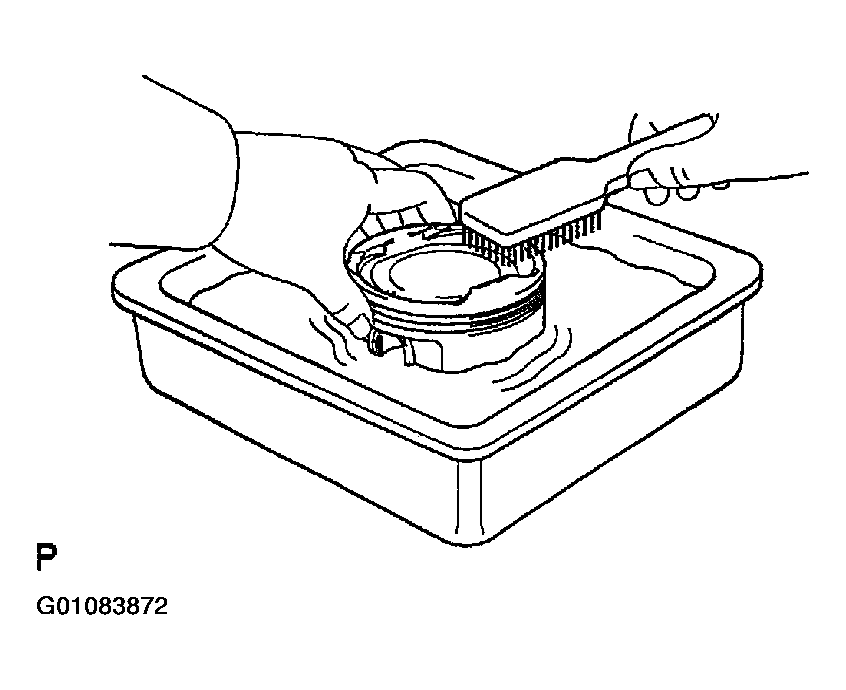

- Using a brush and solvent, thoroughly clean the piston.
NOTE: Do not use a wire brush.
- Inspect piston
.
- Inspect the piston oil clearance.

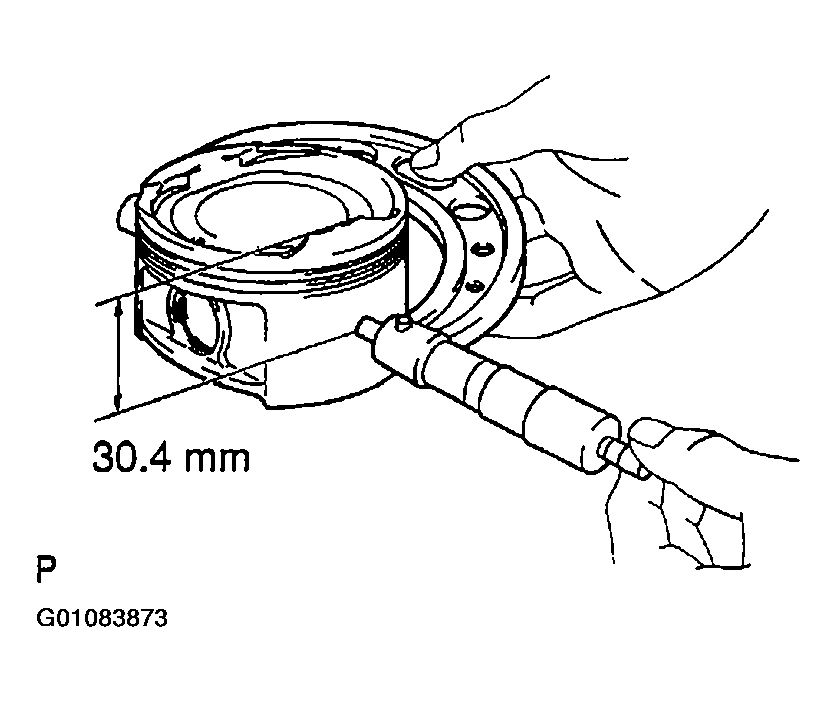

- Using a micrometer, measure the piston diameter at right angles to the piston pin center line, 30.4 mm (1.1968 in.) from the piston head.
- Piston diameter: 85.927 - 85.937 mm (3.3829 - 3.3833 in.)
- Measure the cylinder bore diameter in the thrust directions (See step 2).
- Subtract the piston diameter measurement from the cylinder bore diameter measurement.
- Standard oil clearance: 0.063 - 0.086 mm (0.0025 - 0.0034 in.)
- Maximum oil clearance: 0.10 mm (0.0039 in.)
If the oil clearance is greater than maximum, replace all the 4 pistons. If necessary, replace the cylinder block.
- Using a micrometer, measure the piston diameter at right angles to the piston pin center line, 30.4 mm (1.1968 in.) from the piston head.
- Inspect the piston ring groove clearance.

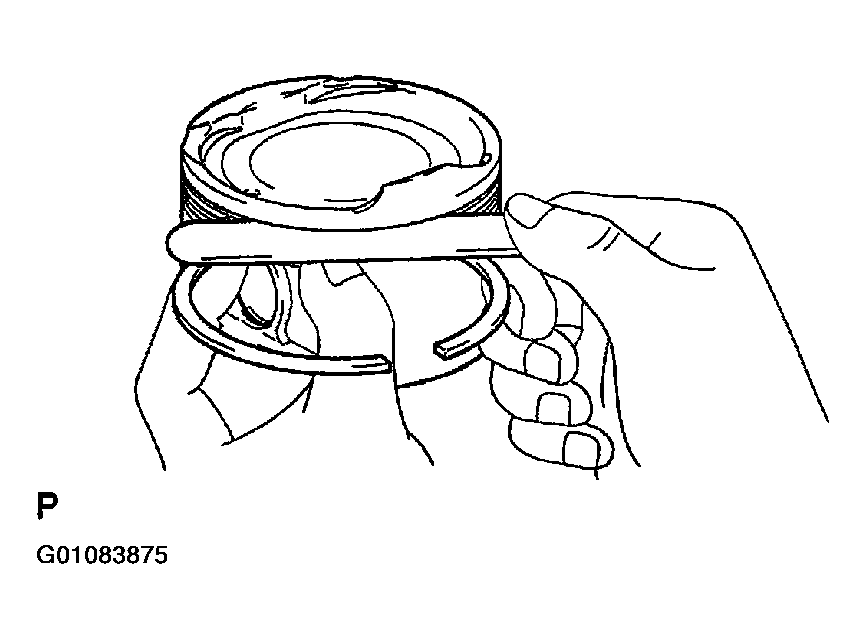

Using a feeler gauge, measure the clearance between a new piston ring and the wall of the ring groove.

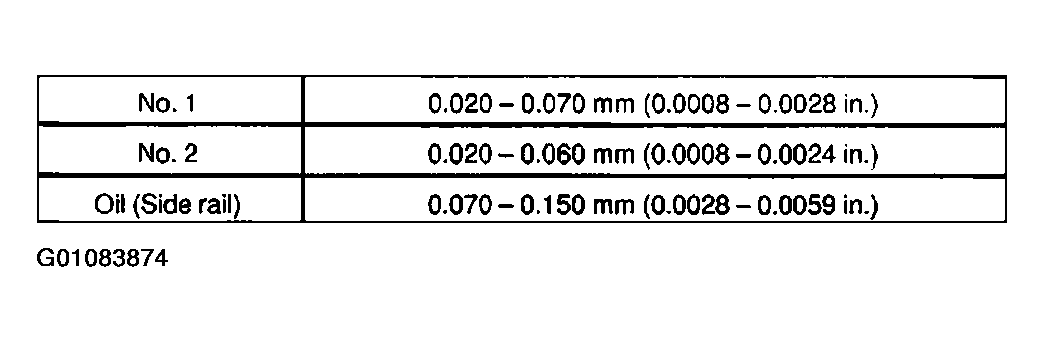

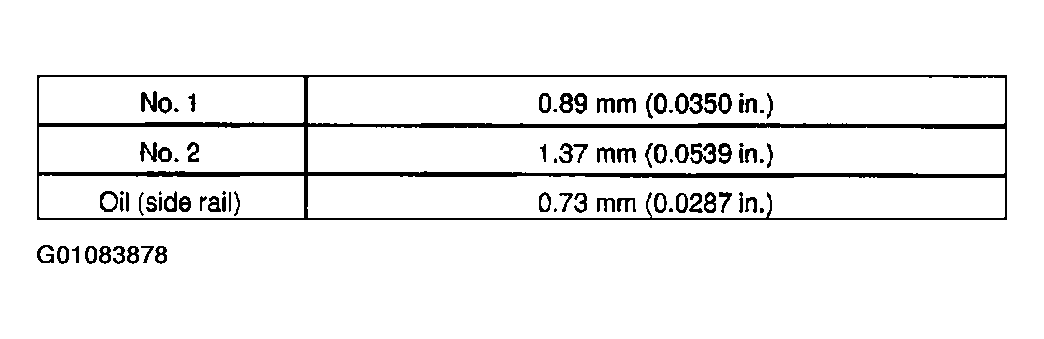

Ring groove clearance:
If the clearance is not as specified, replace the piston.
- Inspect the piston ring end gap.

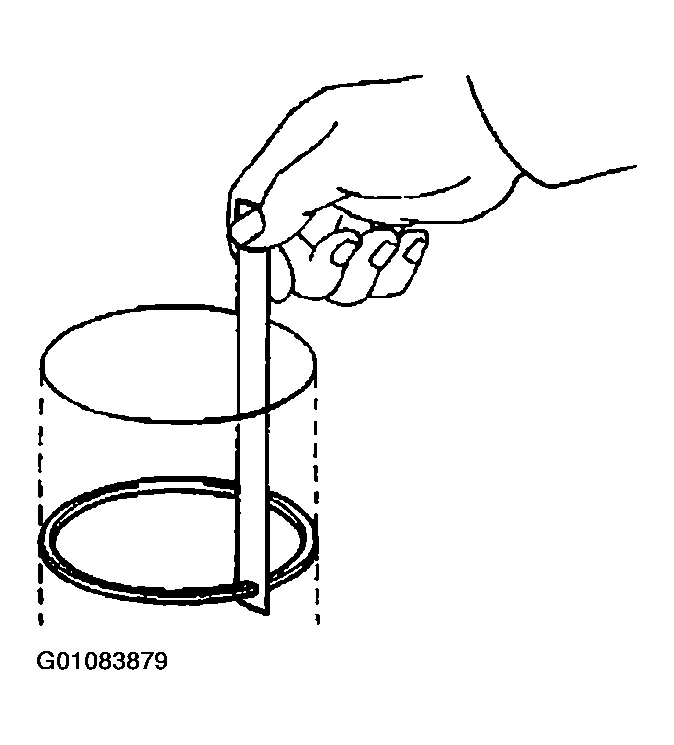

- Insert the piston ring into the cylinder bore.

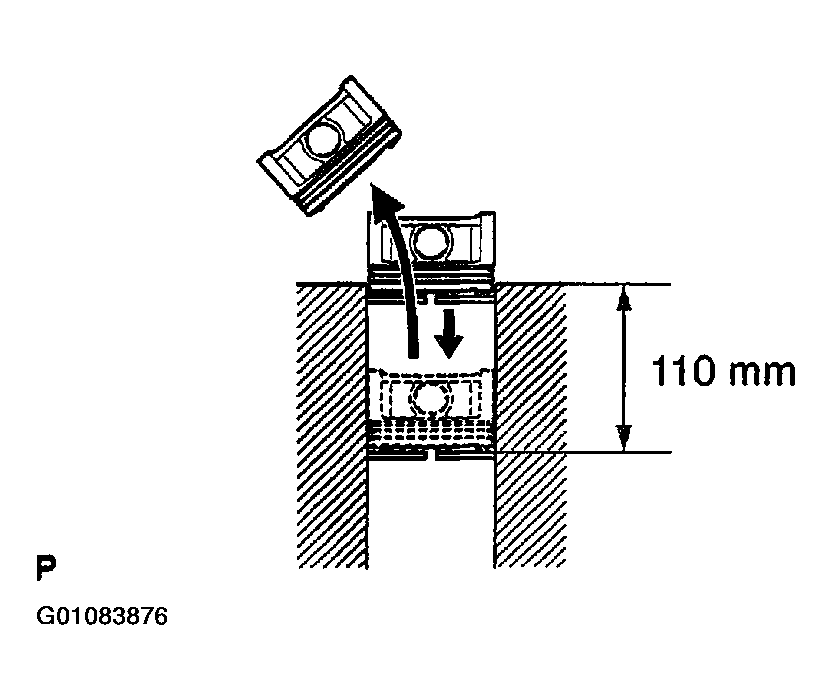

- Using the piston, push the piston ring a little beyond the bottom of the ring travel, 110 mm (4.33 in.) from the top of the cylinder block.
- Using a feeler gauge, measure the end gap.

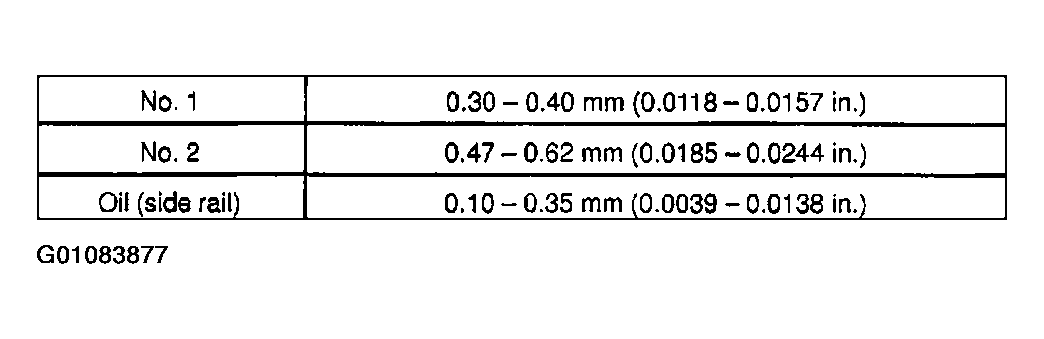

Standard end gap:
Maximum end gap:
If the end gap is greater than maximum, replace the piston ring. If the end gap is greater than maximum, even with a new piston ring, replace the cylinder block.
- Inspect the piston pin fit.

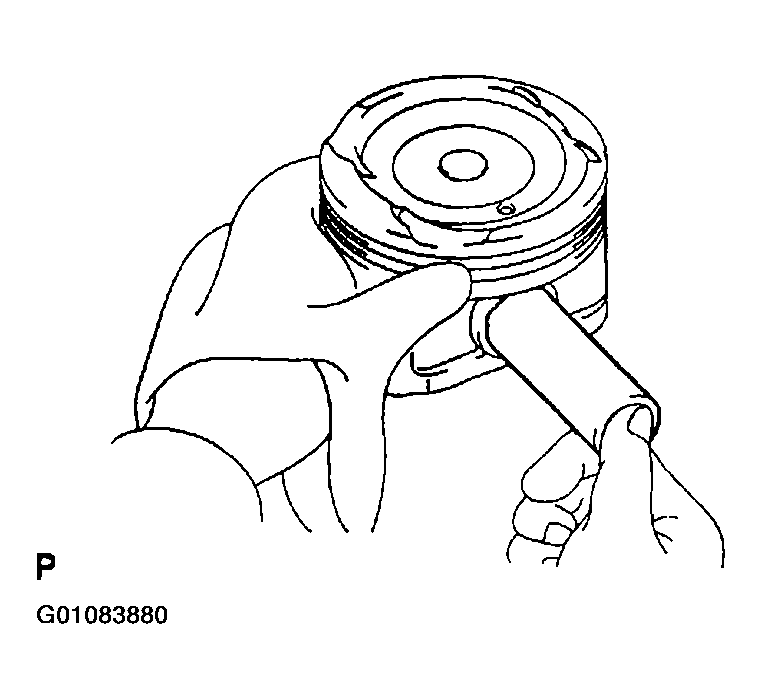

At 80 - 90°C (176 - 194°F), you should be able to push the piston pin into the piston pin hole with your thumb.
- Inspect the piston oil clearance.
- Inspect connecting rod
.

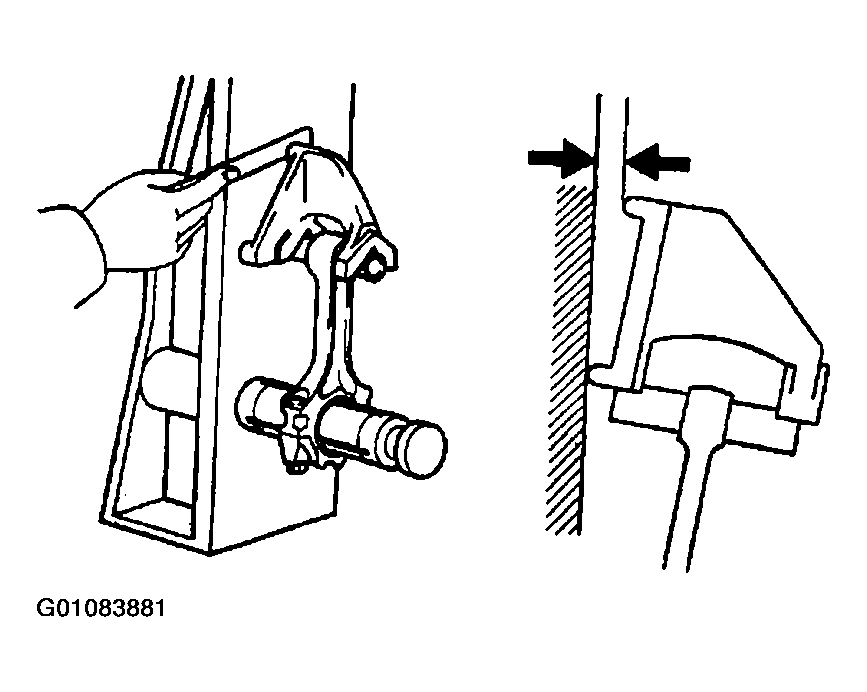

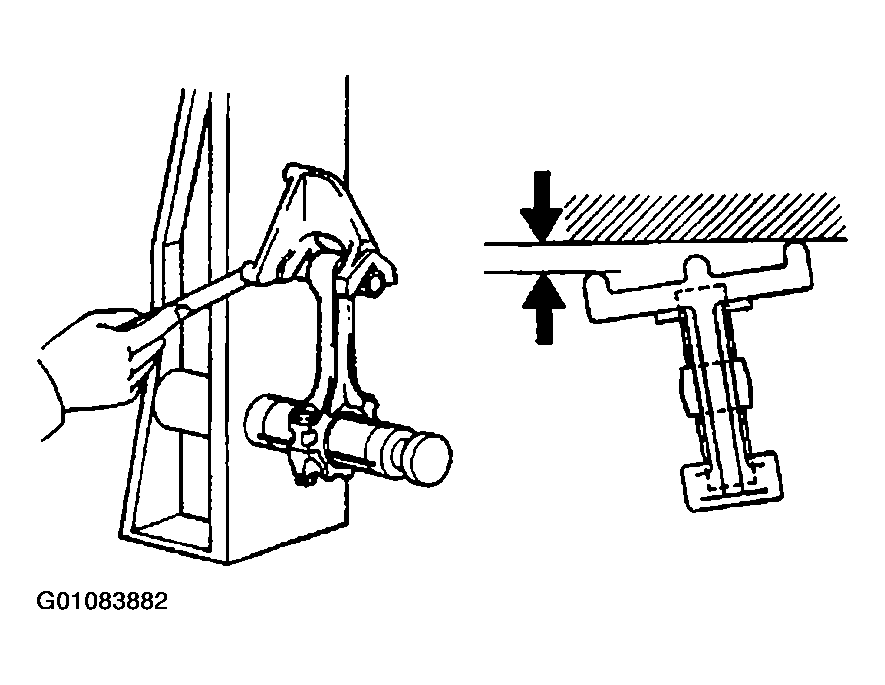

- Using a rod aligner and a feeler gauge, check the connecting rod alignment.
- Check for out-of-alignment.
- Maximum out-of-alignment: 0.05 mm (0.0020 in.) per 100 mm (3.94 in.)
If out-of-alignment is greater than maximum, replace the connecting rod assembly.
- Check for twist.
- Maximum twist: 0.15 mm (0.0059 in.) per 100 mm (3.94 in.)
If twist is greater than maximum, replace the connecting rod assembly.
- Check for out-of-alignment.
- Inspect the piston pin oil clearance.

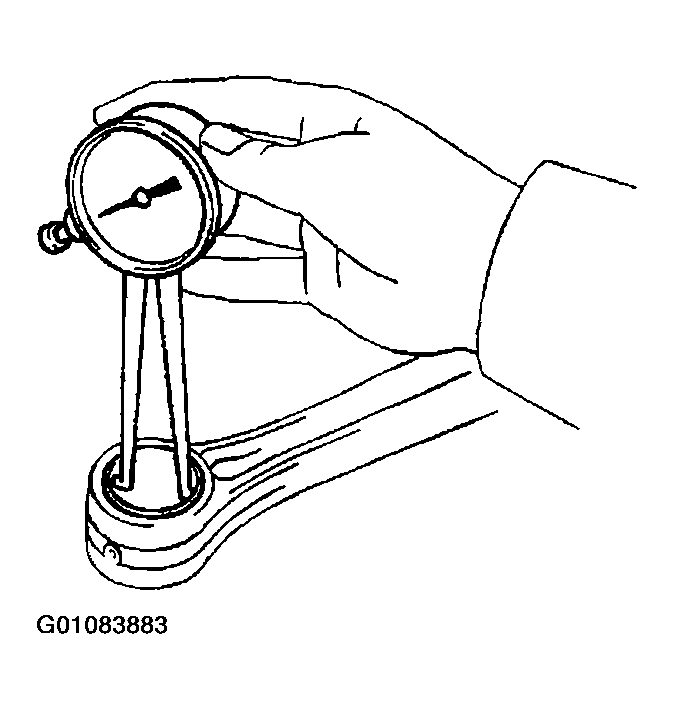

- Using a caliper gauge, measure the inside diameter of the connecting rod bushing.
- Bushing inside diameter: 22.005 - 22.014 mm (0.8663 - 0.8667 in.)
- Using a micrometer, measure the piston pin diameter.
- Piston pin diameter: 21.997 - 22.006 mm (0.8660 - 0.8664 in.)
- Subtract the piston pin diameter measurement from the bushing inside diameter measurement.
- Standard oil clearance: 0.005 - 0.011 mm (0.0002 - 0.0004 in.)
- Maximum oil clearance: 0.05 mm (0.0020 in.)
If the oil clearance is greater than maximum, replace the bushing (See REPLACEMENT ). If necessary, replace the piston and piston pin as a set.
- Using a caliper gauge, measure the inside diameter of the connecting rod bushing.
- Using a rod aligner and a feeler gauge, check the connecting rod alignment.
- Inspect connecting rod bolts
.
Using vernier calipers, measure the tension portion diameter of the bolt.
- Standard diameter: 7.2 - 7.3 mm (0.283 - 0.287 in.)
- Minimum diameter: 7.0 mm (0.276 in.)
If the diameter is less than minimum, replace the bolt.
- Inspect crankshaft
.
- Inspect for circle runout.
- Place the crankshaft on V-blocks.

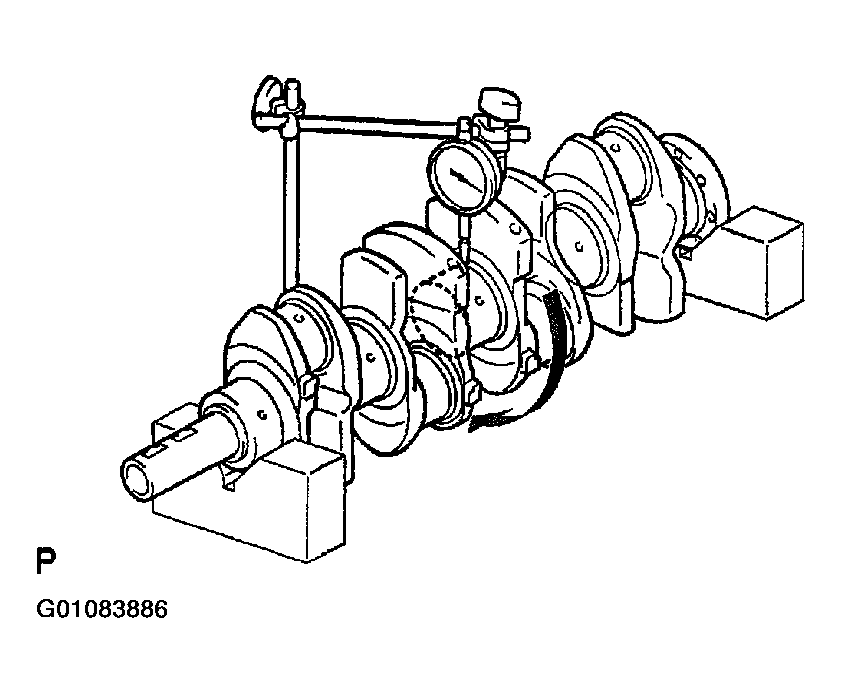

- Using a dial indicator, measure the circle runout, as shown in the illustration.
- Maximum circle runout: 0.03 mm (0.0012 in.)
If the circle runout is greater than maximum, replace the crankshaft.
- Inspect the main journals and crank pins.

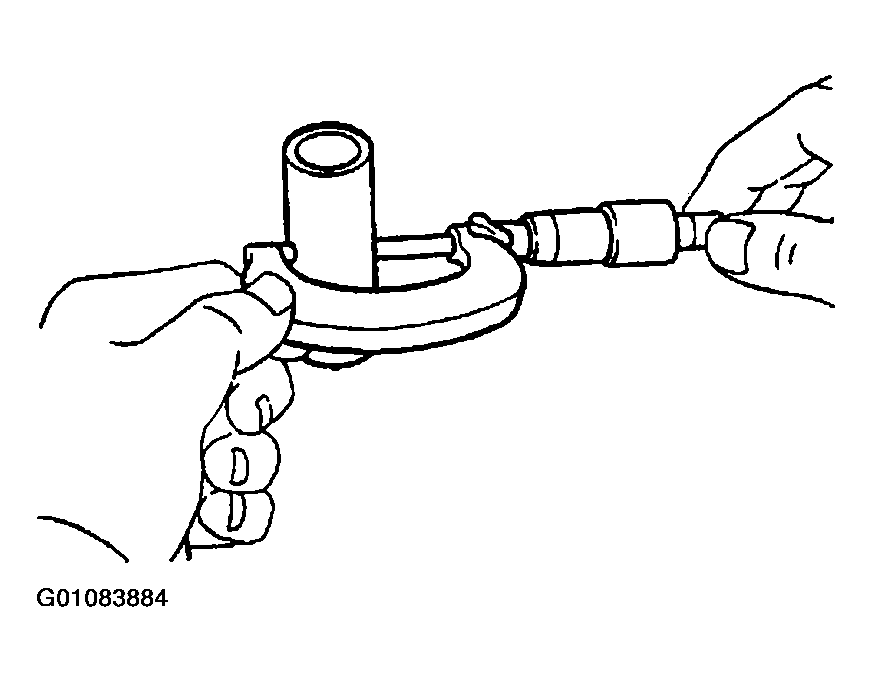

- Using a micrometer, measure the diameter of each main journal and crank pin.

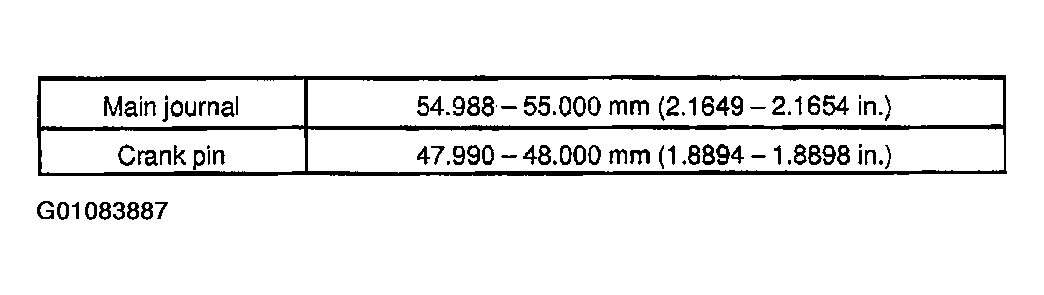

Diameter:
If the diameter is not as specified, check the oil clearance (See DISASSEMBLY ). If necessary, replace the crankshaft.

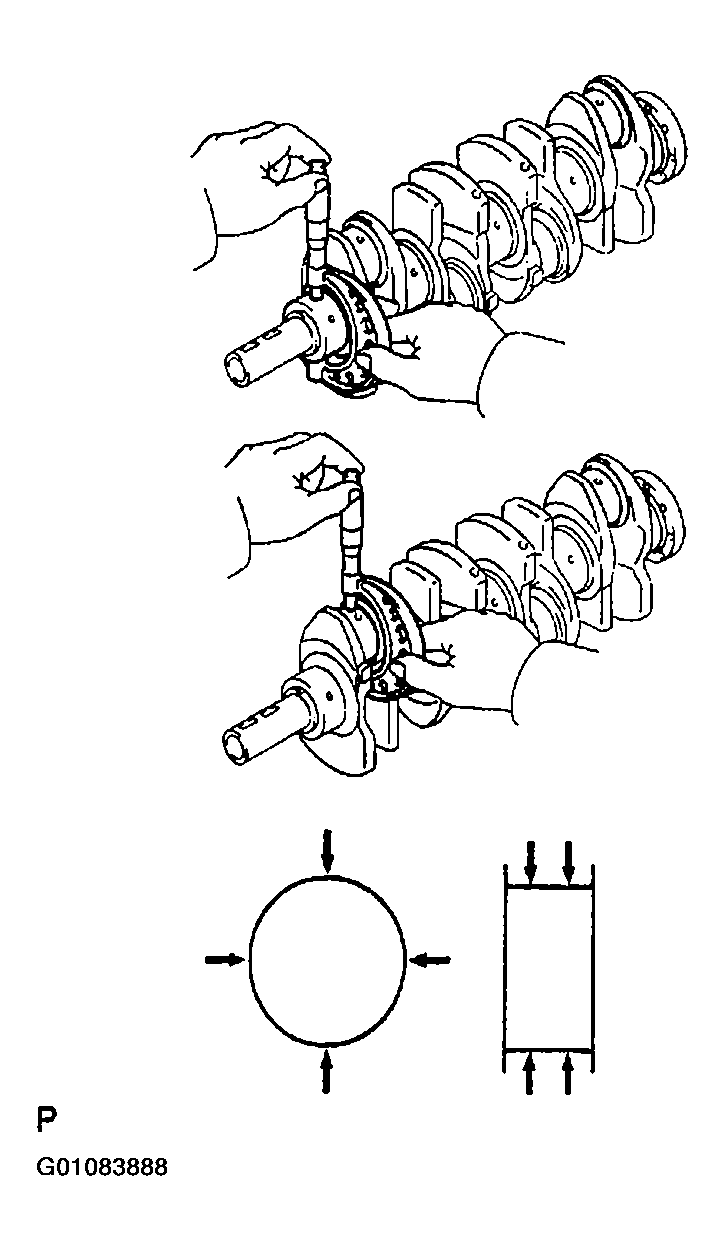

- Check each main journal and crank pin for taper and out-of-round as shown.
- Maximum taper and out-of-round: 0.003 mm (0.0001 in.)
If the taper and out-of-round is greater than maximum, replace the crankshaft.
- Using a micrometer, measure the diameter of each main journal and crank pin.
- Inspect for circle runout.
