Engine Mechanical Cylinder Head: Components

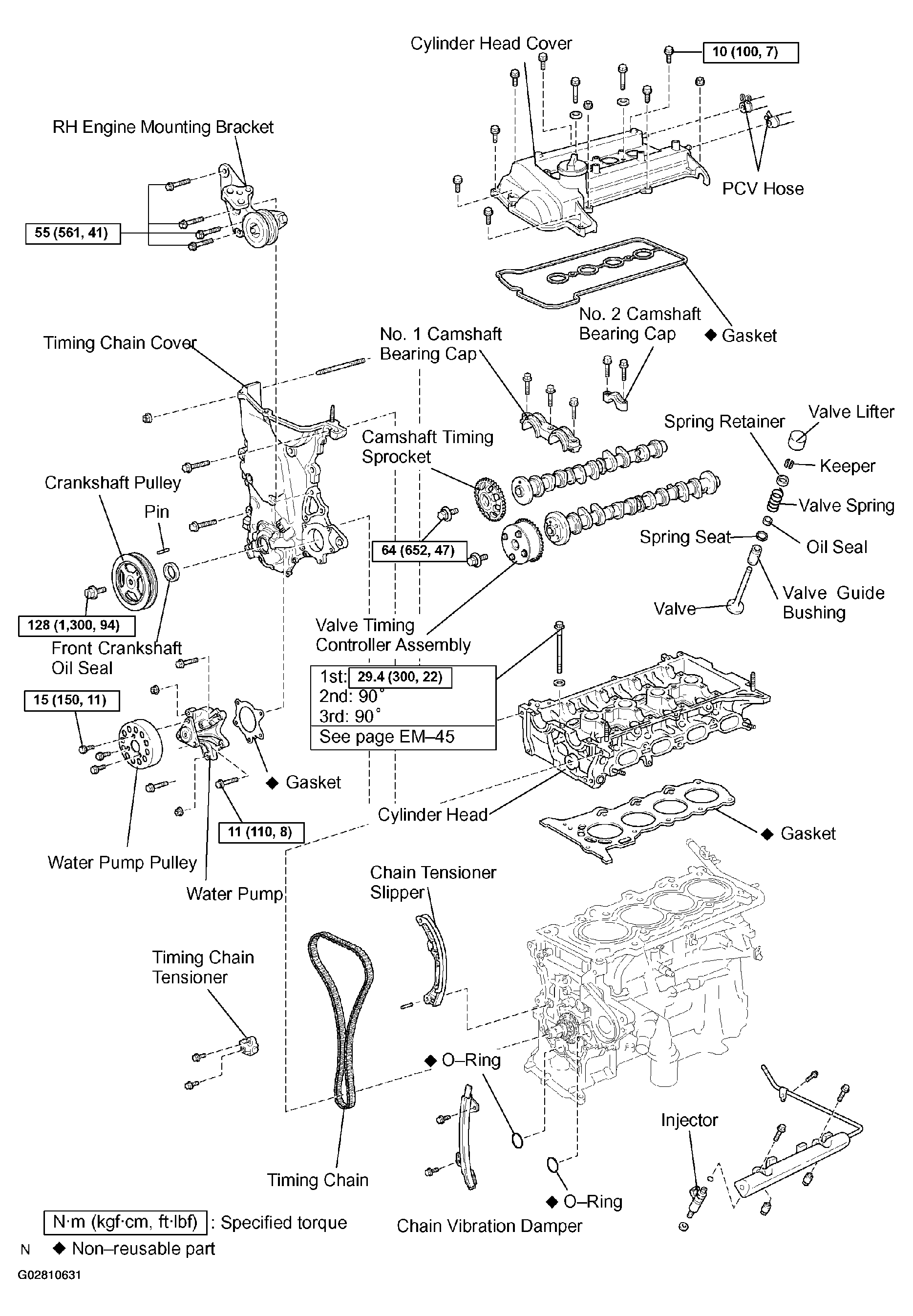

Fig 1: Locating Component Index (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

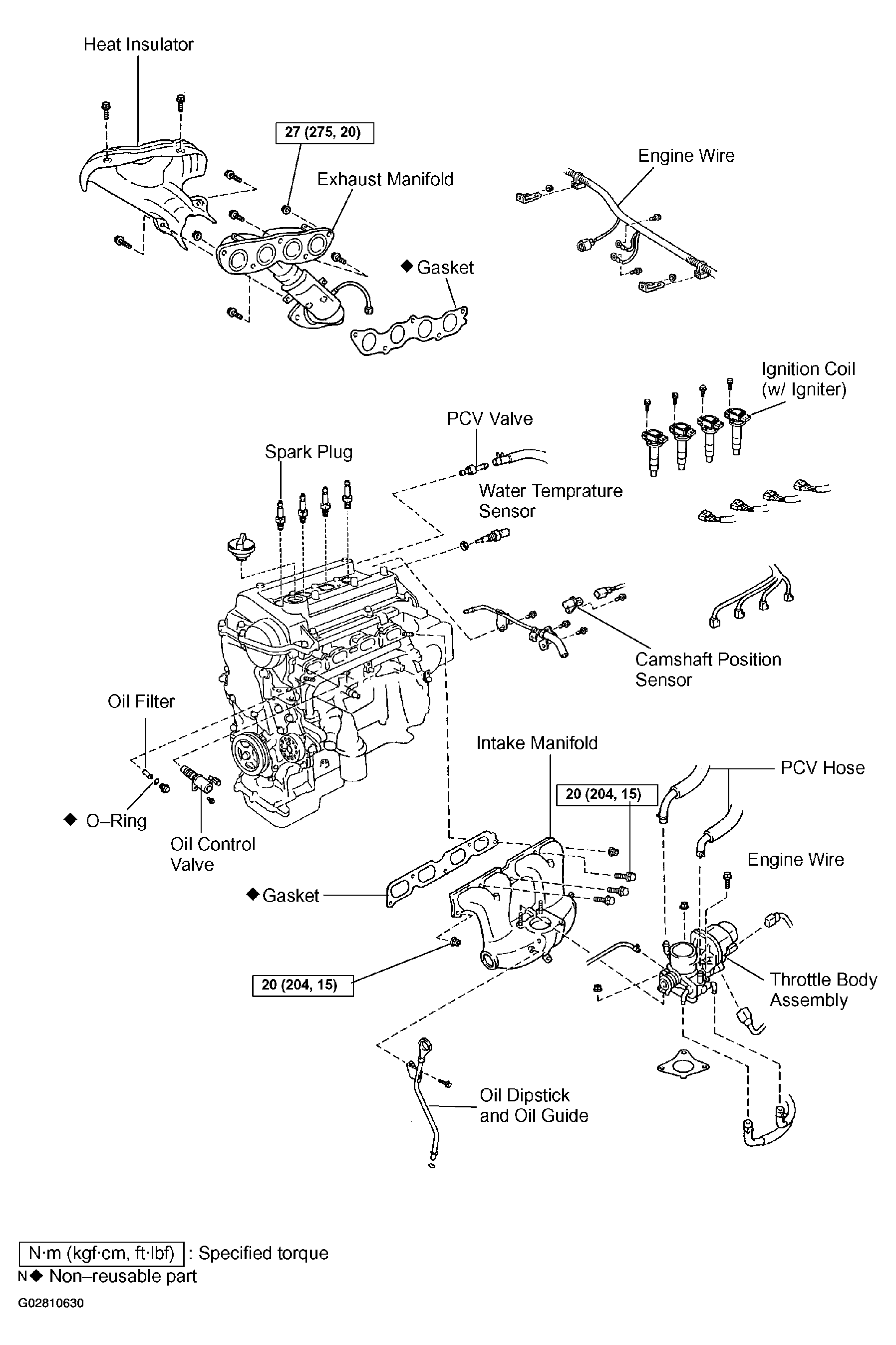

Fig 2: Locating Component Index (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating Component Index (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
