Abs Ecu Pin Voltages

ABS circuits and wiring harness can be tested by backprobing ABS ECU connectors and comparing measured voltages with ABS ECU standard values chart. See Fig 1-Fig 3 .

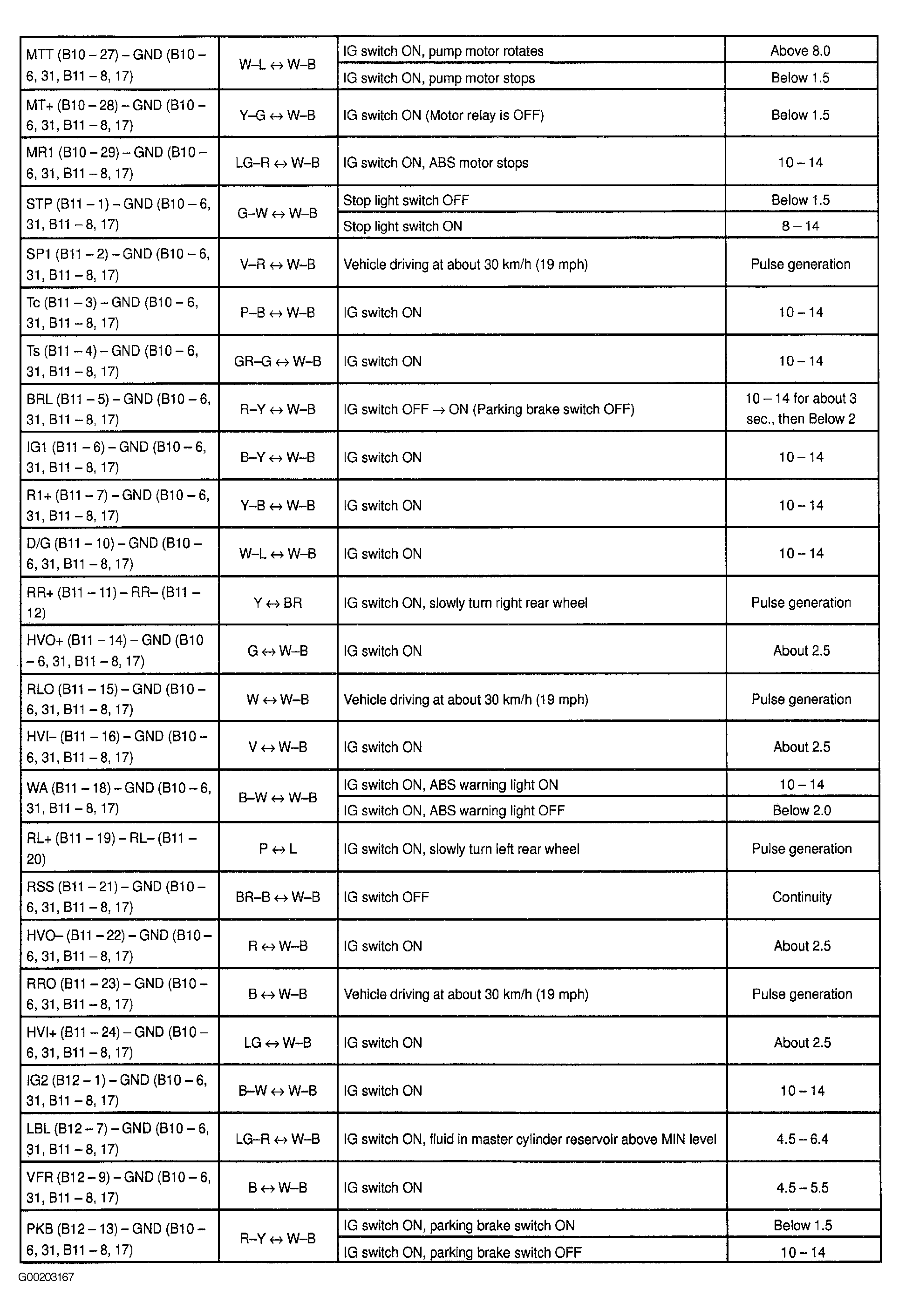

Fig 1: ECU Pin Voltage Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

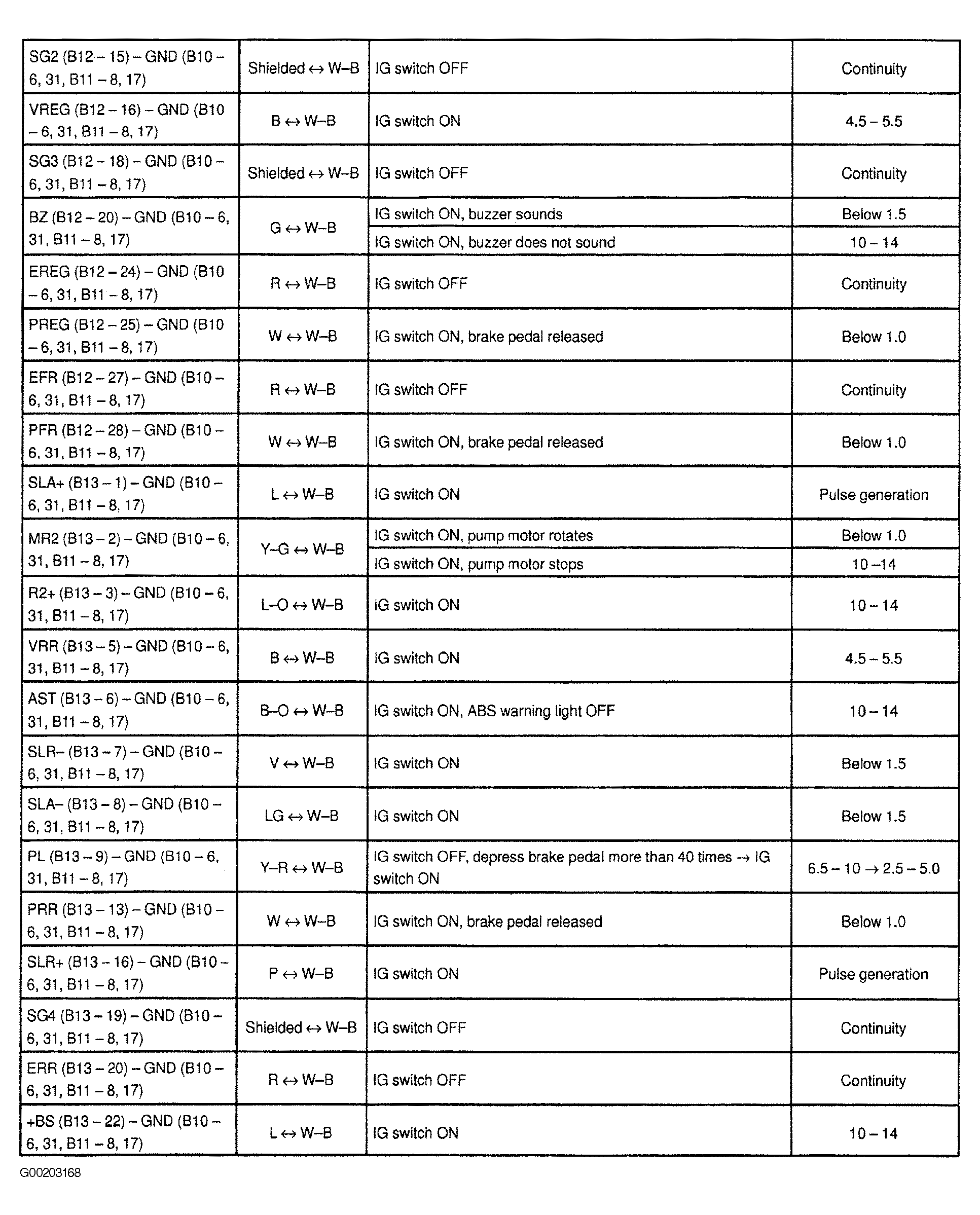

Fig 2: ECU Pin Voltage Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

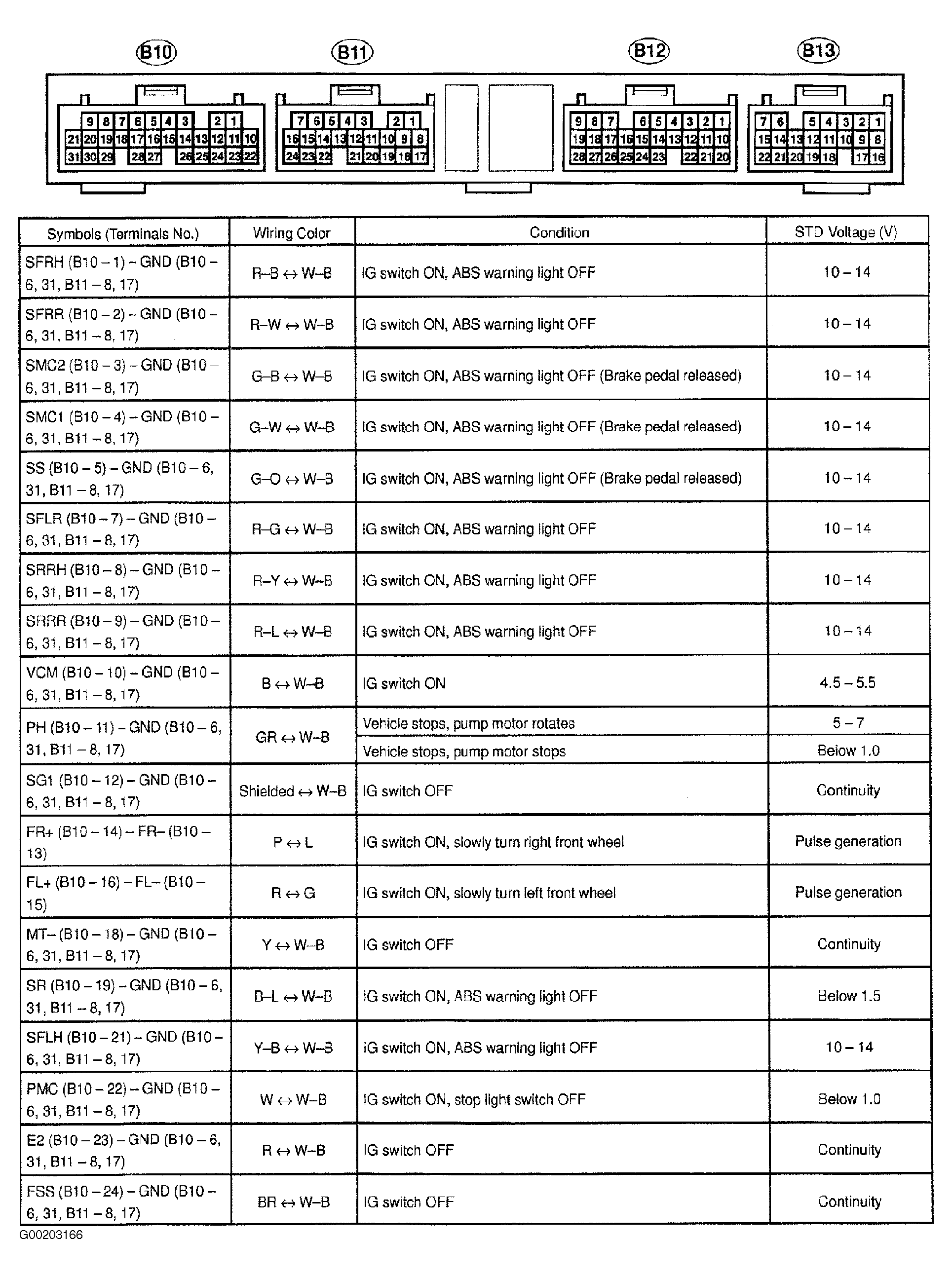

Fig 3: ECU Pin Voltage Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
