Driver Door Control System
>>
Parts Location
Parts Location

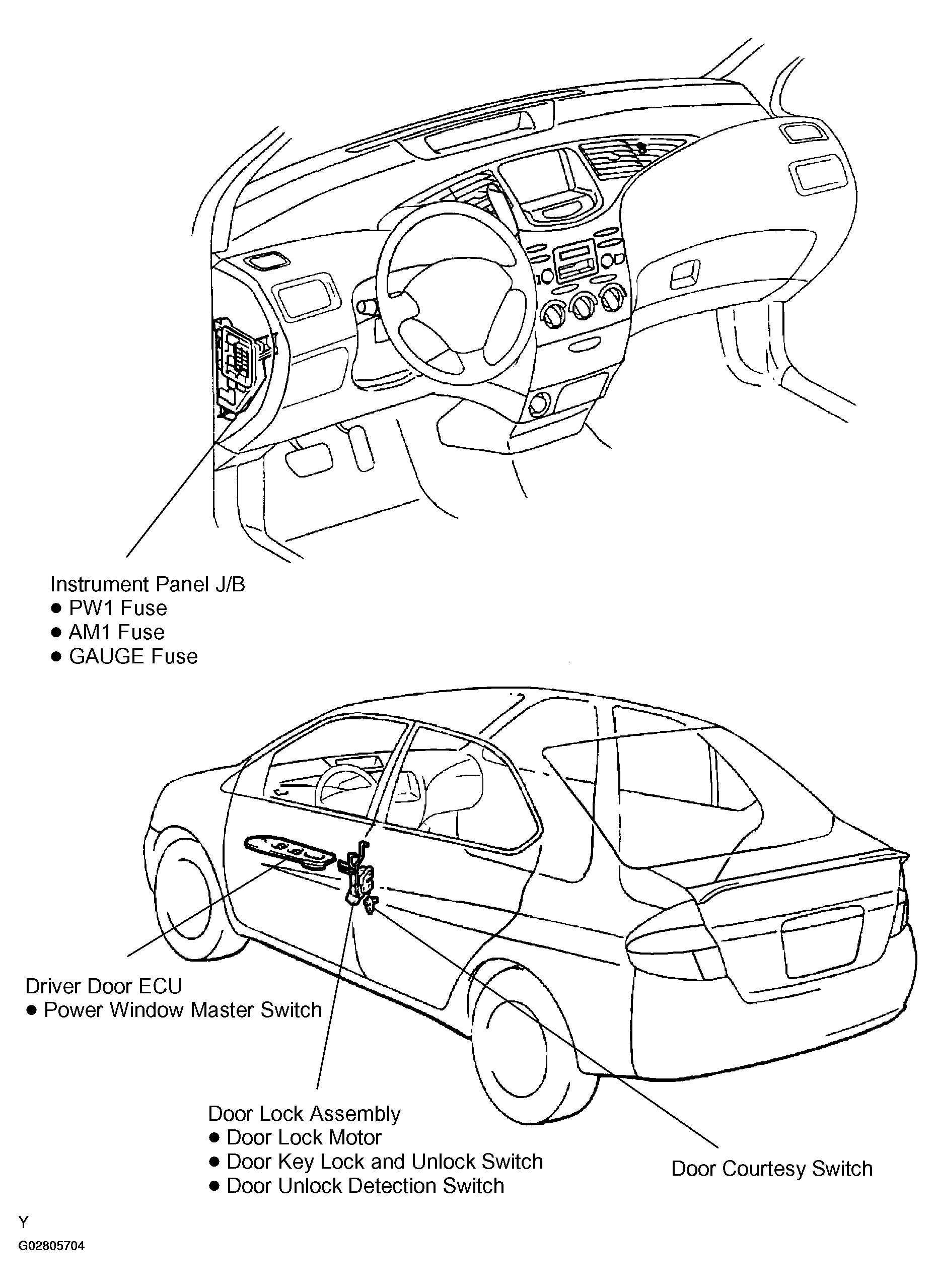

Fig 1: Locating Driver Door Control System Parts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
