Timing Chain: Components

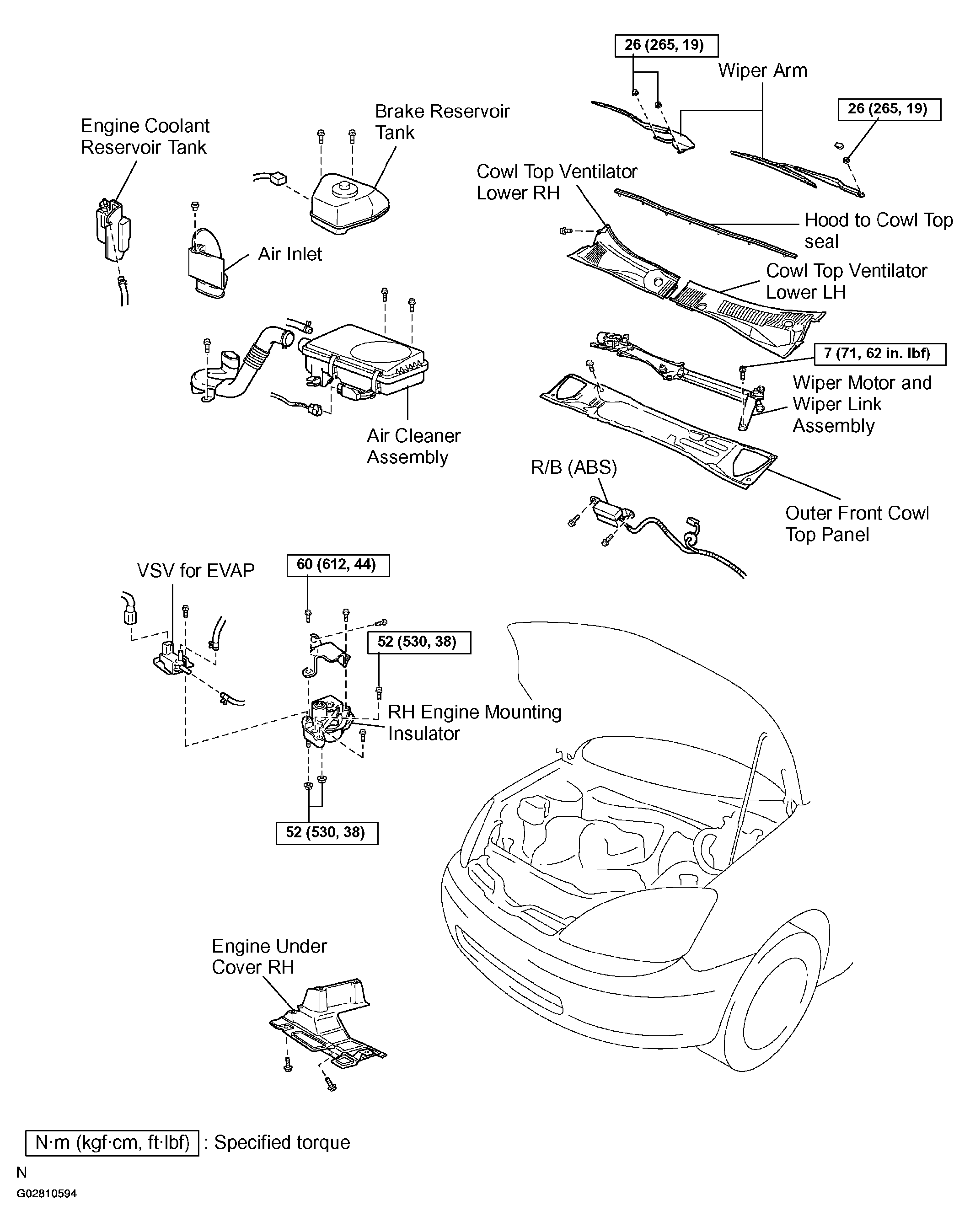

Fig 1: Identifying Components For Timing Chain Removal (1 Of 2)
G02810594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

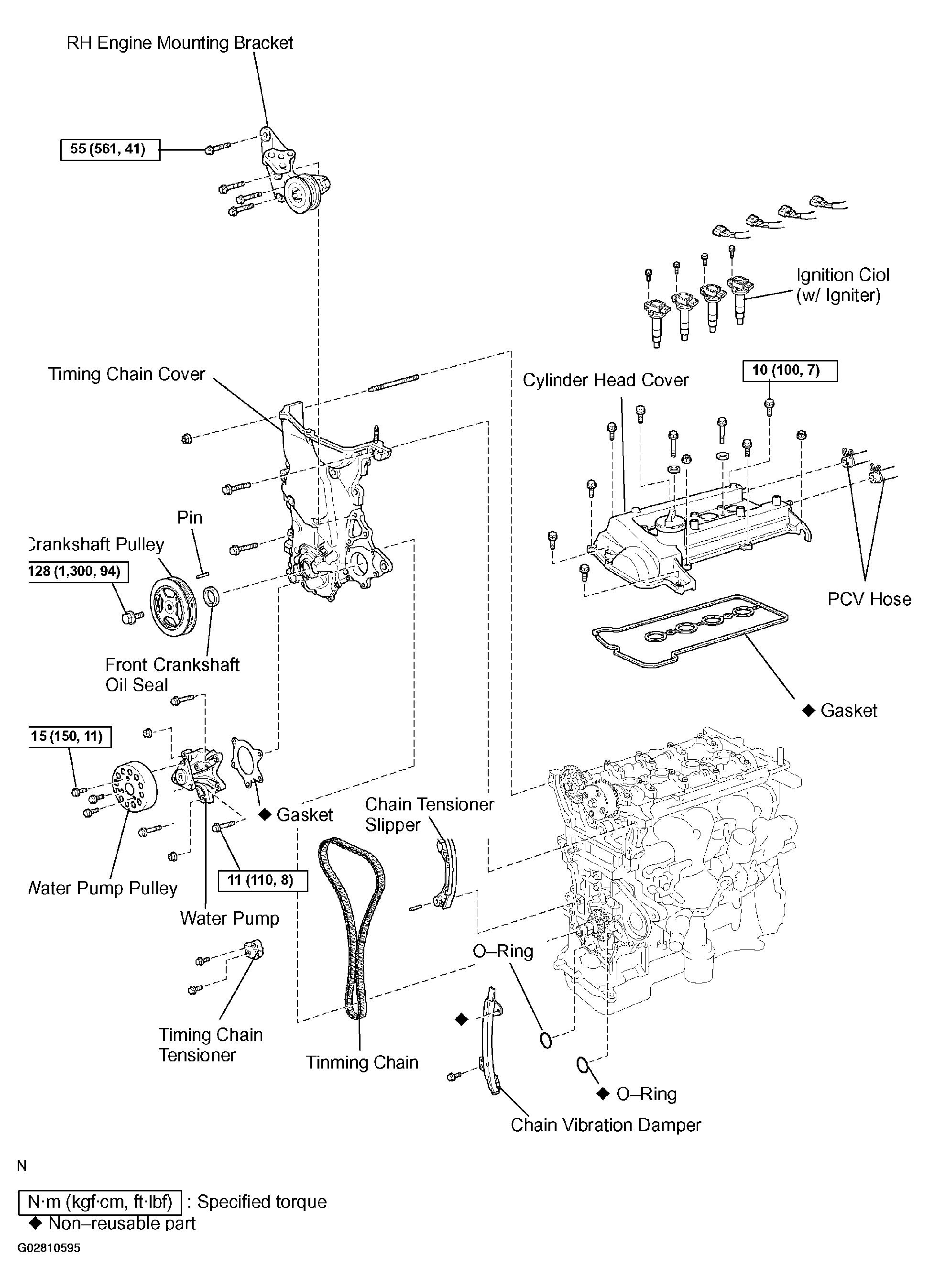

Fig 2: Identifying Components For Timing Chain Removal (2 Of 2)
G02810595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
