Home >> Toyota >> 2001 >> Prius >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Cooling System (Mechanical) >> Radiator And CONDENSOR Module >> Components

Radiator And CONDENSOR Module: Components

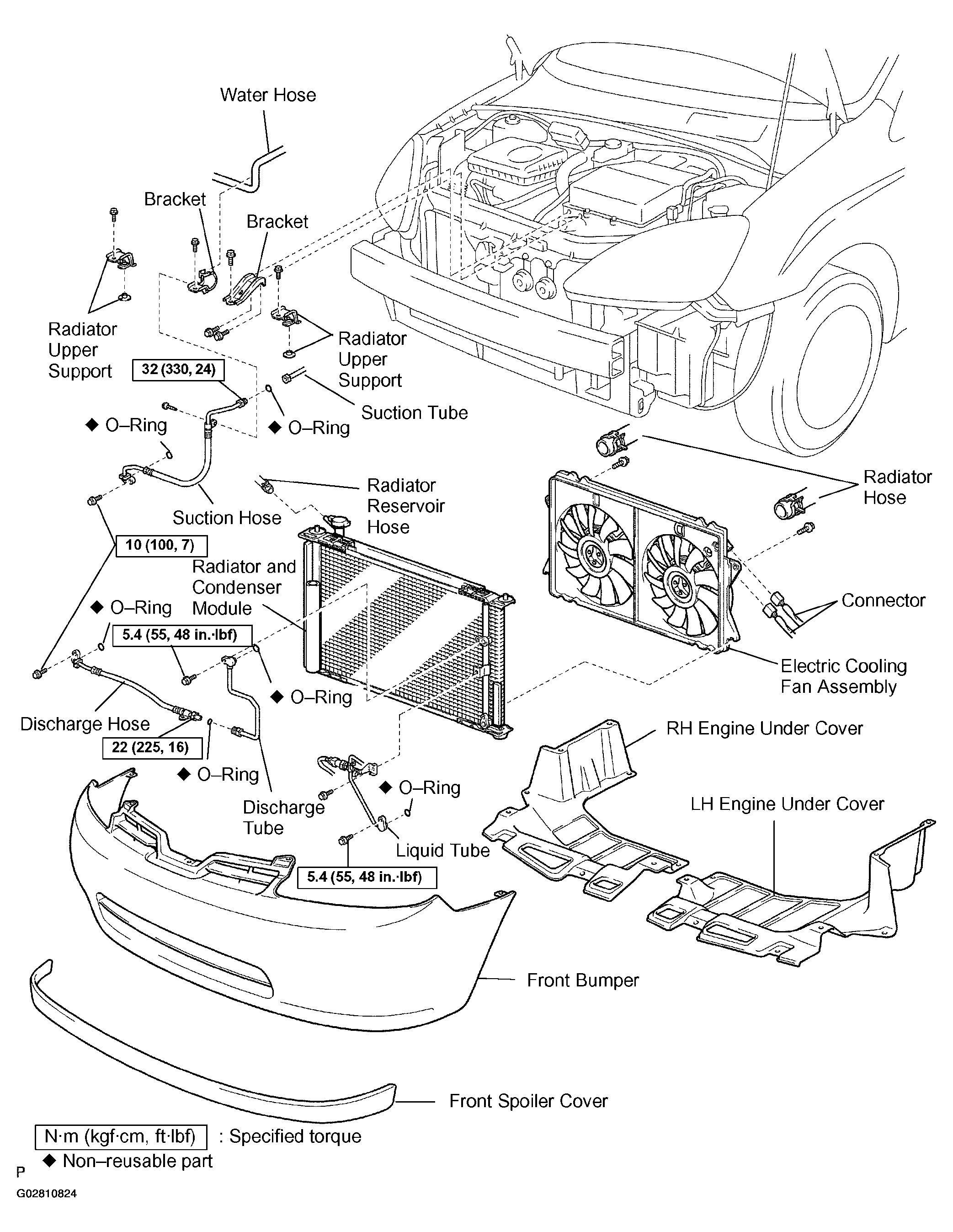

Fig 1: Identifying Components For Radiator & Condenser Module Removal

G02810824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
