Repair and Diagnosis (Single Page)
>>
Electrical
>>
Charging Systems
>>
HV Battery Control System
>>
Terminals Of Ecu
Terminals Of Ecu

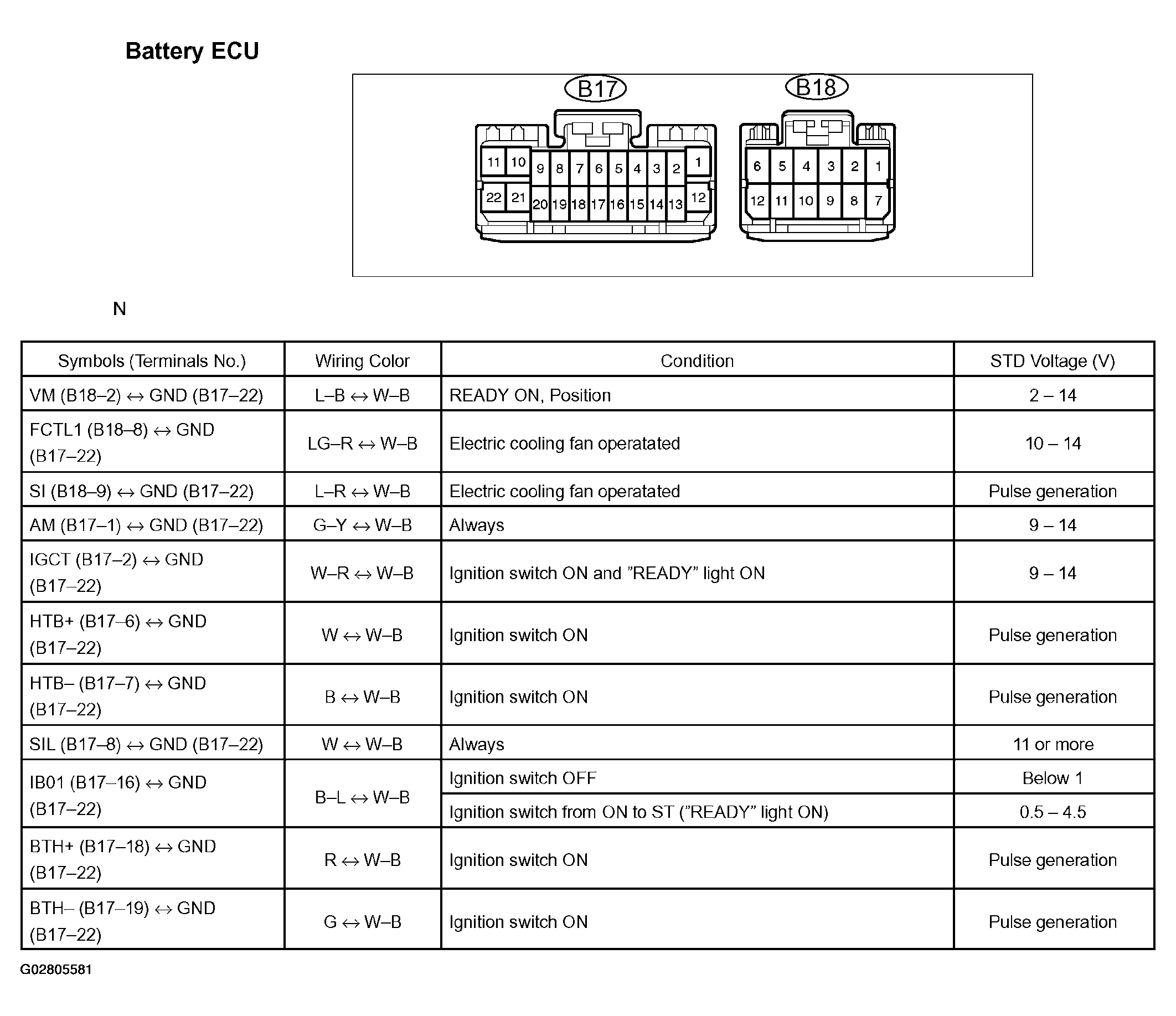

Fig 1: Identifying Battery ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
