NC Speed Sensor: Highlander

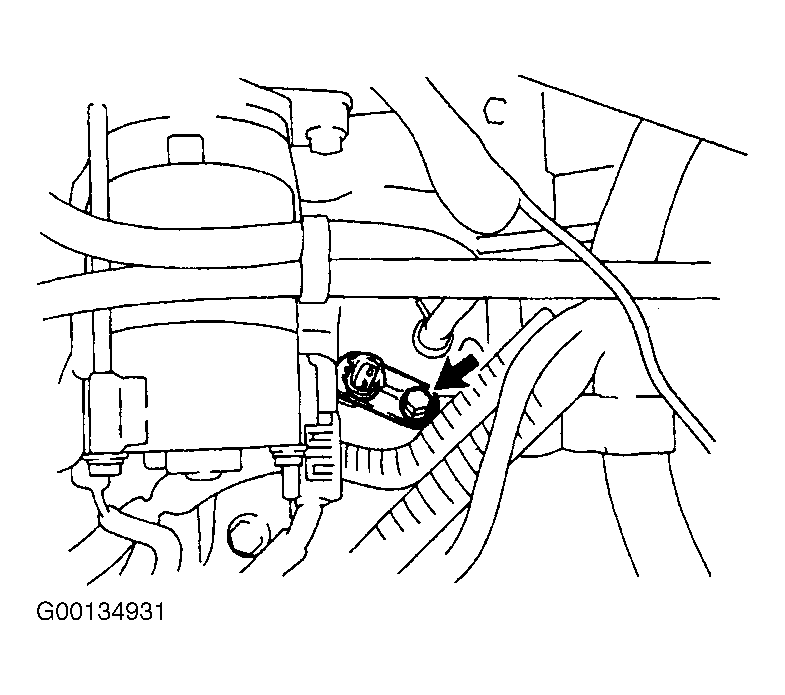

Disconnect the wiring harness connector at the NC vehicle speed sensor. Remove the bolt and vehicle speed sensor. See Fig 1. Remove the "O" ring and discard.
Coat a NEW "O" ring with ATF and install on the NC vehicle speed sensor. Install sensor into transmission with bolt. Tighten to specification. See TORQUE SPECIFICATIONS .
