Tacoma With Column Shift

  1. Apply parking brake. Loosen swivel nut on manual shift lever on side of transmission. See Fig 1. Move manual shift lever downward to Park position.
  2. Move manual shift lever upward 2 notches to Neutral position. Set gearshift lever to "N" position. While holding manual gearshift lever slightly toward "R" position, tighten swivel nut.
  3. Start engine. Ensure vehicle moves forward when shifting gearshift from "N" to "D" position, and moves rearward when shifting to "R" position.

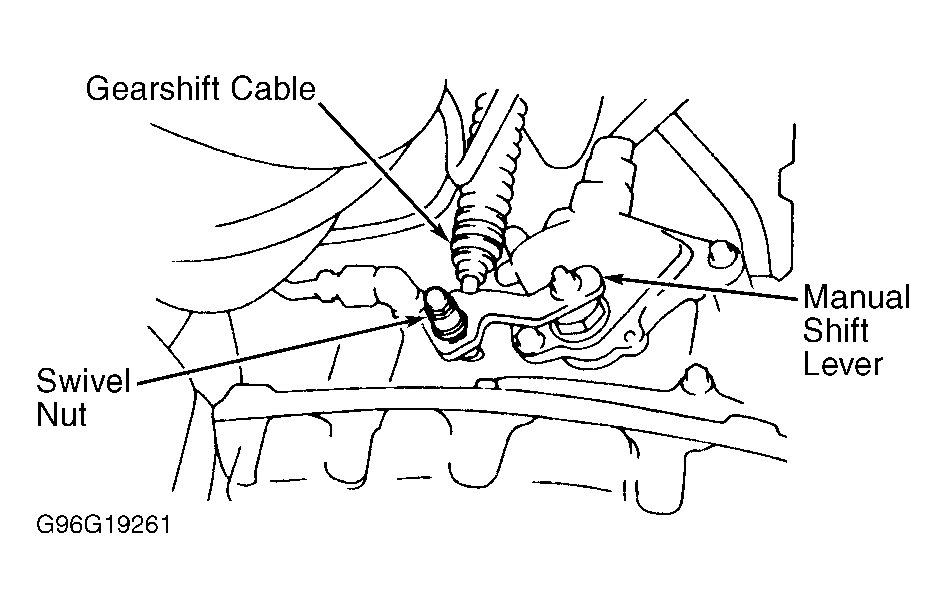

Fig 1: Adjusting Gearshift Cable With Column Shift (Tacoma)
G96G19261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
