Rear Brake Speed Sensor: Removal

Remove Speed Sensor

1. Disconnect the speed sensor connector.

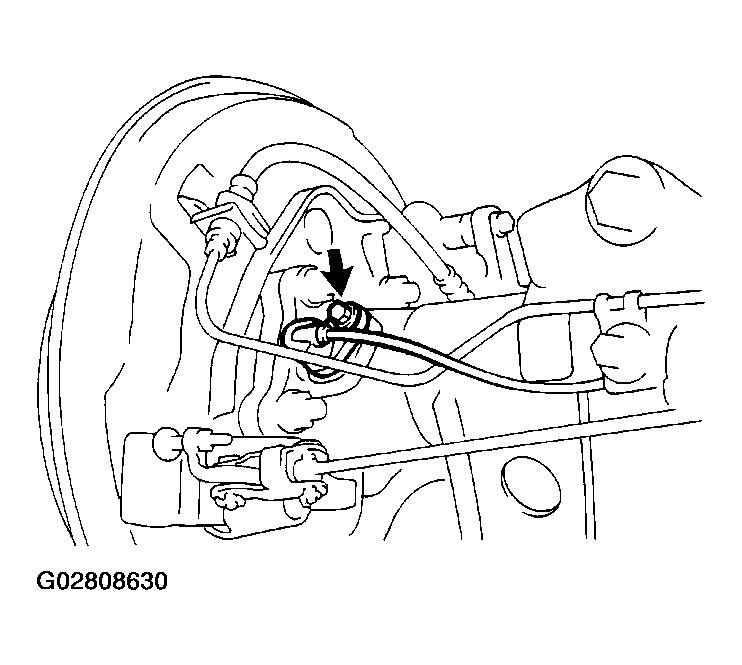

   Fig 1: Locating Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the clamp bolt from the upper control bracket.

   Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

3. Remove the 6 resin clips, holding the sensor wire harness from the frame, upper control arm and axle housing.
4. Remove the mounting bolt and speed sensor.
   Fig 2: Locating Mounting Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

5. Remove the O-ring from the speed sensor.
