Test 6: Key Unlock Warning Switch Circuit

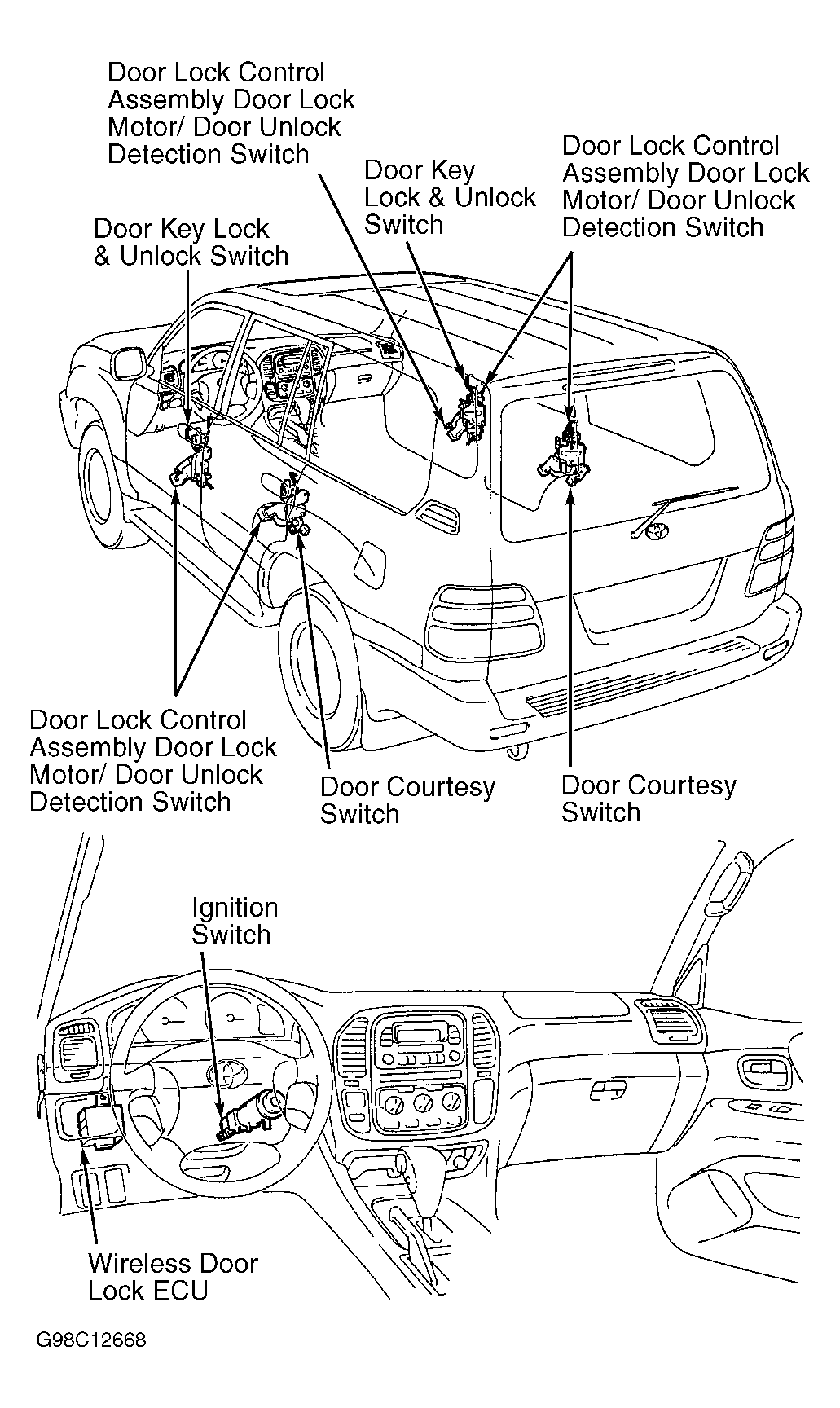

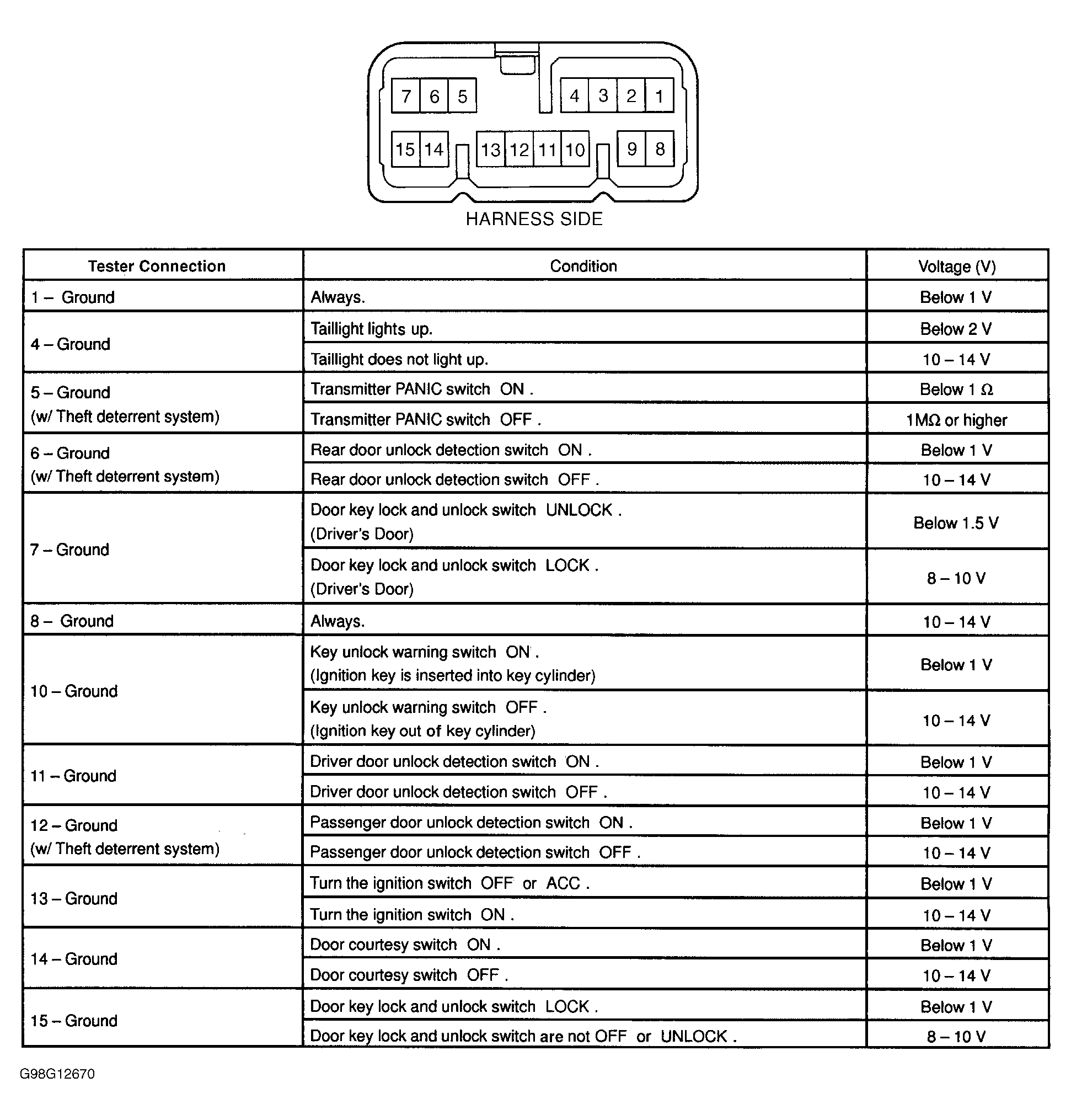

With ignition off, remove wireless door lock ECU from under left side of instrument panel. See Figure. Measure voltage (backprobe) between ground and terminal No. 10 (Red/Black wire) at wireless door lock ECU harness connector. See Figure. If 10-14 volts is not present, repair open between terminal No. 1 (Red/Black wire) at unlock warning switch and terminal No. 20 (Light Blue wire) at instrument cluster ECU 22-pin harness connector I19. If 10-14 volts is present, proceed to next test listed under TROUBLESHOOTING .
