Notes
Removal & Installation: Notes
NOTE:
For removal and installation reference, see
Fig 1
.

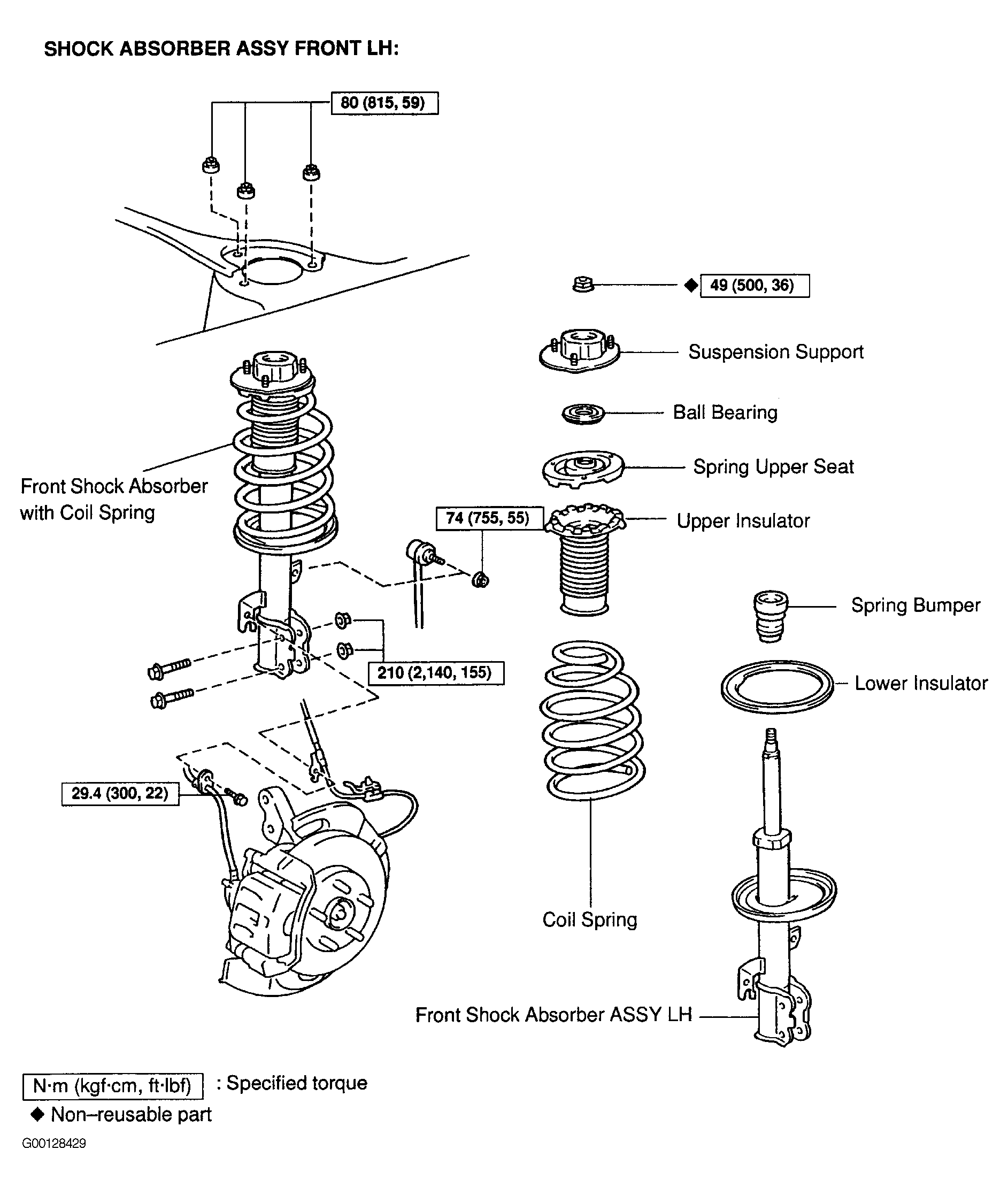

Fig 1: Exploded View Of Front Suspension Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
