Transponder Key Amplifier

Individual component testing information is not available. Only information available is for testing of pin voltages at transponder key amplifier, see Fig 1.

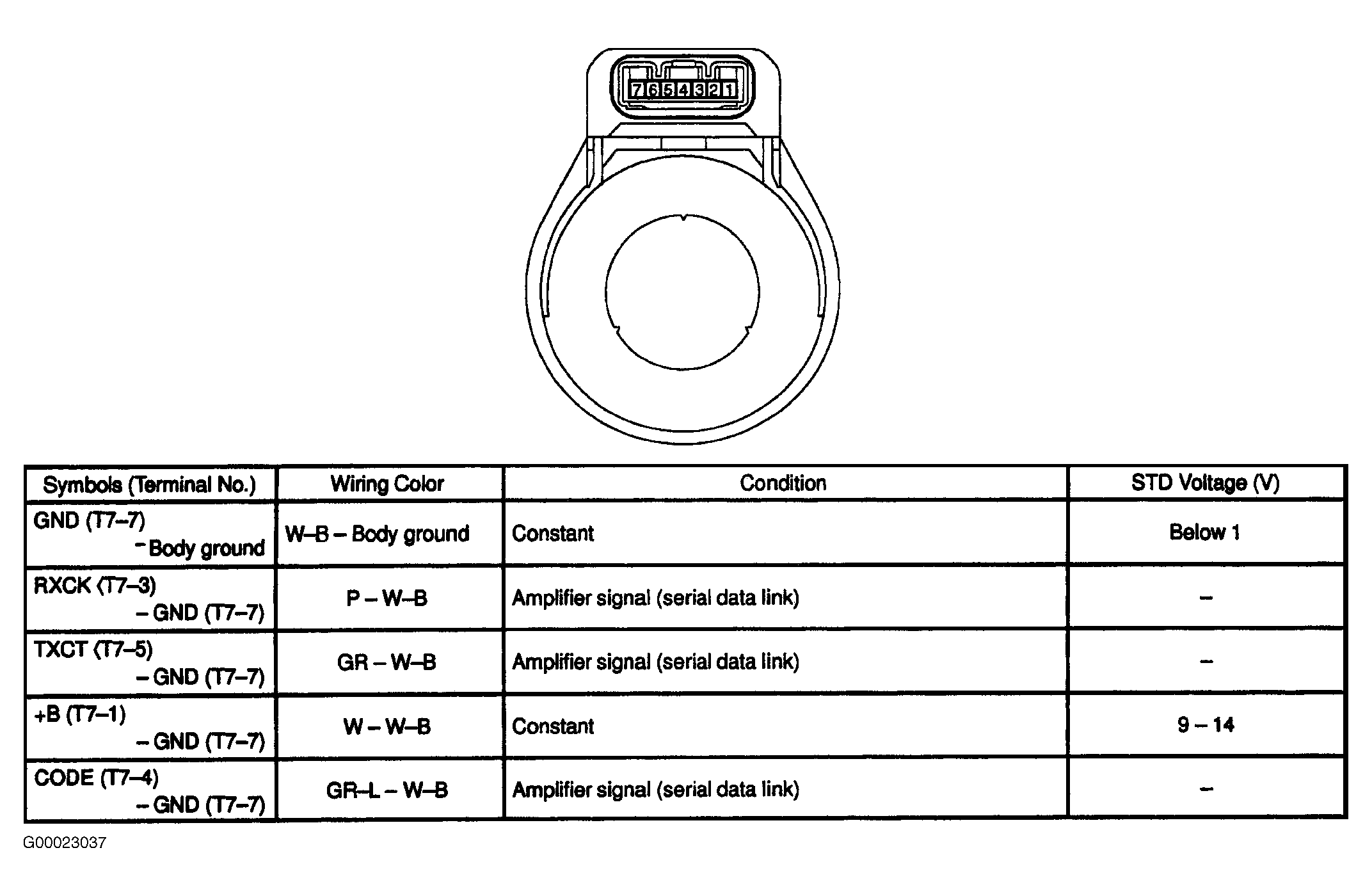

Fig 1: Identifying Transponder Key Amplifier Terminals & Pin Voltage Specifications
G00023037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
