Test J: VSC Warning Light
>>
Diagnostic Procedures
Diagnostic Procedures

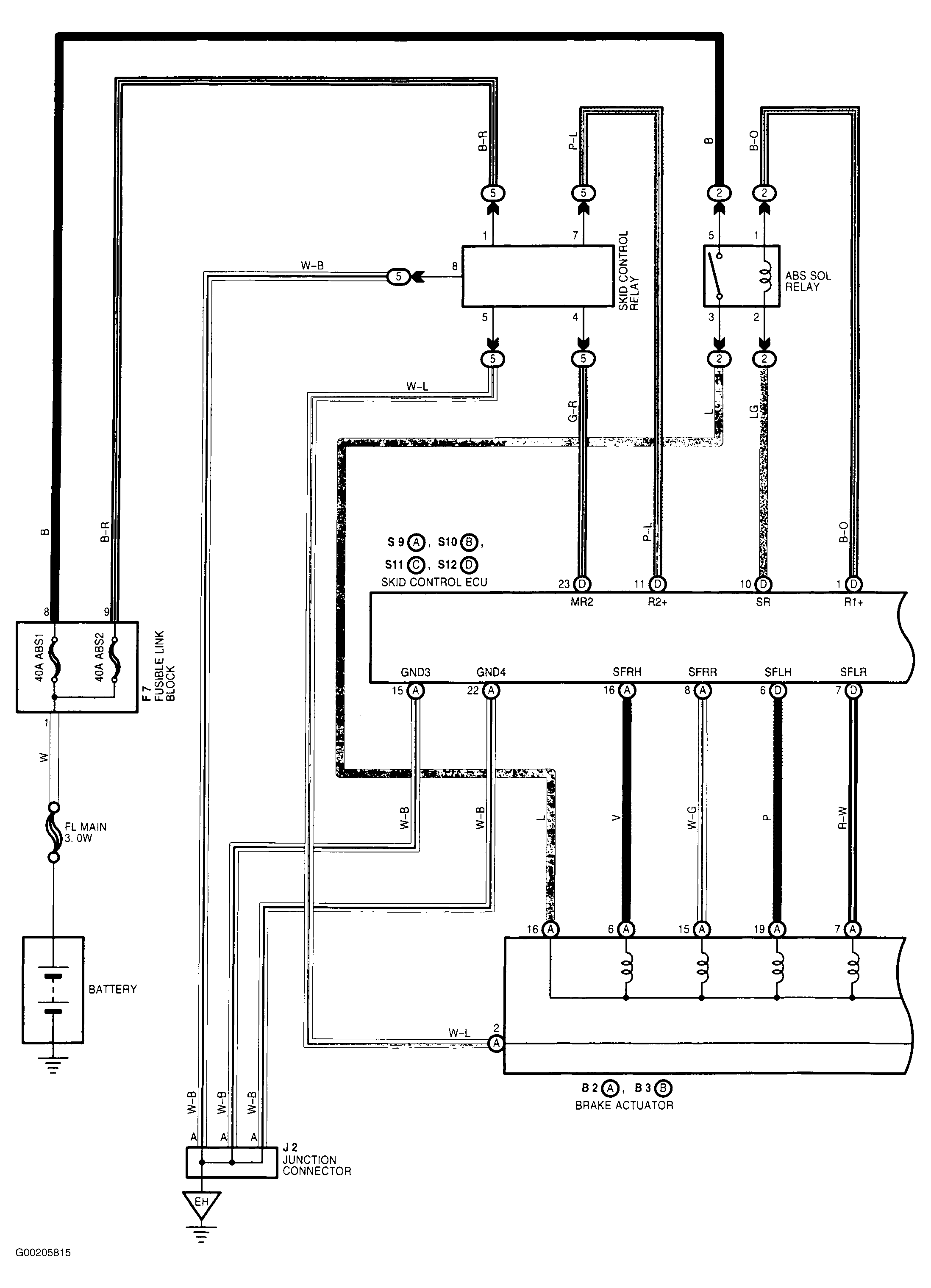

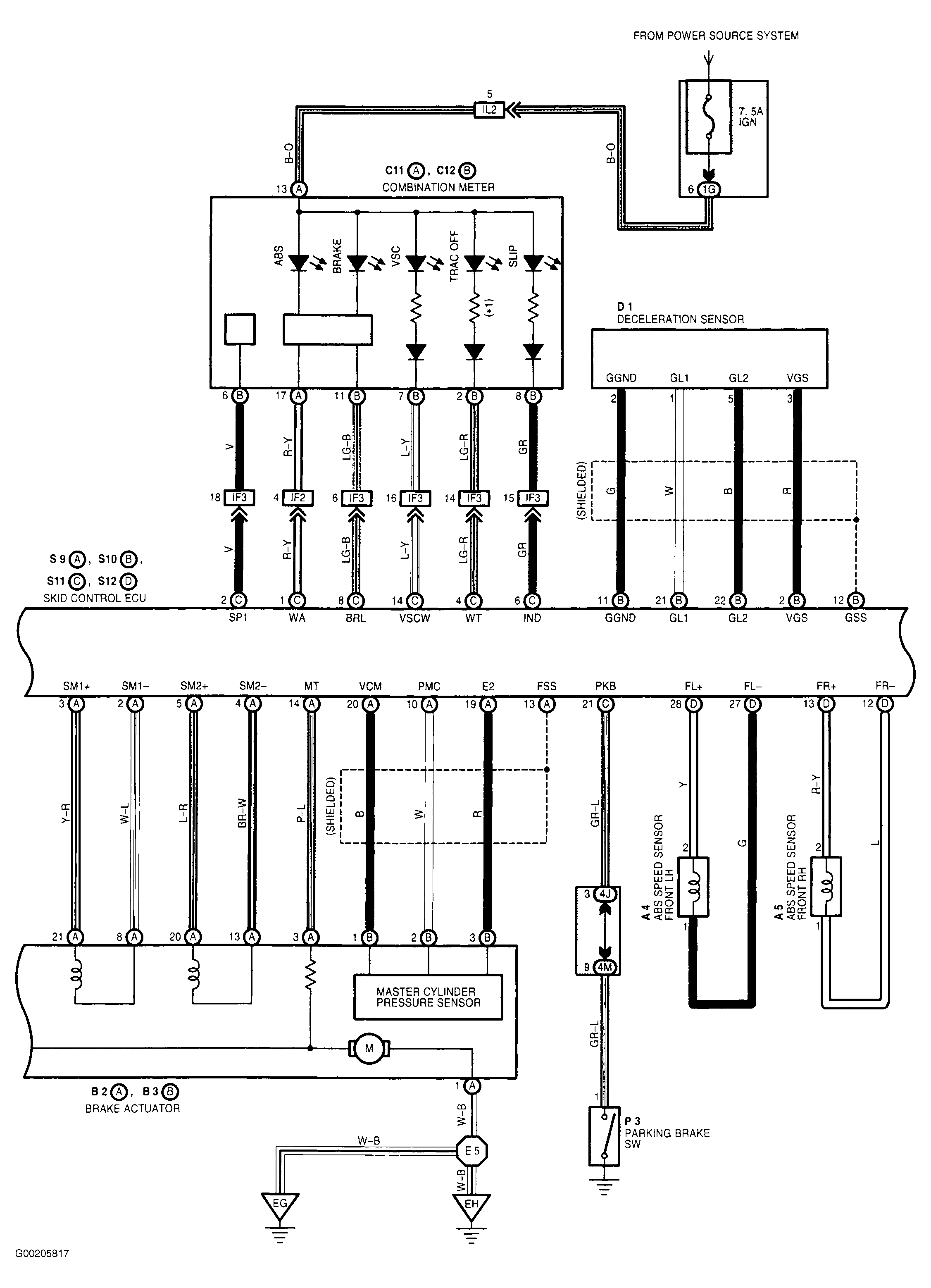

For wiring diagram, see
Figure
-
Figure
. For testing procedures, see
Fig 1
.

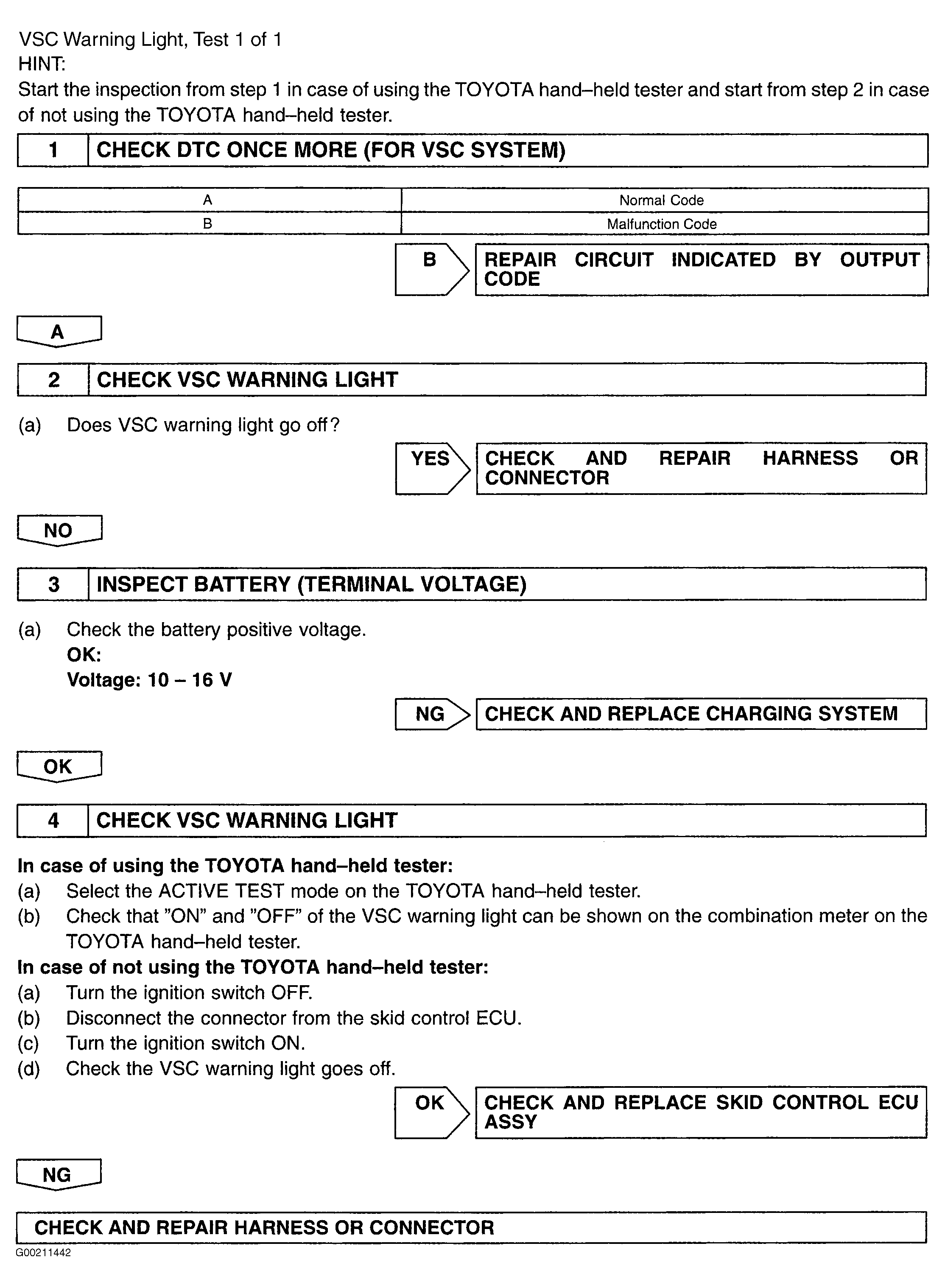

Fig 1: VSC Warning Light Circuit Testing Procedures
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
