Deceleration Sensor (4WD)
CAUTION:
DO NOT apply a voltage of 6 V or more to terminals.

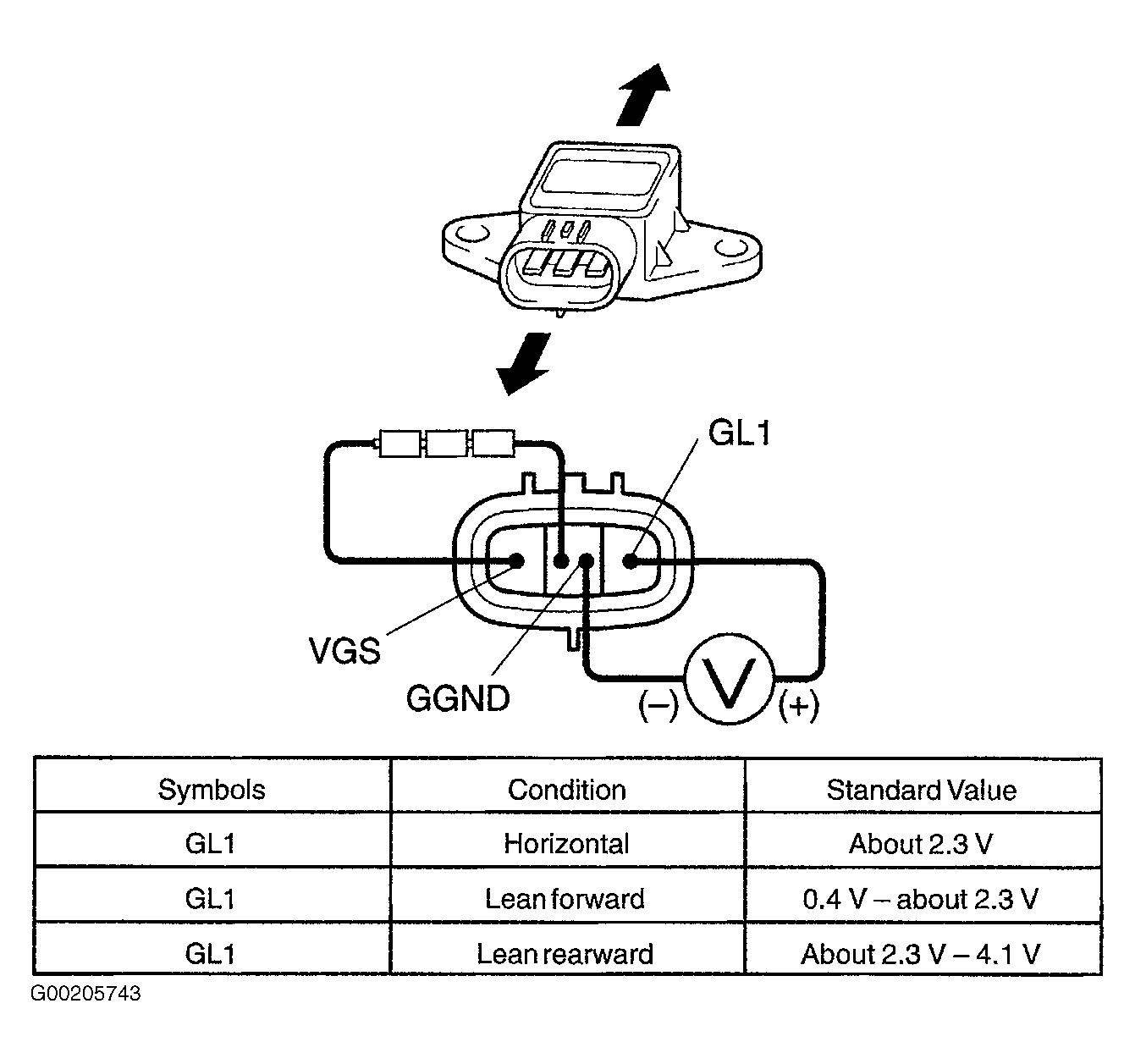

Connect 3 dry batteries of 1.5 V in series. Connect VGS terminal to batteries' positive (+) terminal, and GGND terminal to batteries' negative (-) terminal, apply about 4.5 V between VGS and GGND terminals. See Fig 1. If sensor is tilted too much it may show the wrong value. If dropped, the sensor should be replace with a new one. DO NOT place sensor upside down.
